CEBEK AL-1 Guide Rapide

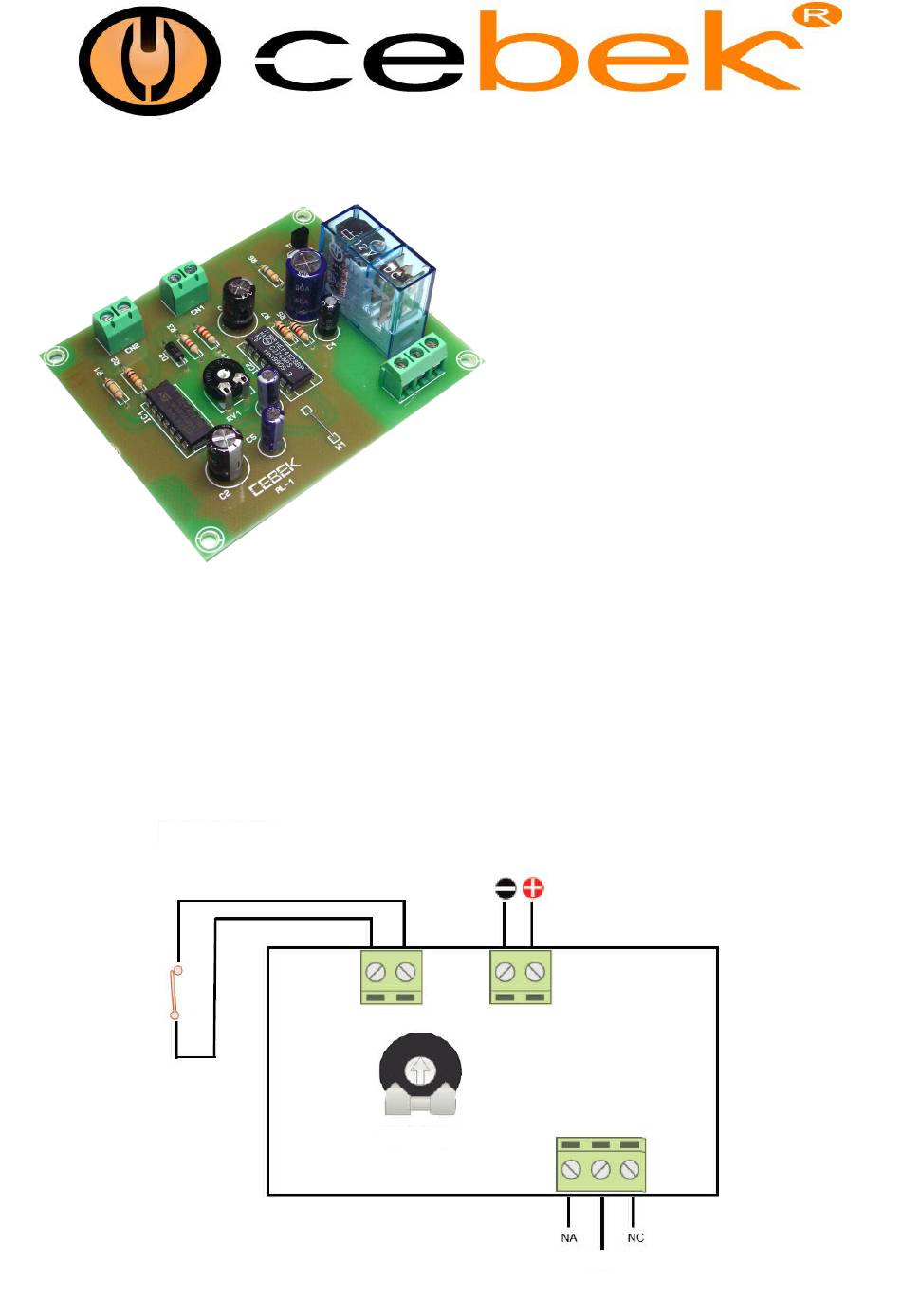

Alarm circuit designed for domestic use based on C-MOS circuits for high immunity to false alarms. The relay output is isolated from
the circuit allowing you to connect any kind of siren or buzzer.
Circuit d'alarme pour les circuits domestiques conçus sur la base de C-Mos haute immunité aux fausses alarmes.
La sortie est en circuit de relais avec isolé qui vous permet de connecter n'importe quel type de sirène ou buzzer.
Circuito de alarma para usos domésticos diseñada en base a circuitos C-Mos de elevada inmunidad a falsas alarmas .
La salida es con relé aislado del circuito lo que permite conectar cualquier tipo de sirena o avisador .
Connection
Alarm
contact
Set time
www.cebek.com - sat@cebek.com
ALARM
ALARME
ALARMA
AL-1
TECHNICAL CHARACTERISTICS
Voltage................................................ 12V DC
Consumption at rest ........................... 6 mA
Consumption alarm ........................ 50 mA
Entry time ........................................... Ajustable 10 to 30 sec.
Time Out..............................................15 sec.
Alarm time.......................................... 3 minuts
Output circuit (relay inverter).............. 2 Amp. to 12V DC
Measures .......................................... 72 x 87 x 30 mm.
Din rail ............................................... C-7566
Power
common
