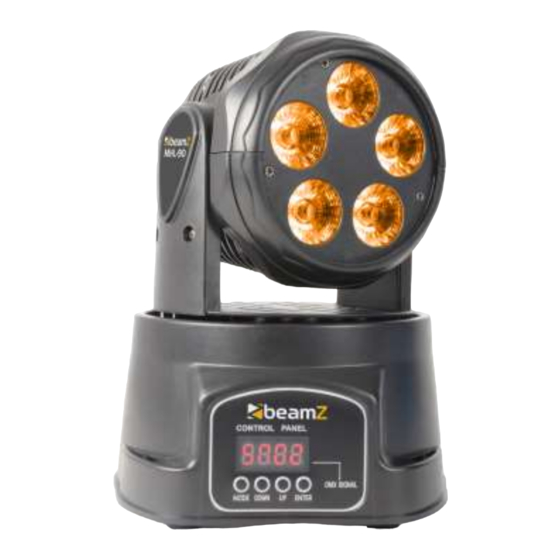

- Page 1 MHL90 Wash 5 x 18W RGBAW-UV 6 in 1 Ref. nr.: 150.530 INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS V1.3...
- Page 2 ENGLISH Congratulations to the purchase of this Beamz fixture. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock.
- Page 3 NEDERLANDS Hartelijk dank voor de aanschaf van dit Beamz armatuur. Neemt U a.u.b. een paar momenten de tijd om deze handleiding zorgvuldig te lezen, aangezien wij graag willen dat u onze producten snel en volledig gebruikt. Lees deze handleiding eerst door alvorens het product te gebruiken. Volg de instructies op anders zou de garantie wel eens kunnen vervallen.
- Page 4 DEUTSCH Vielen Dank für den Kauf dieses Beamz gerat. Nehmen Sie sich einen Augenblick Zeit, um diese Anleitung sorgfältig durchzulesen, damit sie die Möglichkeiten, die unser Produkt bietet, sofort voll ausnutzen können. Lesen Sie erst die Anleitung vollständig vor der ersten Inbetriebnahme durch. Befolgen Sie die Anweisung, da sonst jeglicher Garantieanspruch verfällt.
- Page 5 ESPAÑOL Enhorabuena por la compra de este efecto de luces Beamz. Por favor lea atentamente este manual antes de usar el aparato para disfrutar al completo de sus prestaciones. Seguir las instrucciones le permite no invalidar la garantía. Tome todas las precauciones para evitar que se produzca fuego o una descarga eléctrica.
- Page 6 FRANÇAIS Nous vous remercions d’avoir acheté un appareil Beamz. Veuillez lire la présente notice avant l’utilisation afin de pouvoir en profiter pleinement. Veuillez lire la notice avant utilisation. Respectez impérativement les instructions afin de continuer à bénéficier de la garantie.
- Page 7 UNPACKING INSTRUCTION CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling.
- Page 8 HOW TO CONTROL THE UNIT Item Sq No. Display Function ① MENU Enter the menu ② DOWN Previous option Button: ③ Next option ④ ENTER Conform the selection ⑤ function DMX signal ⑥ Auto mode DMX signalinput ⑦ ⑧ Audio signal Master mode Press the MENU button, to choose a function.
- Page 9 C. MASTER/SLAVE MODE Connect the lights in series, the first light controls the other lights when an auto show or sound controlled show is running on the first light. It’s very good for the instant show mode. Connect a DMX cable between the 1 light (DMX OUT) to the 2 light (DMX IN) etc.
- Page 10 DMX-512 CONNECTION If you are using a standard DMX controller, you can connect the DMX-output of the controller directly to the DMX-input of the first unit in a DMX-chain. Always connect the output of one unit with the input of the next unit until all units are connected. If you use a controller with 5 pin DMX connection you will need to use a 5-pin to 3-pin adapter.
- Page 11 DMX CHANNELS / DMX KANALEN / DMX-KANÄLE / CANALES DMX / CANAUX DMX 11 Channels Channel Function Value Description 000-255 Pan movement TILT 000-255 Tilt movement 000-007 Turn off 008-015 LED quick start 016-131 Strobe, from slow to fast 132-139 LED quick start 140-181 Slow start, quick close...
- Page 12 15 Channels Channel Function Value Description 000-255 Pan movement 000-255 Pan fine adjustment 000-255 Tilt movement TILT 000-255 Tilt fine adjustment Pan / Tilt Speed 000-255 X/Y rotation speed, from fast to slow Dimming 000-255 Dimming 0-100% Turn off 000-007 LED quick start 008-015 Strobe, slow to fast...
- Page 13 7602 KM – ALMELO +31(0)546589299 +31(0)546589298 The Netherlands Product number: 150.530 Product Description: MHL-90 Wash 5x 18W RGBAW-UV 6 in 1 Trade Name: BEAMZ Regulatory Requirement: EN 60598-1:2008+A11:2009 EN 60598-2-17:1989+A2:1991 EN 621471 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2013 EN 55015:2013 EN 61547:2009 The product meets the requirements stated in Directives 2006/95 and 2004/108/EC and conforms to the above mentioned Declarations.
- Page 14 Specifications and design are subject to change without prior notice.. www.tronios.com Copyright © 2015 by TRONIOS the Netherlands...
