ASSEMBLY INSTRUCTIONS
3

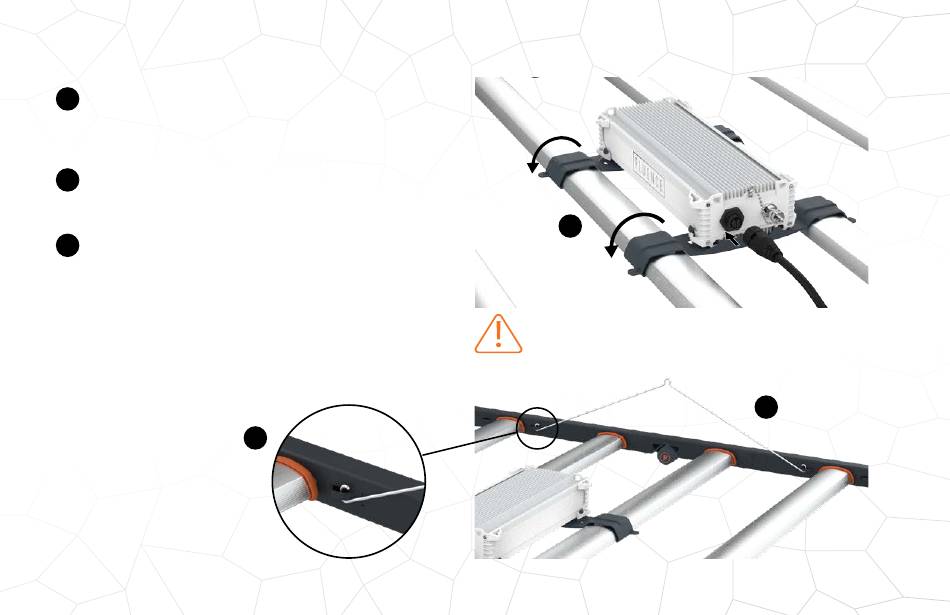

Flip the power supply, center it on the fixture, and gently click the
brackets onto the light bars Use the flanges of the bracket for this
DO NOT push on the power supply directly to assemble brackets
Plug the cable from the light fixture onto the power supply
4
Identify two points on the structure that align with center hinges
on the SPYDR module Hang the lance hangers (D) to the support
structure above the center hinges
5
On the inside of the SPYDR module there are four lancet openings
The lance hanger will slide into the inside two lancet openings
Place lance hanger under opening, and gently pull the hanger up
from the center of the hanger until the loops snap into place
Once both hangers are in place, use two people to lift the fixture to
the installed hanging hardware Be sure to hang from the center of
the lance hanger to ensure a balanced fixture
5
"CLICK"
3
"CLICK"
DO NOT push directly on power supply to attach to the
two center light bars. Use the clips on the corner of the
bracket to the two center light bars.
4
