POWER METER MAP4-DC9
Operation guide
Thank you for purchasing this device from Lettel®. For your convenience
and safely, correctly and efficiently use of this product, please read this
operation guide carefully and pay attention to following points when
using this product.
Please refer to complete instruction manual for more information.
1. Safety instructions
The device must be installed
professionals;
The input signal and power supply must be cut off before
any internal or external operation of the device,
A suitable voltage detection device must be always used to
confirm that there is no voltage at all parts of the device.
2. Warranty
2.1 Warranty period
Lettel® products warranty is valid 3 years starting from the
delivery date. Please refer to our General Sales Conditions
for exact application terms.
2.2 Warranty disclaimer
Warranty is void if inappropriate installation or use of the device, or if
the instructions described in this manual are not correctly followed.
3. Electricians and final user experience
Lettel® products are designed and manufactured to meet the
requirements of the electricians and final users. If this device does not
fully satisfy you, please contact our customer service to describe the
reason, to allow our company to improve products and services.

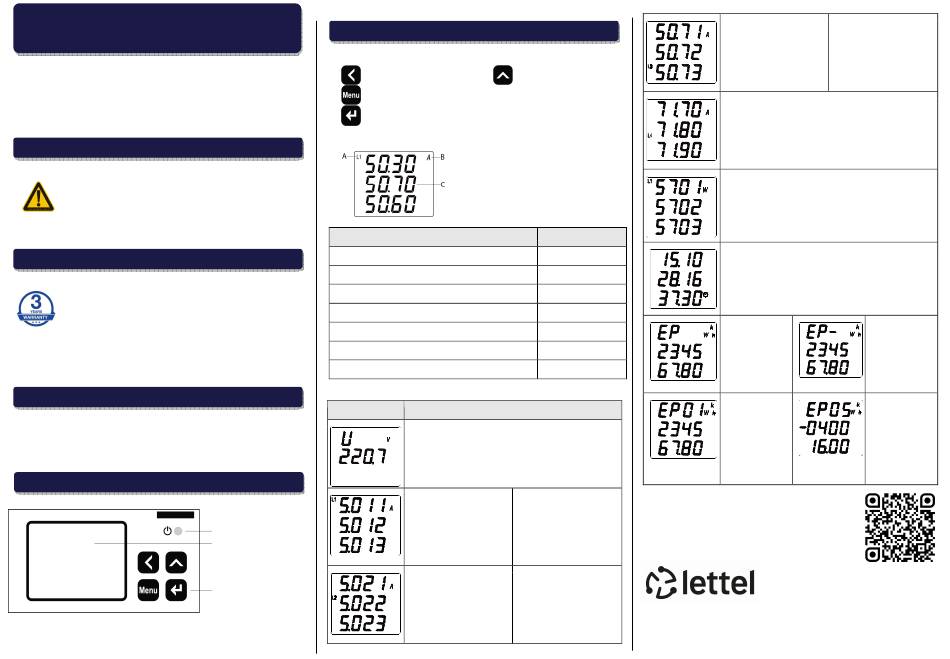

4. Panel
5. Operation
5.1 Button functions
Go to previous page
Reserved to setting mode
Reserved to setting mode
5.2 Display
and maintained by
A. Circuit indication sign
"L1" in static mode
"L2" in static mode
"L3" in static mode
"L1" in flashing mode
"L2" in flashing mode
"L3" in flashing mode
"L4" in flashing mode
Unit and magnitude
B:
Display
Power supply LED
LCD display
Keys
Go to next page
Circuit indication
A:
the device can measure
twenty one single
circuits at most, indicated on the
display as bellow :
Relative circuits
1, 2, 3
4, 5, 6
7, 8, 9
10, 11, 12
(with MM4-DC12 module)
13, 14, 15
(with MM4-DC12 module)
16, 17, 18
(with MM4-DC12 module)
19, 20, 21
(with MM4-DC12 module)
Data
C:
Description
1. Real time voltage
U = 220.7 V
2. Real time current x1 3. Real time current x4
I1＝5.011A (L1 flashing)
I2＝5.012A I10＝5.011A
I3＝5.013A I11＝5.012A
I12＝5.013A
4. Real time current x2 5. Real time current x5
I4＝5.021A (L2 flashing)
I5＝5.022A I13＝5.021A
I6＝5.023A I14＝5.022A
I15＝5.023A
6. Real time current x3
I7＝50.71A
I8＝50.72A
I9＝50.73A
8. Real time current x7
(L4 flashing)
I19＝71.7A
I20＝71.8A
I21＝71.9A
9 to 15. Same as pages 2 to 8 for active power
phase
26. Day & time
The left picture shows 15(year), 10(month), 28(day),
16(hour), 37(minute),30(second)
Total imported
active energy
xx
= Circuit
EP
indication. Left
picture shows
imported
active energy
of circuit 01.
More information on the website product page =>
Visit our website lettel.fr
Tel: +33 (0)1 84 60 40 25
Paris France - SAS au Capital de 100.000 Euros
RCS Paris 901237933 - Subject to changes without notice – Édition 04.2022
7. Real time current x6
(L3 flashing)
I16＝50.71A
I17＝50.72A
I18＝50.73A
Total exported
active energy
xx
= Circuit
EP
indication. Left
picture shows
exported active
energy of
circuit 05.
