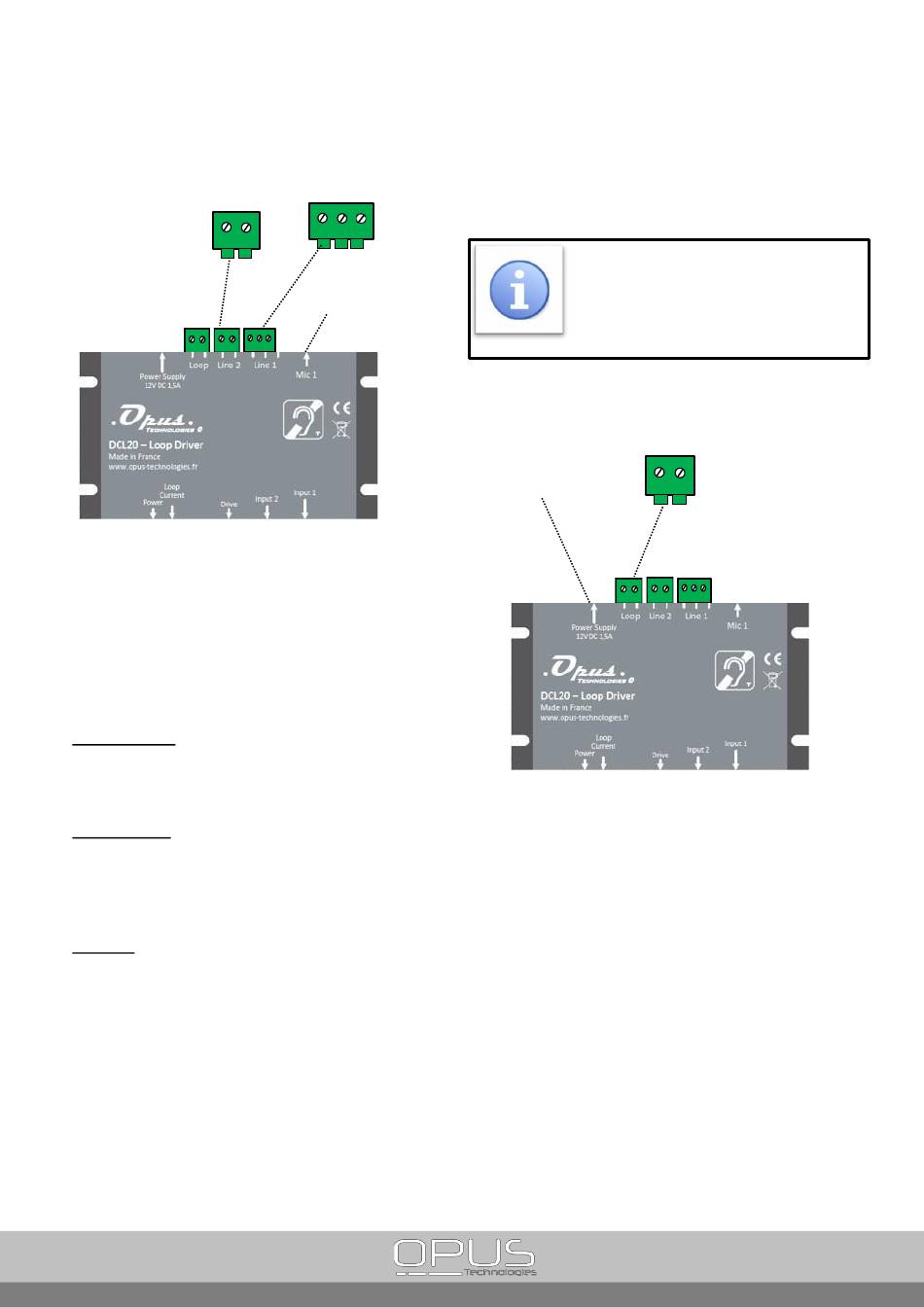

4. Connections andsettings

4.1 audio connection
Ligne / Mass
To connect the supplied microphone with the kit,
insert the 3.5 jack into the microphone input 1.
Connecting to an intercom or specific source:
Connect your source to input 2 of the DCL20.
This input supports the following sources: line,
low impedance and 100V with an adapter.
Micro input1:
Type : Jack 3,5
Feature: phantom power
Input ligne 1:
Type: Terminal Block
Input type: Line or microphone, screwconnec-
tion.
Input 2:
Type: Terminal Block
Input type: Line /low impedance/ 100V withan
adapter.

4.2 Loop and powerconnection

Connect the loop cable to the "Loop" input on
the DCL20.
micro / Ligne /Mass
Jack3,5
Power supply: Connect the power supply from
the kit to the "Power supply" input.
Note:
Loop input does not impose any sense
of connection
AC / DCconnector
5 x 2,1mm
