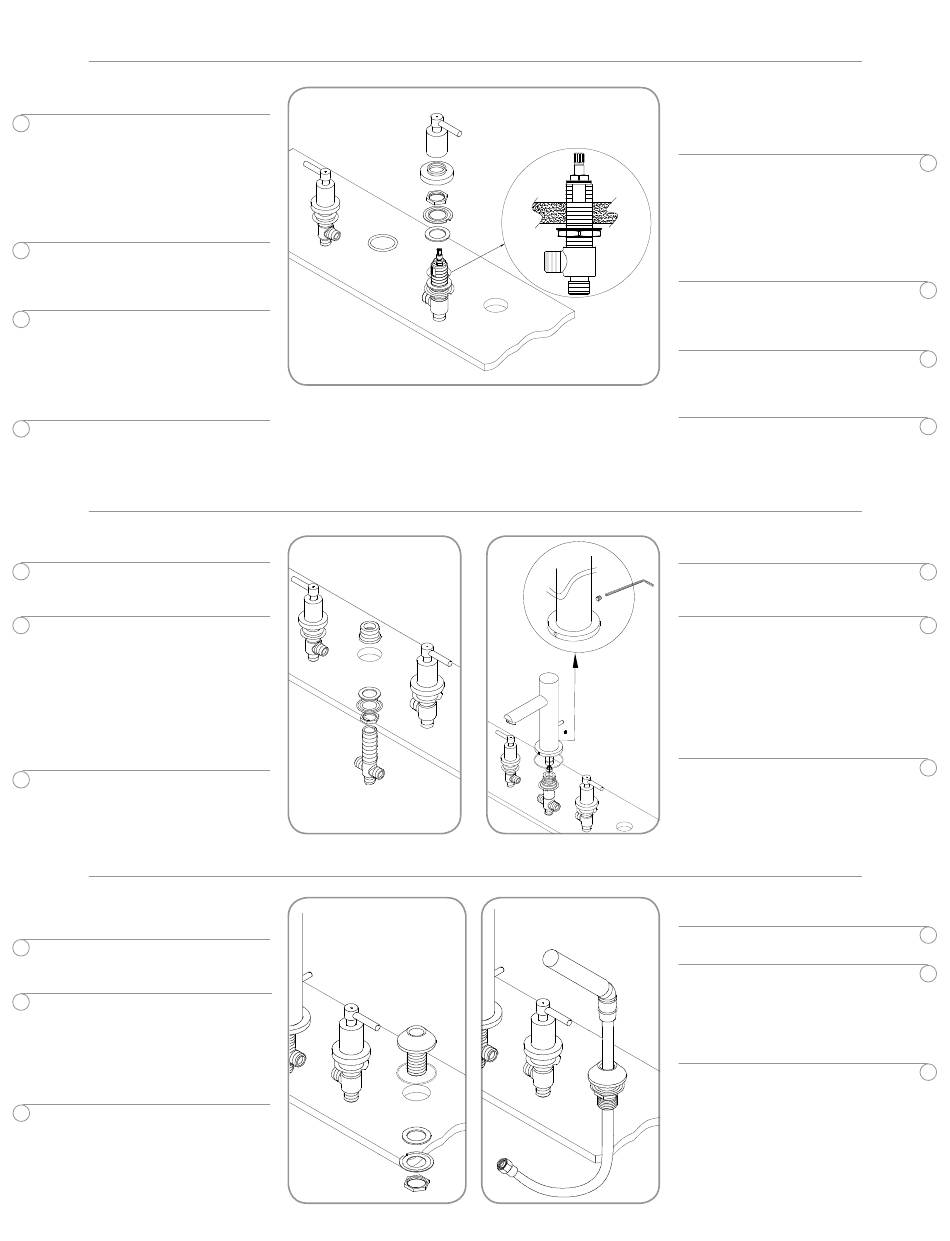

Étape 1
Installation des poignées
1
Désassembler la poignée d'eau froide
(identifiée par un petit point bleu).
Laisser en place l'écrou de retenue
du bas ainsi que la rondelle de métal
et celle de caoutchouc. Insérer par le
dessous du bain, la valve d'eau froide
(identifiée par un C) dans le trou se
situant à droite de celui du bec.
2
À l'aide de l'écrou, ajuster la hauteur
de la valve pour que le bas de la partie
aplatie des filets soit alignée avec le
dessus du bain.
3
Par le dessus, installer la rondelle
de caoutchouc puis celle de métal
restantes. Visser l'écrou de retenue
pour retenir la valve en place.
Visser la bride de la poignée par dessus
l'écrou puis visser la poignée par dessus
la bride.
4
Répéter les étapes précédentes afin
d'installer la poignée et la valve d'eau
chaude (identifiée par un H) dans le trou
se situant à gauche de celui pour le bec.
Étape 2
Installation du bec
1
Dévisser la vis Allen à l'arrière du bec.
Séparer le bec et son raccord en tirant
très fort sur ce dernier (ne pas dévisser).
2
Dévisser l'écrou supérieur du raccord
du bec. Assurez-vous que l'écrou de
retenue ainsi que les rondelles de
métal et de caoutchouc soient en place
sur le raccord du bec, puis en passant
par le dessous du bain, insérer le
haut du raccord dans le trou entre les
deux poignées. Par le dessus du bain,
revisser l'écrou supérieur afin de fixer le
raccord en place.
3
Placer le joint torique sous la garniture
d'écrou et réinstaller le bec sur le
raccord en prenant soin d'insérer la tige
d'arrêt dans le trou d'arrêt. Fixer le bec
en revissant la vis Allen derrière le bec.
Étape 3
Installation du support de douche à
main
1
Dévisser l'écrou du bas, ainsi que
la rondelle de métal et celle de
caoutchouc.
2
Insérer le support de la douche à main
dans le trou en prenant soin de mettre
en place le joint torique sous le support.
Par le dessous, insérer la rondelle de
caoutchouc, celle de métal puis l'écrou
de retenue et visser le tout afin de
retenir en place le support.
3
Raccorder le tuyau à la douche à
main en vérifiant que la rondelle de
caoutchouc soit en place. Par le dessus
glisser le tuyau dans le support afin de
déposer la douchette sur son socle.
Handle installation
Disassemble the cold water handle
(identified by a blue dot).
Leave the bottom retainer ring as well
as the rubber and metal washers in
place. From under the bathtub insert
the cold water valve (indentified by a C)
in the hole located on the right of the
spout hole.
Using the nut, adjust the height of the
valve so the bottom of the flattened part
of the threads is aligned with the top of
the bathtub.
From the top, install the remaining
rubber and metal washers. Screw the
nut to secure the valve, handle flange
and handle in place.
Repeat steps to install the handle and
hot water valve (identified by an H)
in the hole located on the left of the
spout hole.
Spout installation
Unscrew the Allen screw from behind
the spout. Pull apart the spout from its
connector (do not unscrew)
Unscrew the superior spout nut of the
spout connector. Make sure that the nut
and the metal and rubber washers are
in place on the spout connector. From
underneath the bathtub, insert the top
of the connector in the hole between
the two handles. From over the bathtub,
screw the superior spout nut to secure
the connector in place.
Place o-ring underneath the spout flange
and reinstall the spout on the anti-turn
pin, making sure to insert the stop rod in
the stop hole. Tighten spout in place by
screwing the Allen screw behind
the spout.
Hand shower holder installation
Unscrew the bottom nut and take off
metal and rubber washers.
Insert the hand shower holder in the
hole making sure to place the o-ring
underneath the fix holder. From under,
screw the rubber and metal washers,
as well as the retainer ring to the holder
in place.
Connect the hose to the hand shower,
making sure that the rubber washer is
in place. From above, slide the hose
through the holder to sit the hand
shower on its base.
Step 1
1
2
3
4
Step 2
1
2
3
Step 3
1
2
3
