ENGLISH
INDEX
DESCRIPTION ................................................................................................................................................ 8
INSTALLATION ............................................................................................................................................... 9
TERMINALS .............................................................................................................................................. 10
PROGRAMMING .......................................................................................................................................... 10
MASTER PASSWORD PROGRAMMING PROCEDURE .......................................................................... 10
ACCESSING PROGRAMMING MODE ..................................................................................................... 11
RELAY OPTIONS PROGRAMMING PROCEDURE .................................................................................. 11
ACTIVATION CODE STORAGE PROCEDURE ......................................................................................... 11
DELETING AN ACTIVATION CODE .......................................................................................................... 12
SETTING A PASSWORD FOR CHANGING ACTIVATION CODES ONLY ................................................ 12
CHANGING A PREVIOUSLY STORED ACTIVATION CODE .................................................................... 12
TIMESLOT TERMINAL PROGRAMMING PROCEDURE .......................................................................... 13
DEVICE RESET (TO RESTORE DEFAULT SETTINGS) ................................................................................ 13
DEFAULT SETTINGS.................................................................................................................................... 13
SPECIFICATIONS ......................................................................................................................................... 13
WIRING DIAGRAM ....................................................................................................................................... 34
NOTES ON DIAGRAMS ............................................................................................................................ 35
DESCRIPTION
The access control keypad Ref. 1723/46 has the following features:
•
Possibility of managing two entrances with two relay door lock contacts which may be operated
independently using either of the programmed codes.
•
22 programmable user codes.
•
Time management using input "H".
•
Programmable door lock activation time for each of the two relays.
•
Possibility of programming the two relays for monostable or toggle operation.
•
Relay activation by means of two normally open buttons connected to inputs "A1" and "A2" (hall
buttons).
•
12 back-lit LED buttons (numbers from 0 to 9 white
•
Sound feedback by means of buzzer.
Button
lights up red during parameter programming.
(*)
8
All manuals and user guides at all-guides.com
and
blue).
(*)

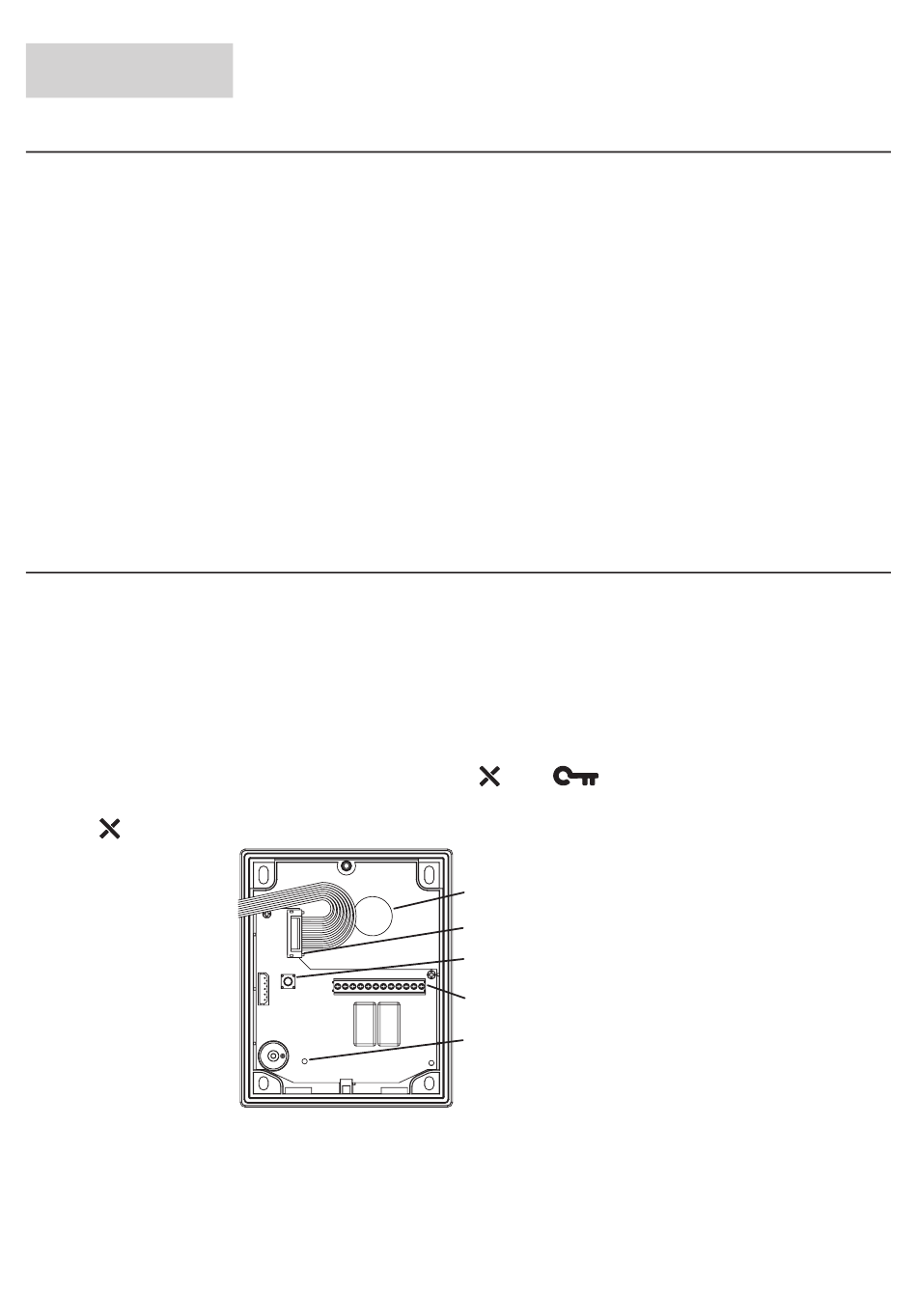

Wire passage
J3 plug
Programming switch SW1
Terminal boards
Green power LED
DS1723-008B
