Danfoss OPTYMA PLUS OP-LPHM018 Instructions page 3

Instructions

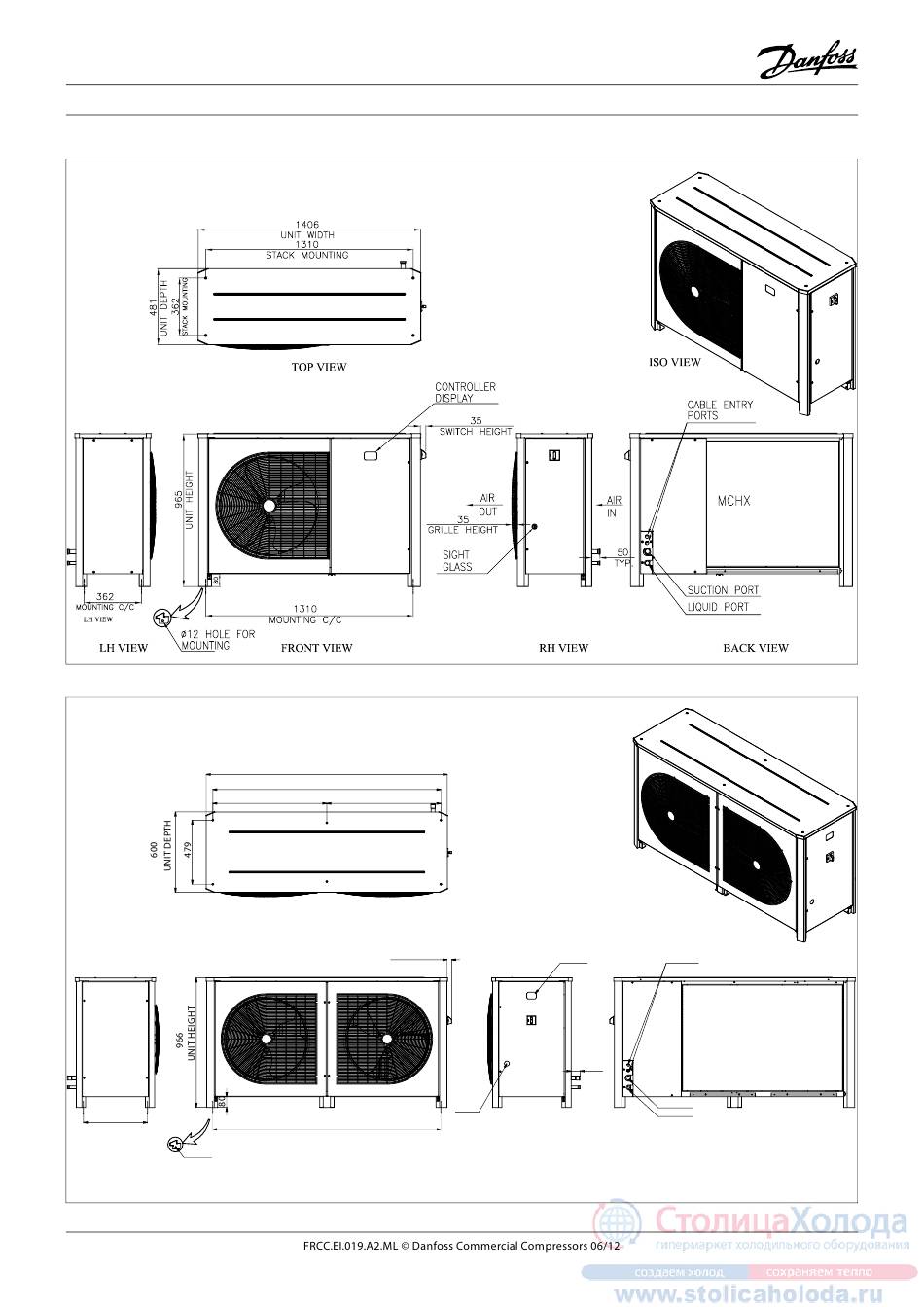

OP-LPHM096-136 & OP-MPUM068-080-107
OP-LPHM215-271 & OP-MPUM125-162
479
MOUNTING C/C
Ø12 HOLE FOR
LH VIEW
MOUNTING
All manuals and user guides at all-guides.com
1800
UNIT WIDTH
1702
851
851
TOP VIEW
35
SWITCH HEIGHT
1702
MOUNTING C/C
FRONT VIEW
CONTROLLER
DISPLAY
50
TYP.
SIGHT
GLASS
RH VIEW
ISO VIEW
CABLE ENTRY
PORTS
MCHX
SUCTION PORT
LIQUID PORT
BACK VIEW
3
