INSTALLATION AND CONNECTION

You can also choose your connection (NO or NC) in order to optimize your electrical consumption
The electrical consumption of the relay varies according to its status (ON or OFF) :
- ON : <0,60W
- OFF :< 0,08W
For a 2 hours light activation per day, it is better to choose a NO connection (3W= 22H x 0,08W + 2H
x 0,6W), than a NF connection (13,4W =22H x 0,6W + 2H x 0,08W)

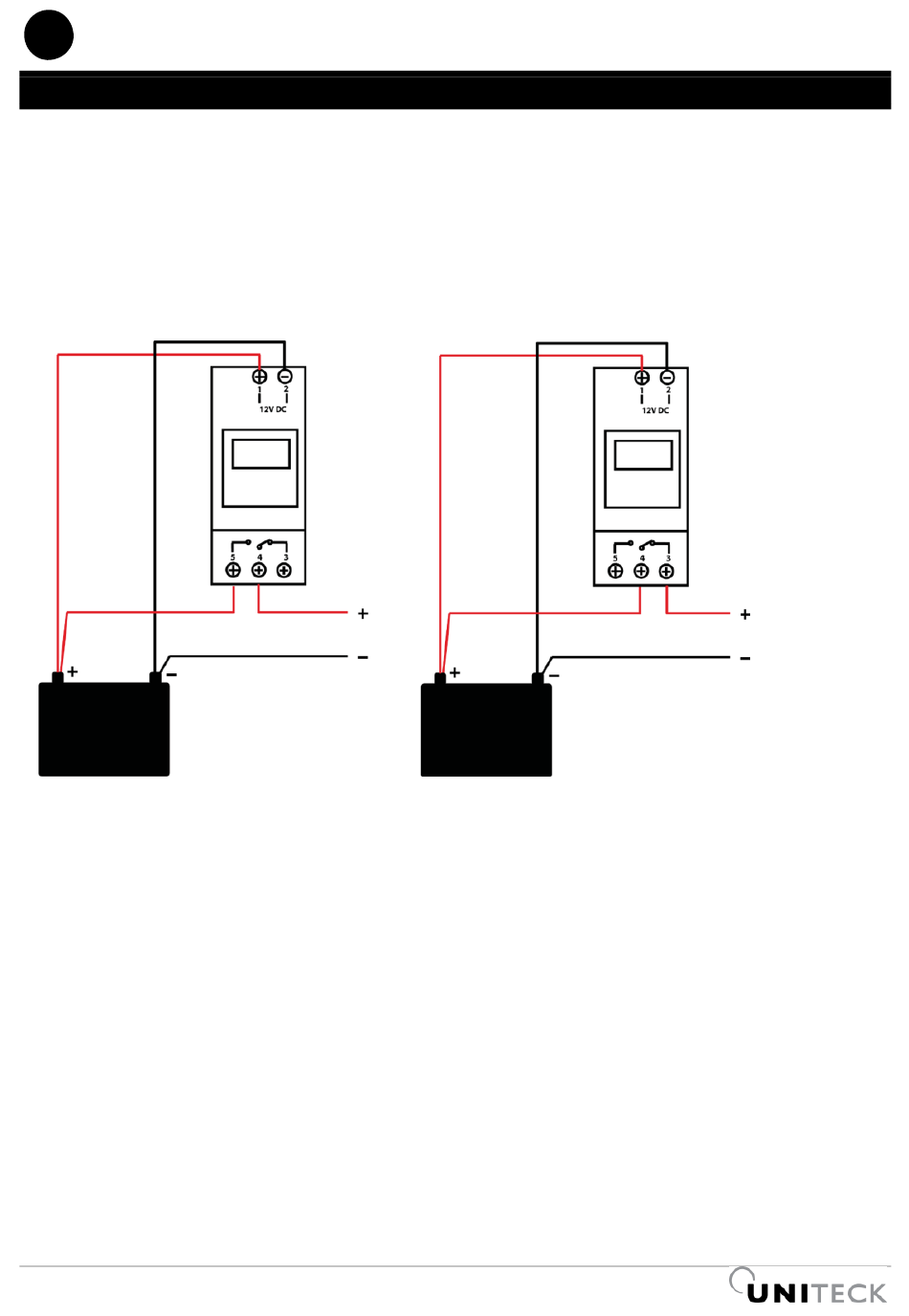

WIRING DIAGRAM

Normally open (NO)
10/22
All manuals and user guides at all-guides.com
www.uniteck.fr
Normally closed (NC)
electrical
device
(alarm,
watering...)
