EN
10

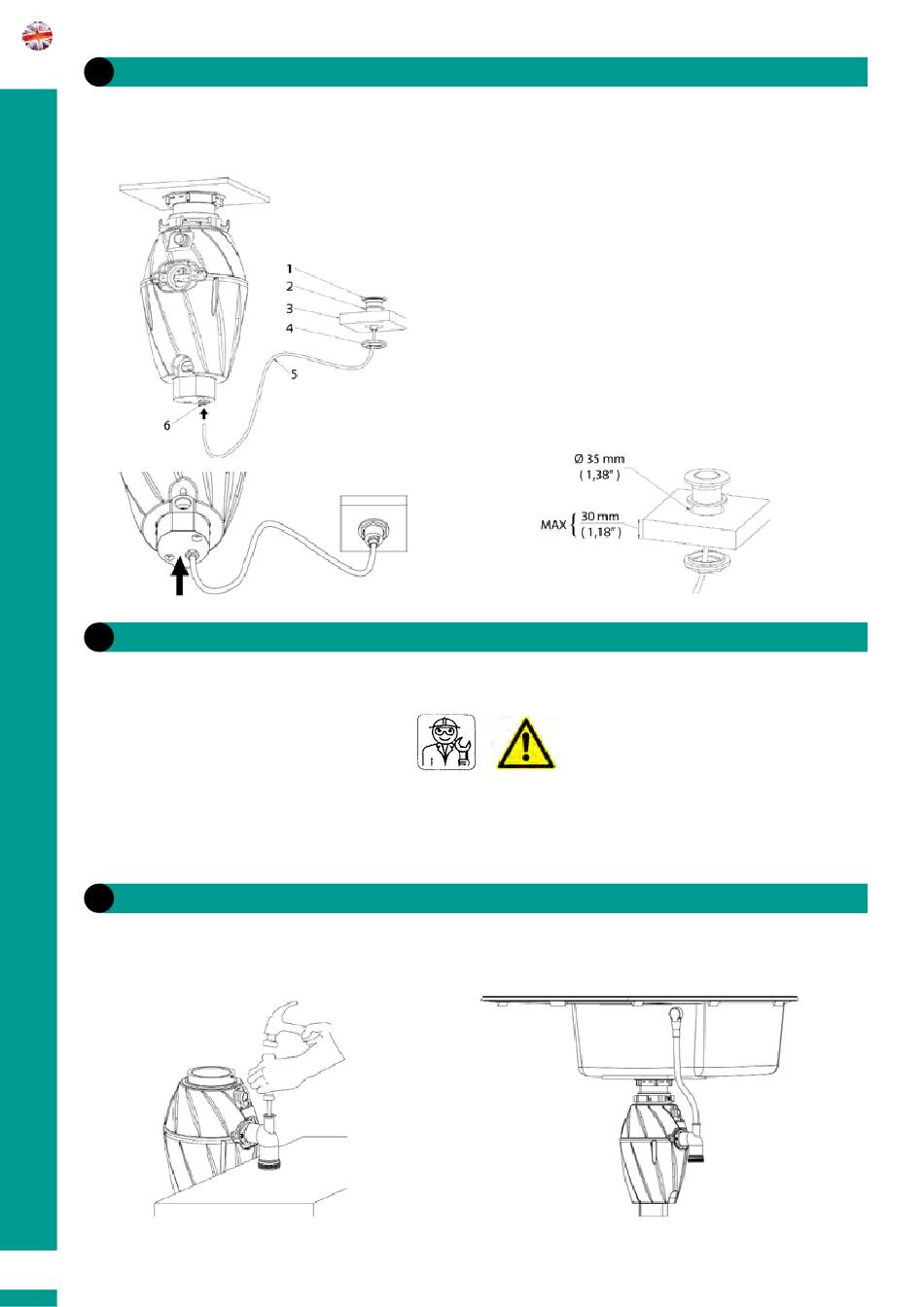

For installation of the food waste disposer START - STOP pneumatic push button follow the connection
diagram shown in the figure:
11.
Every intervention must be carried out by a qualified professional in accordance with the applicable rules and
regulations on injury prevention.
The user must prepare a proportioned water supply line
Characteristics of the water supply source:
- pressure: 1 - 1,5 Bar (100 -150 kpa)
12.
Before connecting the sink overflow drain piping, using a screwdriver and a hammer, remove the diaphragm
on the drain elbow.
Removal of the diaphragm
23

BUTTON SWITCH INSTALLATION

WATER AND DRAINAgE CONNECTION

- capacity : 8 - 20 L/min

OVERFLOW CONNECTION

Example of sink overflow drain connection
1. Pneumatic push button
2. Gasket
3. Connection surface (sink edge/surface)
4. fixing ring nut
5. Pipe
6. Pipe fitting
