First Alert ADK Installation

INSTALLATION OF ADK
ADAPTER PLUG
ELECTRICAL SHOCK HAZARD. Turn off power to the area where you
will install this unit at the circuit breaker or fuse box before beginning
installation. Failure to turn off the power before installation may result
in serious electrical shock, injury or death. Do not restore power until
all Smoke Alarms are completely installed.
• Installation of this unit must conform to applicable codes: Canadian
Electrical Code, National Building Code of Canada, National Fire
Code of Canada and provincial and local requirements. Wiring and
installation must be performed by a licensed electrician. Failure to
follow these guidelines may result in injury or property damage.
• This unit must be powered by a 24-hour, 12VAC pure sine wave 60Hz
circuit. Be sure the circuit cannot be turned off by a switch, dimmer,
or 24-hour circuit may prevent it from providing constant protection.
For all other Smoke Alarm information, instructions and warnings,
refer to the Smoke Alarm User's Manual.
COMPATIBLE BRK and FIRST ALERT
®
The FIRST ALERT products shown below are compatible and will work
®
with the enclosed Adapter Plug. It is recommended that you replace all existing
alarms with First Alert/BRK Smoke Alarms.
A maximum of 12 smoke alarms and relays can be interconnected.
First Alert / BRK Alarms:
® ®
Smoke Alarms: 3120BA, 7020BSLA, 7010BA, 9120BA, SA520A,
Smoke/CO Alarms: 7030 BSLA, SC7010BA, SC7010BVA, SC9120BA,
SC9120LBLA, 1039723, 1042251

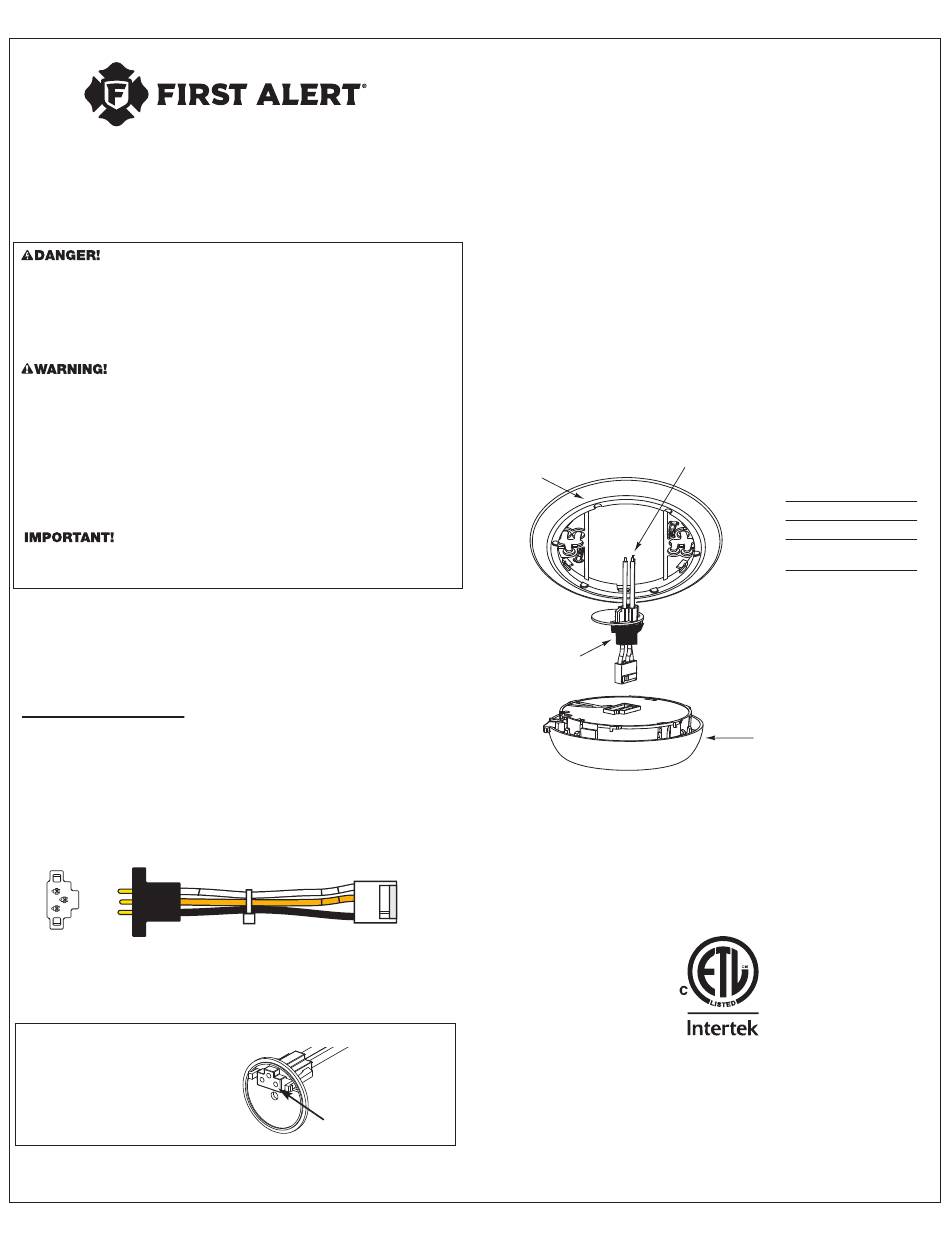

Adapter Plug (ADK) Diagram
Plug Pin View
NOTE: Twist tie should not be removed.
NOTE:
INCOMPATIBLE POWER CONNECTORS:
DO NOT ATTEMPT
INSTALLATION
MODELS
®
Side View
White
Orange
Black
Side View
Kidde
®
NOTE ROUND HOLES
INSTALLATION INSTRUCTIONS
1. Verify which MODELS are installed in your system to determine if they are compatible
with the ADK Adapter Plug (see part C below).
2. Turn off AC power.
3. Remove unit. Remove old mounting bracket.
4. Install new mounting bracket (see part A below).
5. Connect the black end of the ADK Adapter Plug to the existing power connector
(connect part C to part D as shown below).
NOTE: There may not be enough room for the Adapter Plug and additional wiring to fit
in the junction box. If not, the old power connector must be removed and replaced with
a First Alert Power Connector.
®
6. Connect the other end of the Adapter Plug to the appropriate Smoke Alarm
(connect Part C to part B as shown below).
7. Check all connections. Make sure all plugs are completely connected and snapped
together. Ensure the Adapter Plug is securely connected to the existing Power Connector.
8. Install the base of the Smoke Alarm to the mounting bracket.
9. Restore power to the junction box.
10. Test each Smoke Alarm. Press and hold the test button until the unit alarms.
When testing a series of interconnected units you must test each unit
individually. Make sure all units alarm when each one is tested.
THE PARTS OF THIS INSTALLATION
A
C
Refer to the Alarm User's Manual for all other
information, instructions and warnings.
US Patent No.: 6,641,433 B2.
© 2021 BRK Brands, Inc. All rights reserved. Distributed by BRK Brands, Inc.
BRK Brands, Inc. is a subsidiary of Newell Brands Inc. (NASDAQ: NWL)
3901 Liberty Street, Aurora, IL 60504-8122 • Customer Service Team:
(800) 323-9005 • www.firstalert.ca • www.brkcanada.ca
D
A Mounting Bracket
B First Alert
/BRK
®
C ADK Adapter
D Existing compatible power
connector
Electrical Rating:
120V AC, 1A Maximum
Not for Current Interruption
B
RECOGNIZED
COMPONENT
Certified to CSA
Standard
C22.2, 182.3
5009450
Printed in Mexico M08-176823 H 01/21
Alarm
®
