Preparing the devices for use

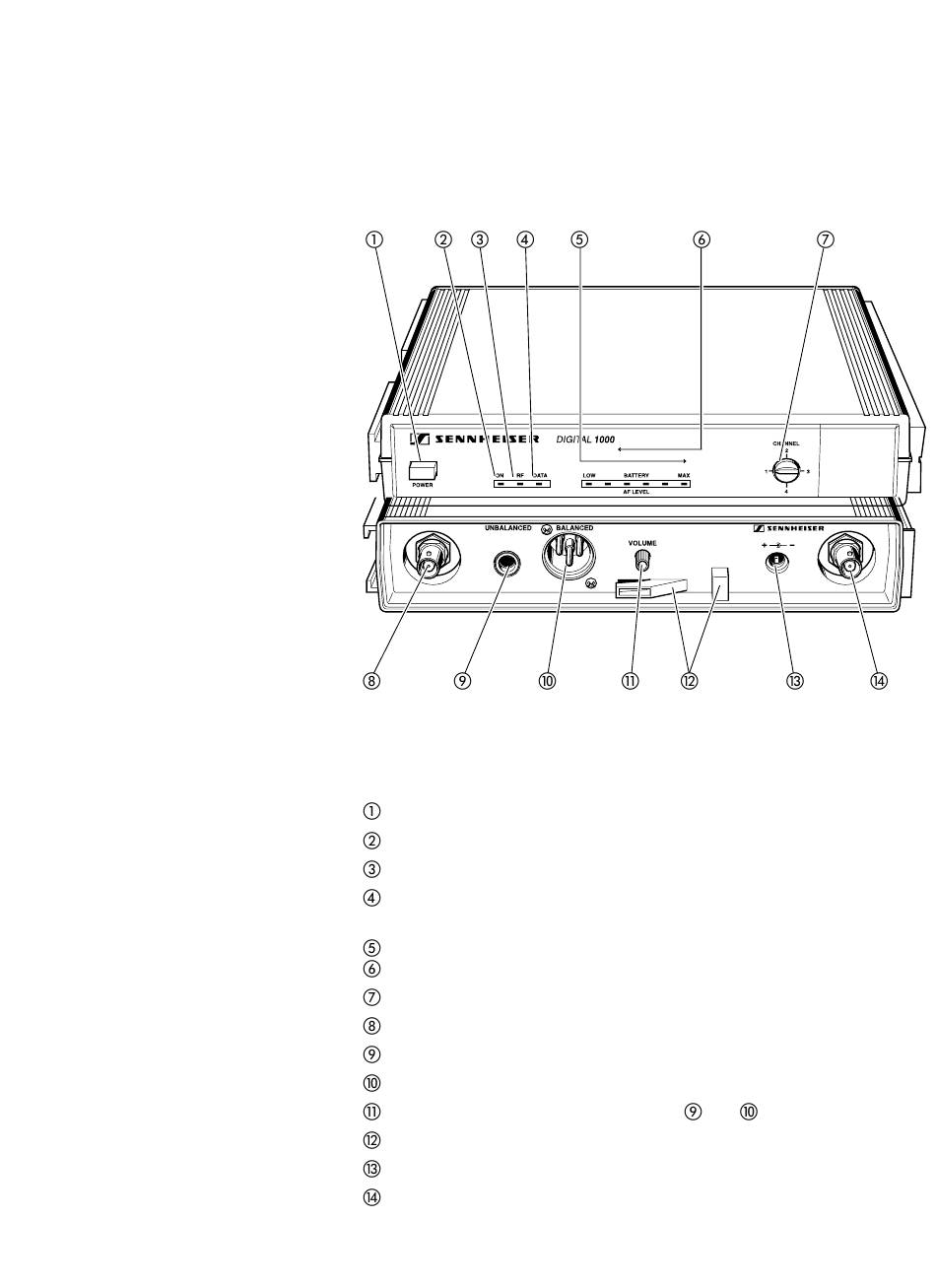

5.1 EM 1090 DIGITAL receiver

POWER button
"Power on/off" control LED
"RF" control LED
"Data" control LED
6-segment level display for
- incoming AF signal
- transmitter battery life
Channel selector switch
BNC socket 1 for connection of additional A 1090 DIGITAL antenna
AF output, unbalanced, 1/4" jack (line level)
AF output, balanced, XLR-3M
AF output level control (for outputs
Cable grip for power supply DC cable
DC socket for connection of mains unit
BNC socket 2 for connection of additional A 1090 DIGITAL antenna
and )
