MultiSync
MultiSync 50, MultiSync 70, XV15 and XV15+

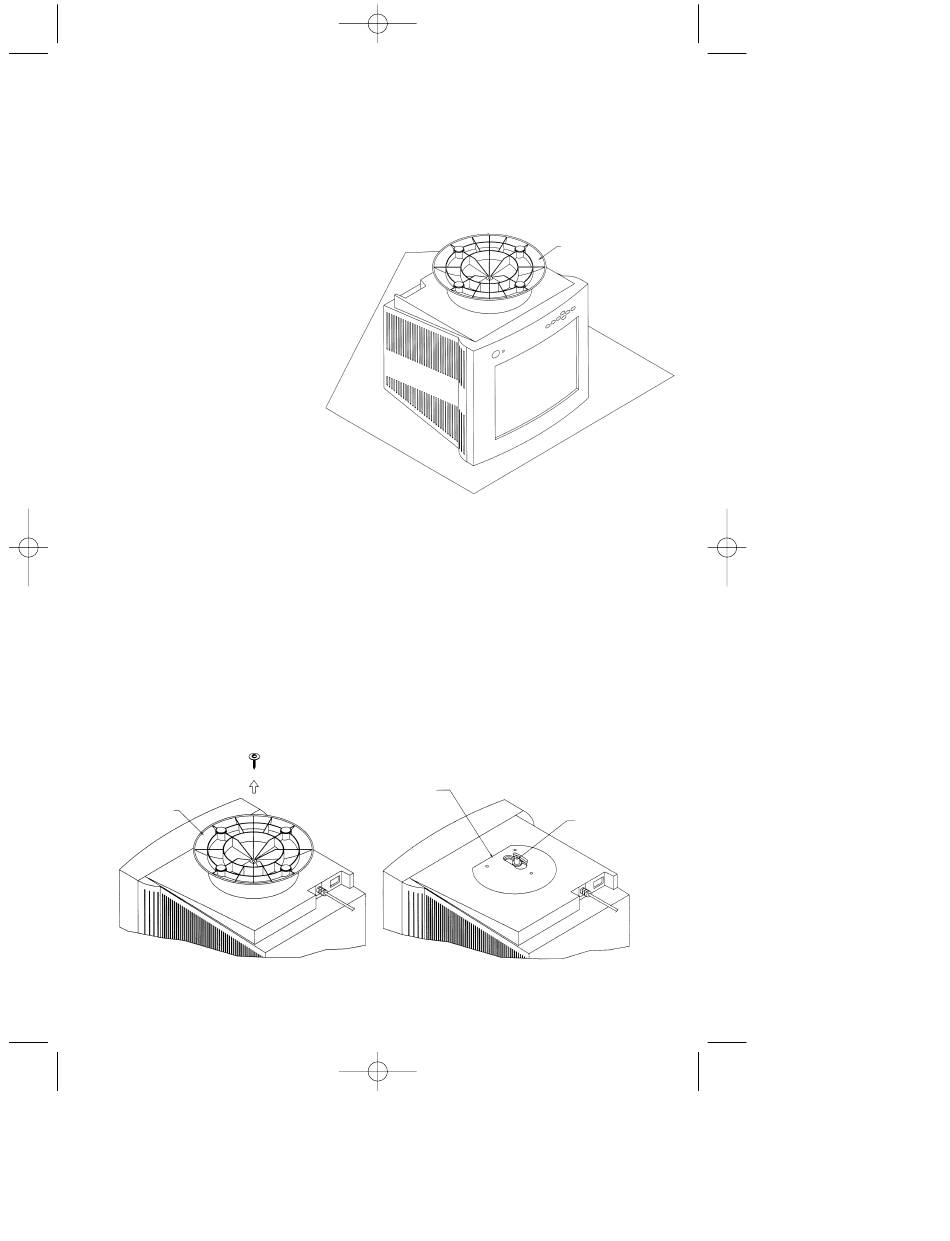

Step 1 With the monitor
unplugged from your
system and the wall
outlet, carefully
turn the monitor
upside down on
a firm table so that
the base is facing
up as shown
in Figure 1.
Step 2 Using a Phillips screwdriver, remove the screw securing the original
base to the monitor as shown in Figure 2A. Remove and save the
original base for possible future use.
Note: Do not remove the spindle or swivel plate.
BASE
Page 7
Monitor Model Names
®
MONITOR IN POSITION TO
REMOVE THE BASE AND ATTACH
INTELLIBASE USB HUB
Figure 1
Figure 2A
DO NOT REMOVE SPINDLE OR
SWIVEL PLATE
SWIVEL
PLATE
3
BASE
SPINDLE
