Project Source F1AAF510CP Manuel D'installation page 8

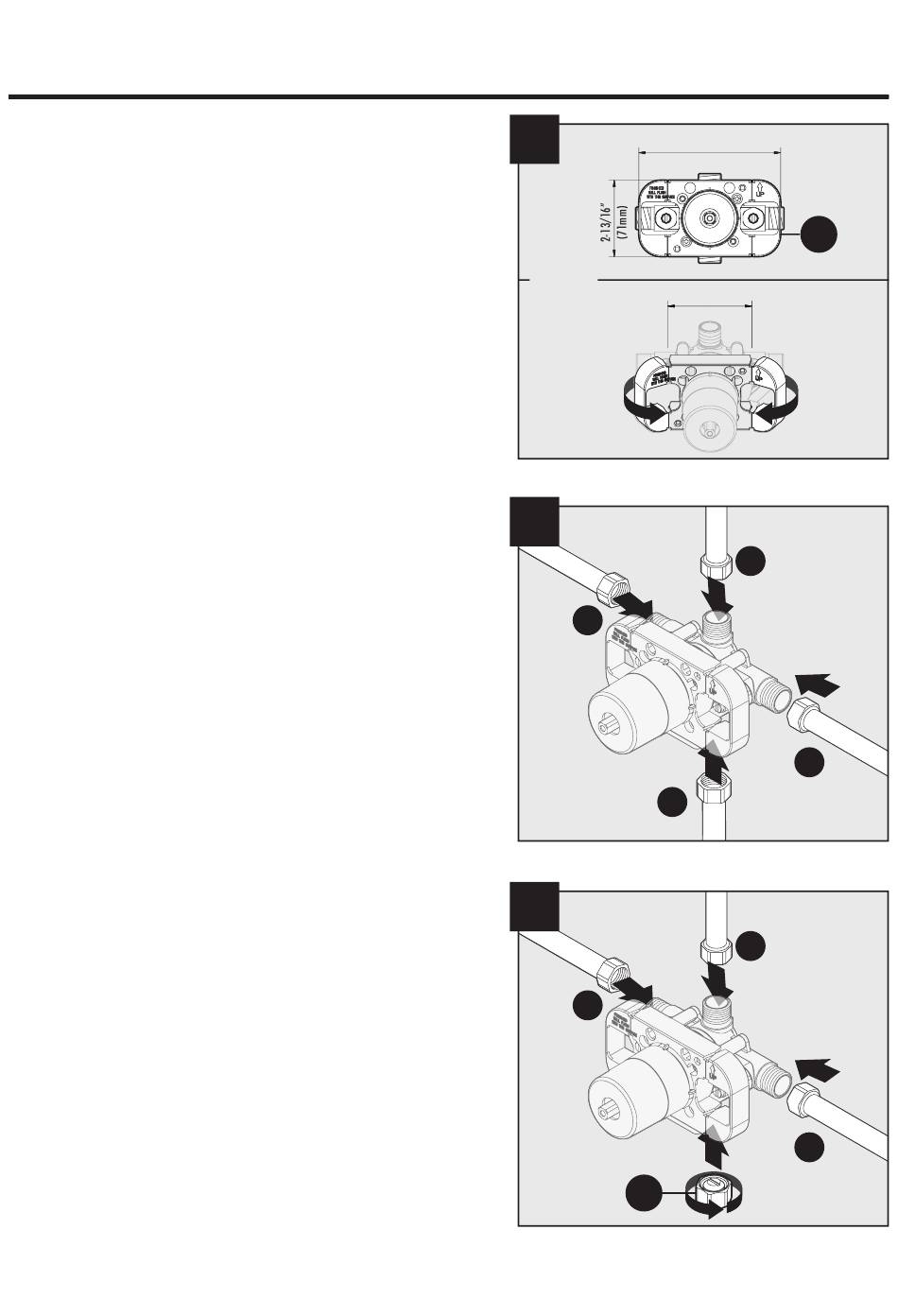

ASSEMBLY INSTRUCTIONS
4. The plaster guard (G) is adjustable to
accommodate the installation needs.
5a. For pipe 4: Use 1/2 in. copper or IPS pipe only.
If soldering connections, cartridge and integral
stops must be removed to avoid heat damage.
Reinstall when connections are completed and
valve has cooled.
5b. Note: Includes a valve plug (J) so fixture can
be used in Shower Only applications.
4
4
OPTION
5a
5a
1
5b
5b
1
8
5-3/16"
(131mm)
3-1/16 in.
77.7mm
3
2
4
3
2
J
G
