GE 15164 Guide Rapide

15164 - 24 HOUR TIME SWITCH
SWITCH: DPST
CONTACT RATINGS:
120-277 V ac, 40 A Resistive, Single Phase
120-277 V ac, 40 A General Purpose, Single Phase
120-277 V ac, 20 A Ballast (Inductive)
120 V ac, 40 A Tungsten
120 V ac, 2HP
240 V ac, 5HP
TIMING MOTOR: 208-277 VAC 60Hz
POWER CONSUMPTION: 3 Watts MAX
H
H
Typical for same voltage in LOAD and MOTOR
• Recommended installation by licensed electrician.
• High Voltage (There may be more that one source of supply) disconnect all power sources
before servicing.
• Risk of electric shock – All terminals are live.
• Use copper wire only.
• Close the cover after setting.
• Tighten connections to 25 lbf-in.
• Use correct gauge wire (8-14 AWG) based on local electrical code of at least 105C rating.
• Approved for outdoor use.
• Wire strip length ½"
• GROUNDING: National Electrical Code requires that grounding must be continuous and
in proper electrical contact in all grounding conductors, metallic conduits and grounding
terminals.
208-277VAC/60Hz
INSTALLATION AND OPERATING INSTRUCTIONS TO SET ON
AND OFF TIMES: Light trippers turn ON. Dark trippers turn OFF.
Place tripper on dial edge as shown in figure and set point of
each tripper to desired operating time. Note if selected time
is AM or PM. Hold tripper against dial edge and firmly tighten
knurled screw.
INSTALLATION AND OPERATING INSTRUCTIONS TO SET DIAL TO
TIME: Turn dial counter-clockwise until correct time is indicated by arrow on nameplate.
FOR TEMPORARY MANUAL OVERRIDE: Press down lever on right of nameplate to turn ON. Press down
lever on left of nameplate to turn OFF. CAUTION: Do not rotate dial for manual override.
TO REMOVE MECHANISM FROM CASE: Press lever near the top of the case, and pull the mechanism
out of the metal box. To replace, insert main plate projections in slots opposite latch and push in
mechanism until it latches.
15164 VERSION 1
03/07/12
WWW.JASCOPRODUCTS.COM

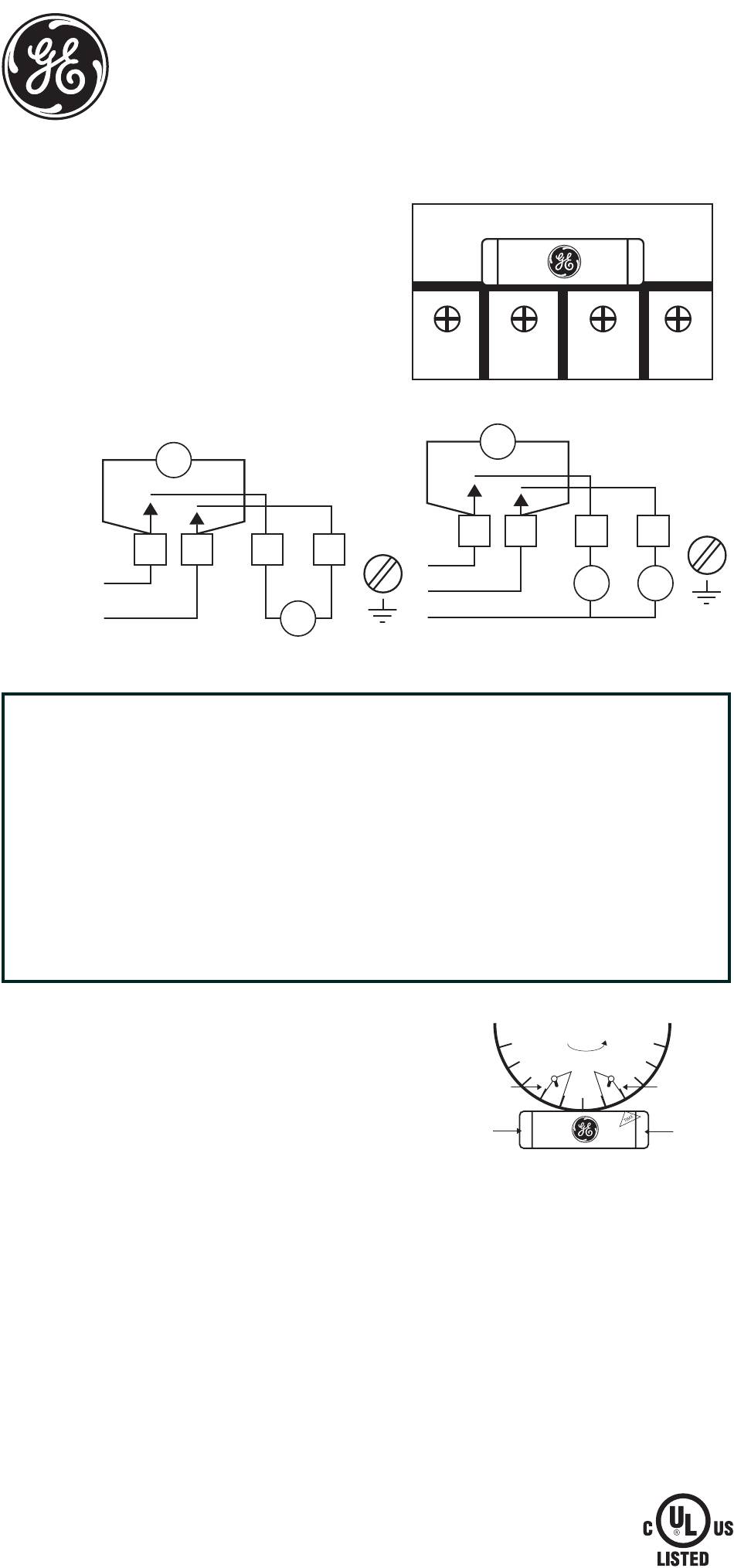

MECHANICAL TIME SWITCH
M
L 1 X
LOAD
L
2
H
H
N
OFF TIME
(Dark Tripper)
MANUAL
CONNECTIONS
O
F
F
1 X
M
L 1 X
LOAD
240V Motor and 120V Load
Dial Calibrations
Knurled Screw
O
F
OFF
F
LEVER
YYWW
GE5366-41K2
O
N
2
2
LOAD
ON TIME
(Light Tripper)
MANUAL
O
ON
N
LEVER
