1.
Remove the battery earth cable.
Demount the rear fog light units
2.
Open the panel under the left side of the back seat, where the wheel brace and jack are located or remove the floorcoverings under the left side
of the back seat. In this space there's a 14-pole connector.
Search the 14-pole connector from the tail lights, and disconnect it.
Put a hole in the prepared rubber plug.
Route the wiringharness from the inside over the girder to the socket plate.
Fit the wiringharness with the supplied tie-raps.
3.
Pull the coverplate over the wiringharness.

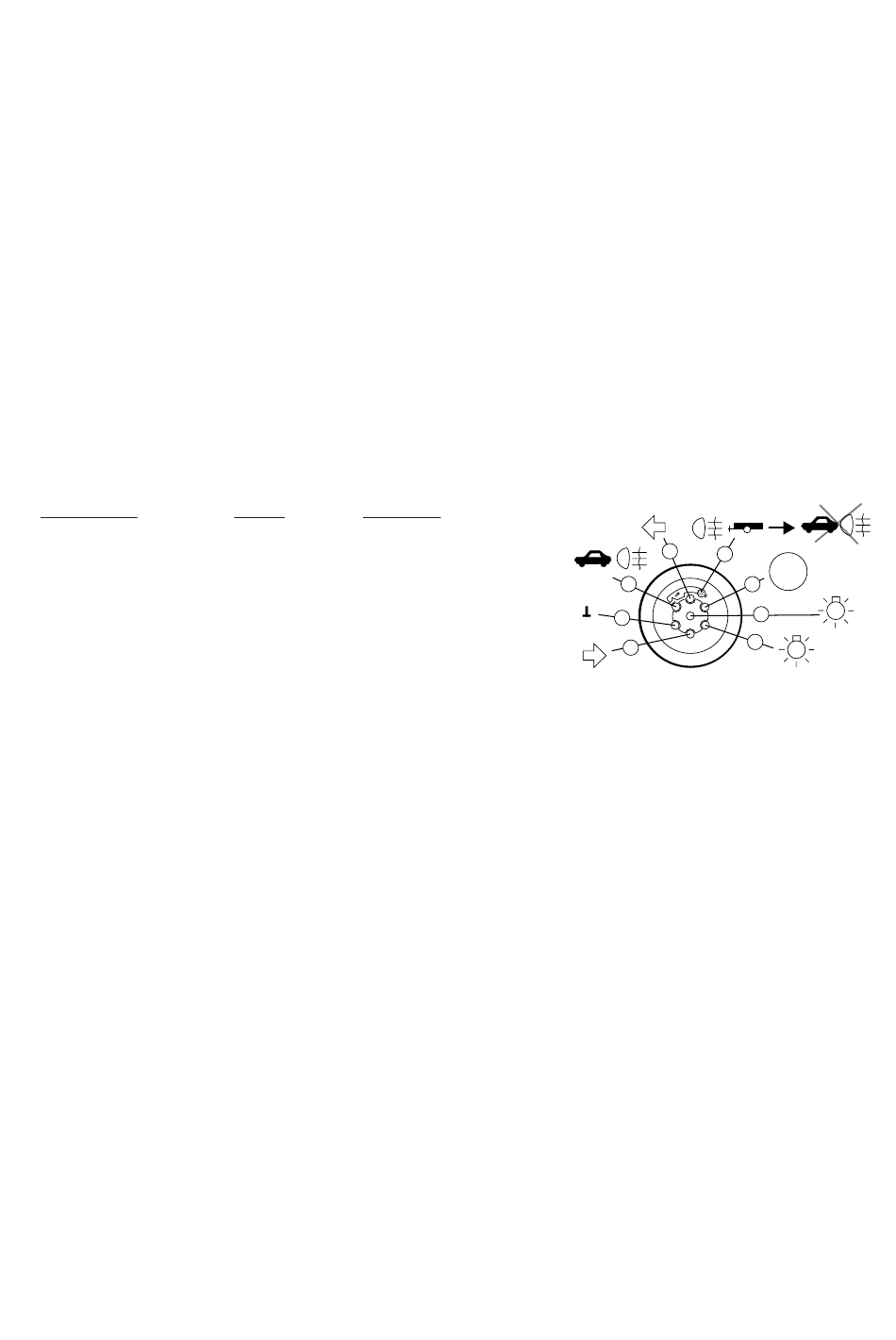

Remove the contactholder from the socket and fit the wires as follows:
Trailer lighting:
Left turn signal
Rearfoglight
Earth
Right turn signal
Right taillight
Brakelights
Left taillight
Rearfoglight
4.
Disconnect this 14-pole connector which is located under the left back seat.
Connect the wiringharness corresponding with this connector in the car.
Connect the 3-pole connectors of the wiring harness with the blue and grey wires to the 3-pole connector of the foglights.
Fit the white wire to chassis earth.
5.
Mount the socket on the towbar plate.
Reconnect the battery and check all electric functions, with trailer/caravan connected.
Reinstall disassembled parts.
©ECS2000
FITTING INSTRUCTIONS ELECTRIC WIRINGKIT TOWBAR WITH 12-N SOCKET UP TO
DIN/ISO NORM 1724
MITSUBISHI PAJERO 1994-
Partno.: MIT-042-B
Pin No.:
Wire colour:
1 (L)
yellow
2 (54-G)
blue
3 (31)
white 2,5 mm2
4 (R)
green
5 (58-R)
brown
6 (54)
red
7 (58-L)
black
8 (58-b)
grey
MIT-042-B-E
060100L
1
8
STOP
2
6
7
3
5
4
REVISIE 0
