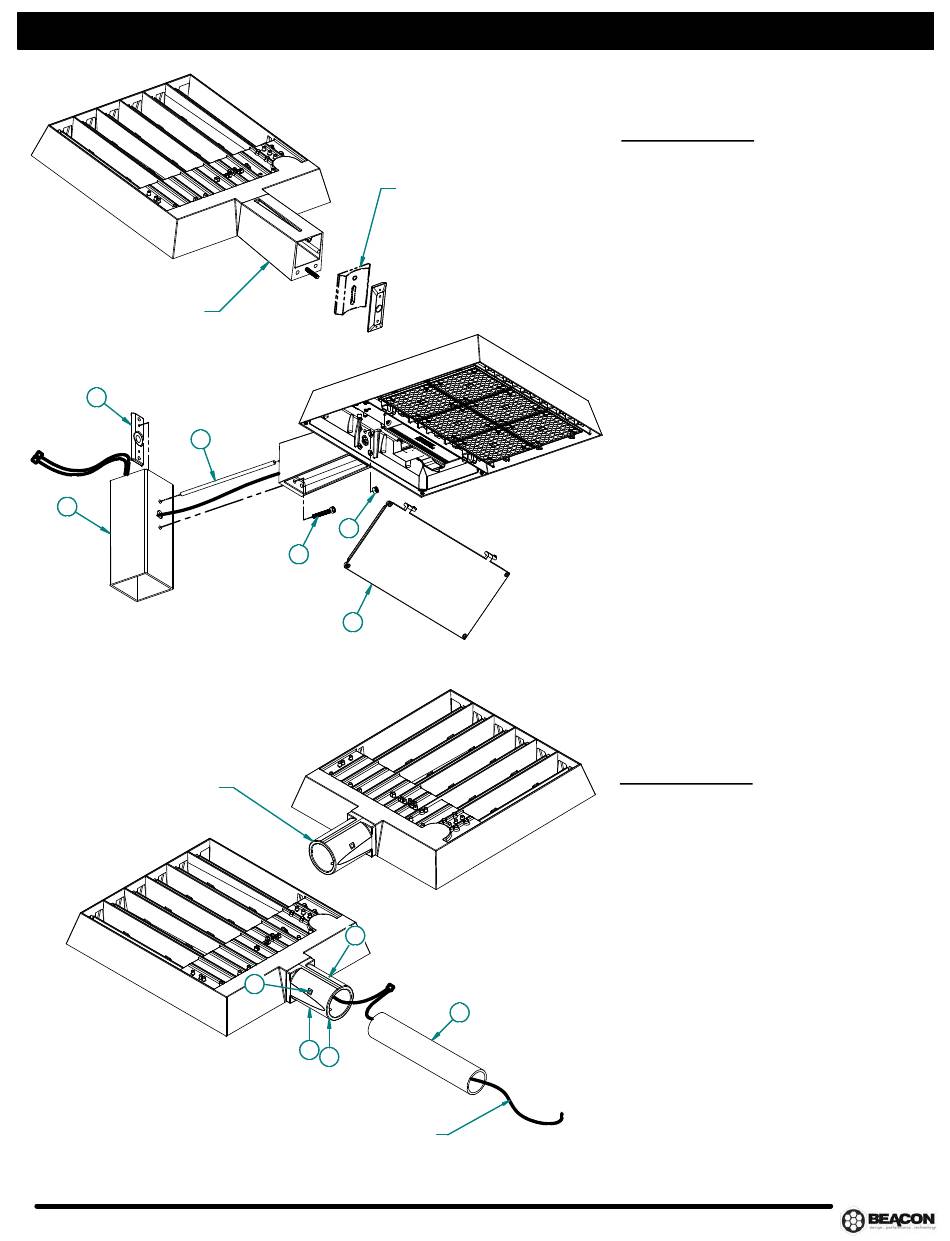

INSTALLATION INSTRUCTIONS - RATIO AREA
ARM MOUNT
B
WIRING
CONNECTIONS
C
A
MAST ARM FITTER
NOTES:
For replacement LED Assemblies and Drivers please contact Current Lighting for any replacement parts.
Contact your local distributor or agent to confirm parts availability prior to ordering replacement parts.
701 Millennium Boulevard Greenville, SC 29607 (864) 678-1000
SAVE THESE INSTRUCTIONS
OPTIONAL
ROUND POLE ADAPTER
MULTIPLE DIAMETER
SIZES AVAILABLE
D
E
F
G
SET SCREWS
WIRING CONNECTIONS
G
G
G
POWER IN FROM POLE
Ratio Area Arm Mount
Fixture Installation:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Ratio Area Mast Arm Mount
Fixture Installation:
1.
Make power connections from the fixture
wiring to the power feed wires. Route
connected wiring into the pole mast arm
and pole interior.
2.
Attach fixture by sliding the mast arm fitter
over the pole mast arm (E). Ensure wiring is
not pinched between the Mast Arm Fitter
and the pole mast arm.
3.
Secure housing to arm by tightening (4)
3/8-16 set screws (G) using a 3/16 Allen
Wrench. Torque to 12 ft-lbs.
4.
Ensure power is supplied to LEDs.
E
SHEET 2 OF 3
Open the driver compartment door (F) by
removing (4) 8-32 T-20 Torx fasteners.
Remove pole cap (not shown) and position
nut plate (B) inside pole (A) at pre-drilled
hole locations.
Insert 5/16-18 threaded rod (C) through
the arm and fasten on the interior of the
housing with a 5/16-18 nut, washer, and
lockwasher.
Insert the opposite end of the threaded rod
into the top hole of the pole drill pattern
and thread into the top hole of the nut
plate (B). Torque nut (D) to 10 ft-lbs.
Route fixture wire from the arm through
the wireway hole into the interior of the
pole, and then out the top of the pole.
Insert 5/16-18 hex bolt, washer, and
lockwasher set (E) through the center hole
located in the bottom surface of the arm,
through the lower hole of the pole drill
pattern and into the nut block (B).
Reinstall (if removed) the driver
compartment door (F), close and secure
(4) 8-32 fasteners.
Make power connections at the top of the
pole and replace pole cap.
Ensure power is supplied to LEDs.
www.beaconproducts.com
