1.3 Dimensions and Overview

1" (25mm)
STANDOFF
¾
8 "
(222mm)

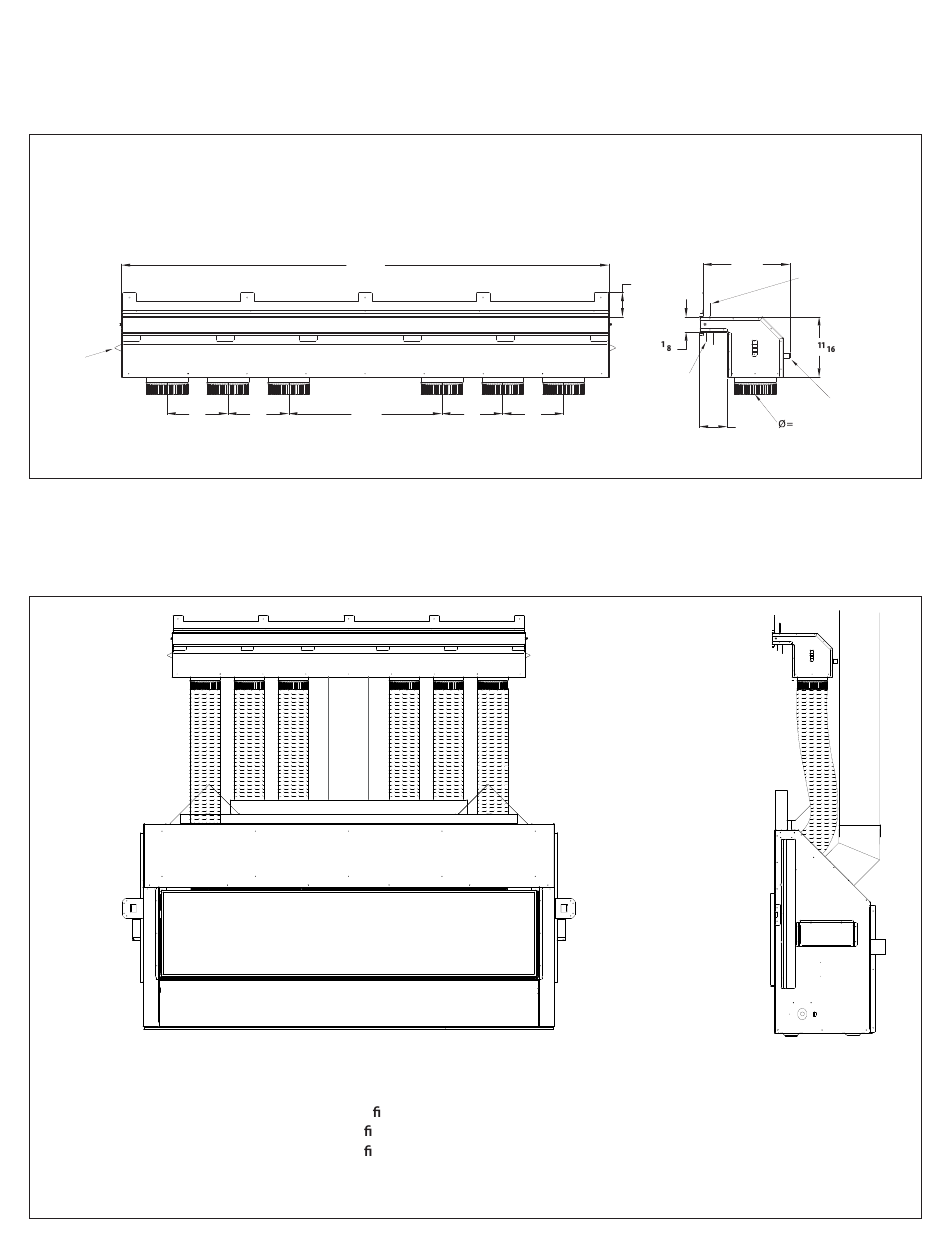

Figure 1.4, KZK-072 Dimensions
Minimum
½" (12mm)
clearance to
combustibles
around pipe
The tubing that connects the plenum to the replace must be UL181 Class 0 approved air duct.
If you are mounting the plenum above the replace 10' (3m) or less, use (1) #KZK-610 kit.
If you are mounting the plenum above the replace between 10' (3m) to 20' (6m)
you will need (2) #KZK-610 kit and #KZK-CPL6 coupler kit.
Figure 1.5, KZK-072 Overview
Komfort Zone Kit #KZK-072 R.4
70"
(1778mm)
¾
8 " 22"
(222mm) (558mm)
Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces
#KZK-072
¾
¾
8 "
8 "
(222mm)
(222mm)
½
12 "
(317mm)
2" (50mm) STANDOFF
½
3 "
(89mm)
⁄
2 "
(54mm)
¼
1 " (32mm)
STANDOFF
6"
4"
(102mm) (152mm)
⁄
8 " (220mm)
1" (25mm)
STANDOFF
