1 INTRODUCTION
6mm
(0.23")
178mm (7.00")
158mm (6.22")
156mm (6.14")

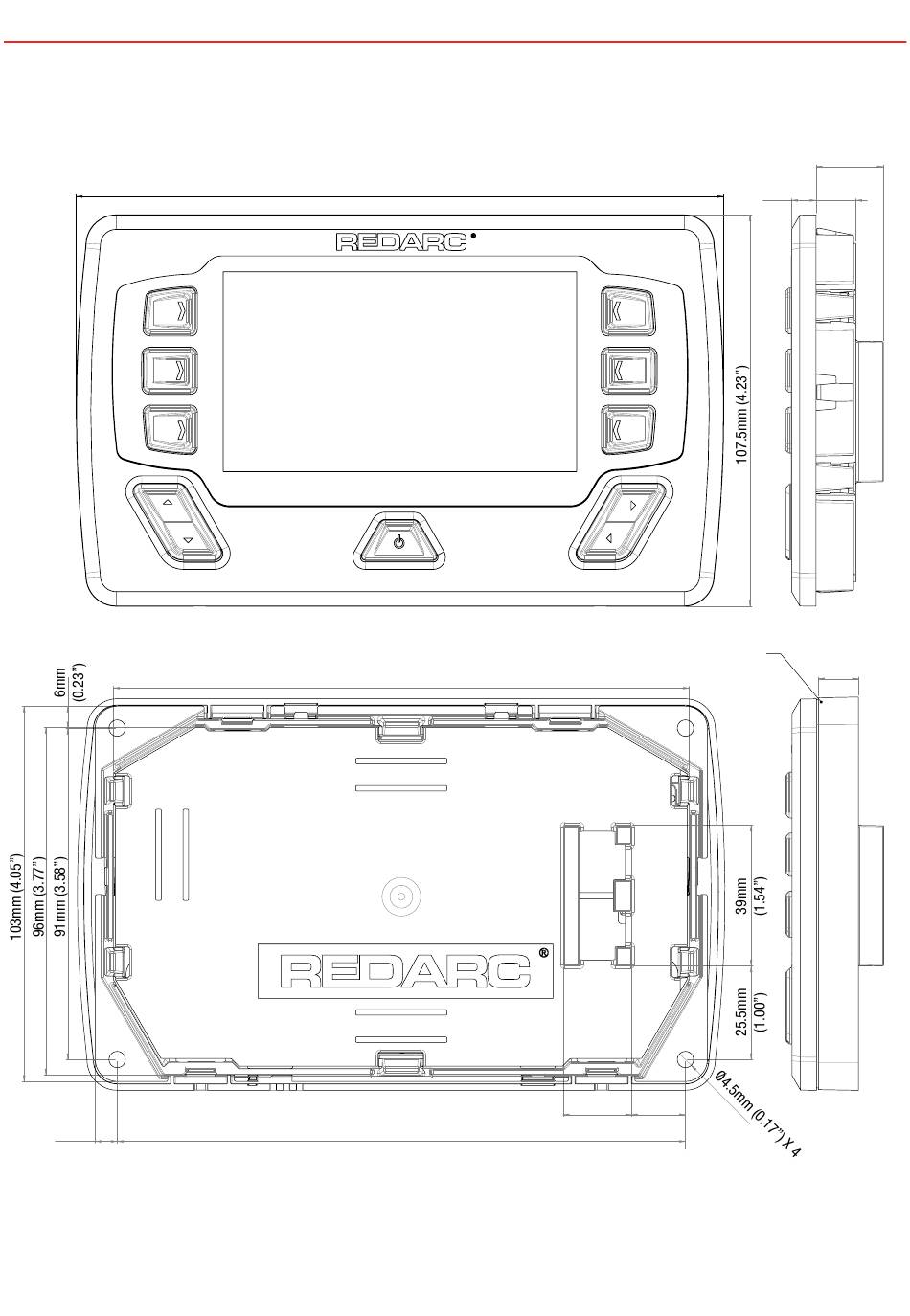

Figure 1.4.2 - Dimensions d'affichage
8
Optional mounting spacer
Espaciador de montaje opcional
Entretoise de montage optionnelle
19mm 15mm
(0.74") (0.59")
18.5mm (0.73")
11mm
7mm
( 0.43")
(0.28")
11mm
(0.43")
