INSTALLATION INSTRUCTIONS
POWER ADAPTER KIT
WARNING:
• Disconnect power before any Installation or repair.
• Wear safety glasses.
The Model 1092-01 Power Adapter Kit permits the connection of a three-tab radio control
receiver to a garage door operator that doesn't conform to the three-terminial standard
adopted by DORCMA. (These terminals are the access to the 24 VAC control circuits.)
The operators may have only two terminals or the numbering sequence may be different.
To Install a Three-tab Receiver:

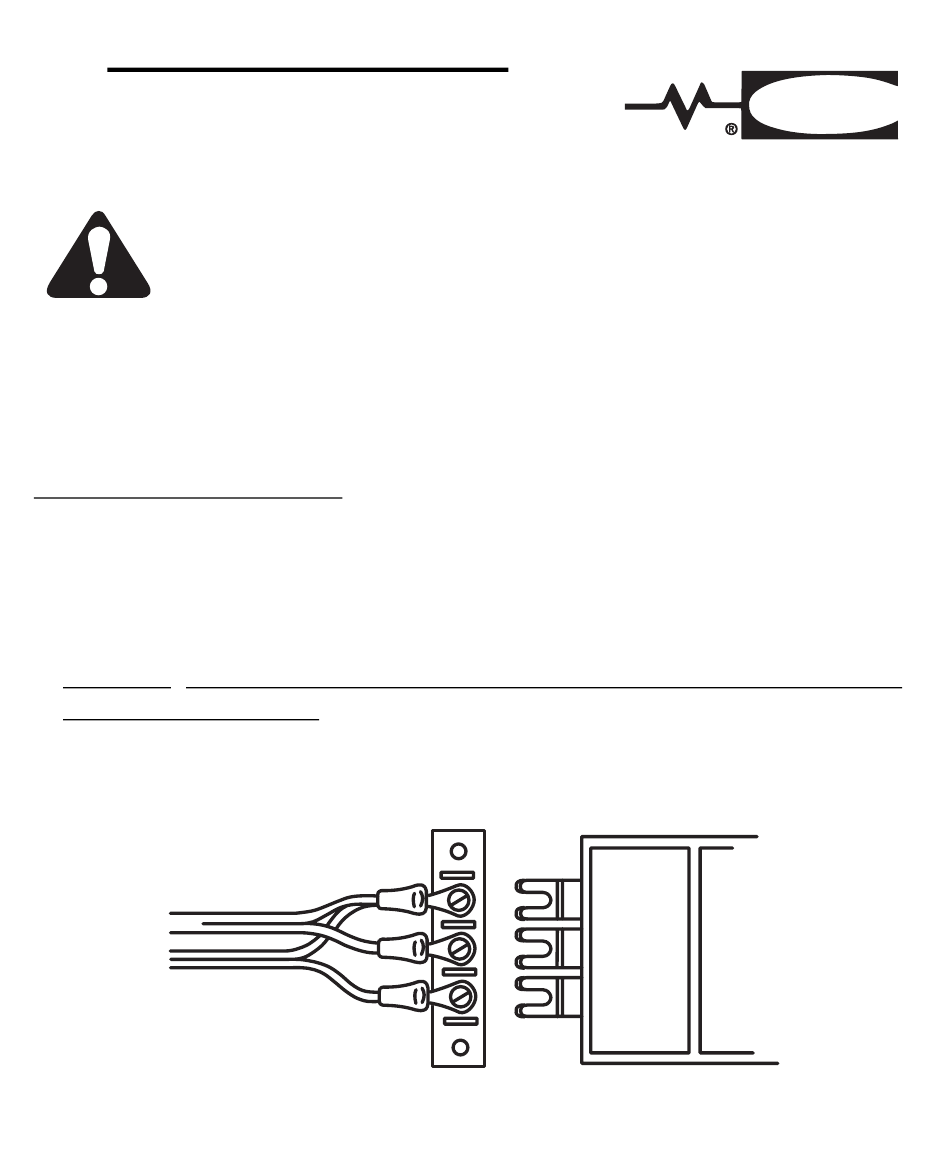

1. Loosen the three screws on the kit terminal block and insert the receiver tabs under the
lugs as shown in the figure. The lugs will fit down into the open ends of the receiver
tabs. Retighten the screws.
2. Mount the receiver near the operator power head on a joist or the ceiling by inserting
the two sheet metal screws Into the terminal block holes and tighten.
WARNING: DO NOT MOUNT THE TERMINAL BLOCK ON A METAL OR OTHER
CONDUCTIVE SURFACE.
3. Connect the two spade lugs to the wall button terminals on the operator and plug the
transformer into a 115 VAC outlet.
To Wall Button
Terminals
To In-line
Transformer
LINEAR CORPORATION
2055 Corte Del Nogal
Carlsbad, California 92009
MULTI-CODE™
Model 1092-01
Three-tab Receiver
