Linear 1092-06 Instructions D'installation

WARNING:
• Disconnect power before any installation or repair.
• Wear safety glasses.
The Model 1092-06 Power Adapter Cable permits the connection of a three-tab radio control
receiver to a garage door operator having three terminals that are not readily accessible for
direct mounting of the receiver or the numbering sequence doesn't conform to the standard
adopted by DORCMA.
To Connect a Three-Tab Receiver:

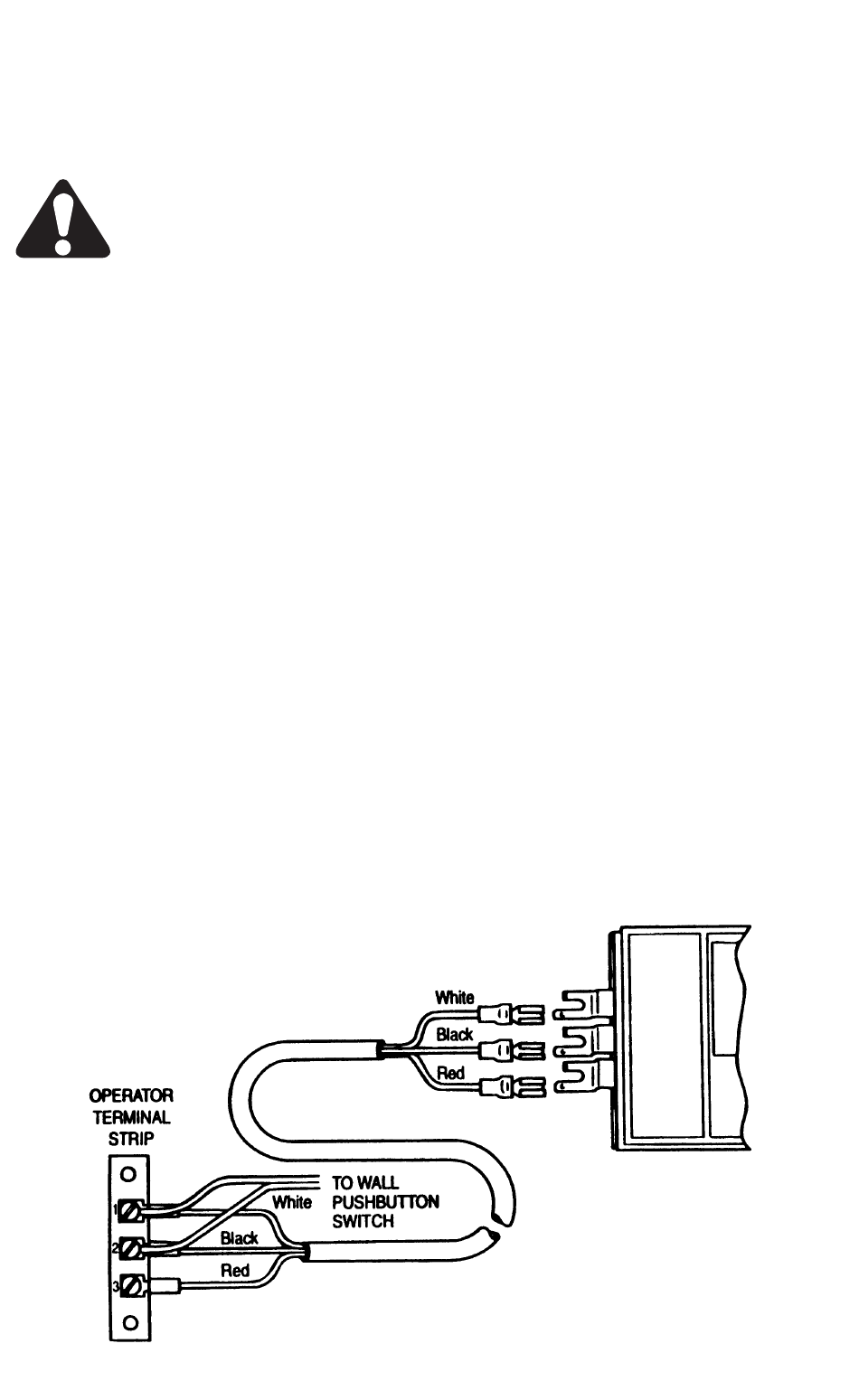

1. Connect the cable wires to the receiver power terminals keeping the wire colors in order
as shown in the figure. The push-on receptacle on each wire is connected to the straight
tab of the receiver terminals.
2. Connect the wires from the other end of the cable to the operator terminals as follows:
(a) White wire to the terminal marked "1" or "24v".
(b) Black wire to terminal marked "2" or "Relay".
(c) Red wire to terminal "3" or "Common" - sometimes marked "Radio Power".
(d) Connect the wall pushbutton switch across terminals 1 and 2, in parallel with the
white and black wires.
Note: The numbers marked on terminals on some operators may be different from those
shown in the diagram. In all cases where the operator terminals are labeled "24v", "Relay",
and "Radio Power", the wire color and word designation should be matched as shown in
the diagram.
Copyright © 1999 Linear Corporation
INSTALLATION INSTRUCTIONS
POWER ADAPTER CABLE
Model 1092-06
216665 A
