Front Panel Features

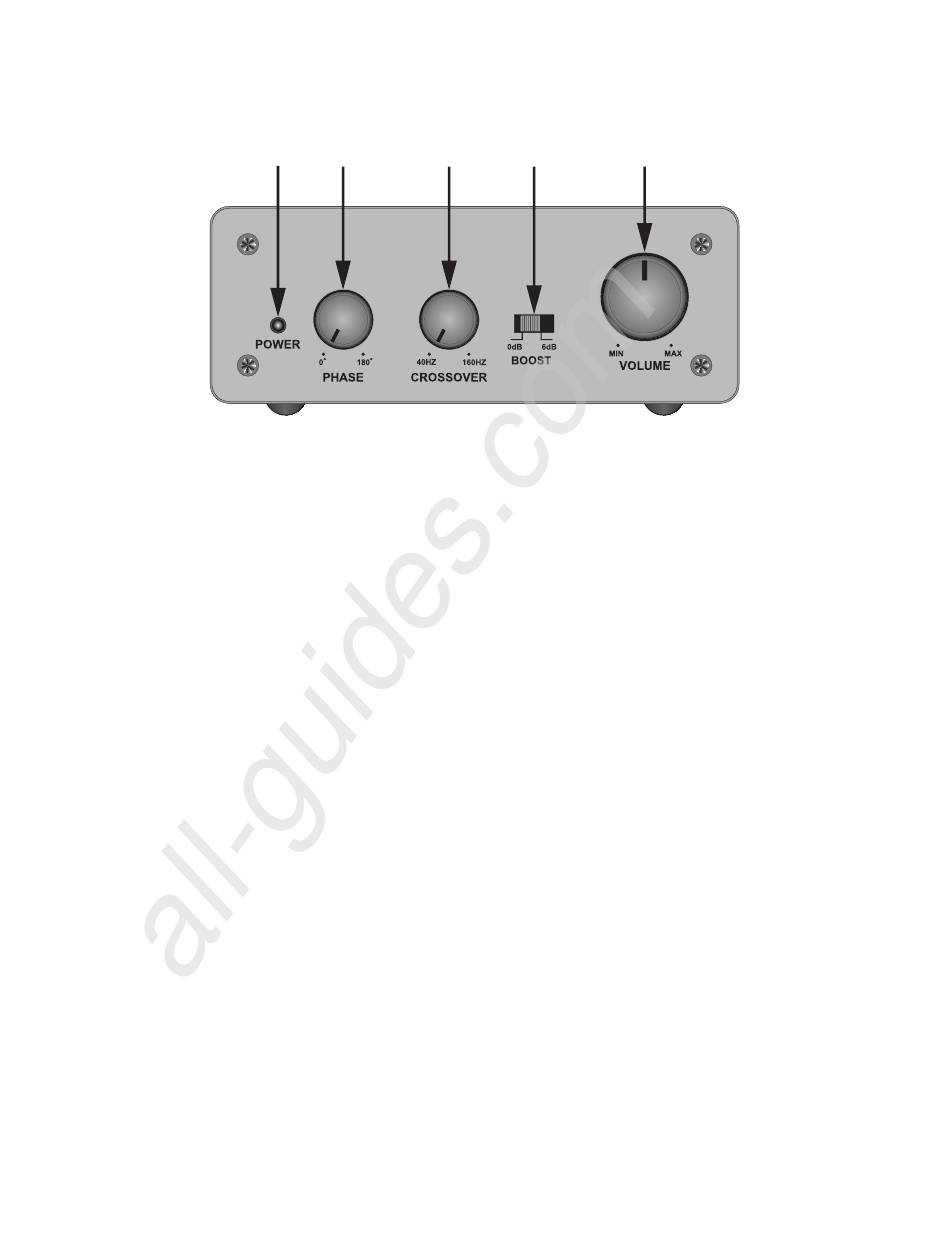

1. POWER LED - One, green LED. Green LED illuminates when the 0E-A100 is
connected to AC power and turned ON.
2. PHASE - The Phase setting allows compensation for subwoofer location relative to
the main speakers. Adjust the Phase setting to the point of highest sub audio output.
RANGE: 0º to 180º.
3. CROSSOVER - The Crossover sets the frequency at which audio content will pass to
the 0E-A100 Speaker Out.
RANGE: 40Hz to 160Hz.
4. BOOST - One, slide switch. Set to 0dB for normal signal. Set to 6dB for 6dB boost @
40Hz.
5. VOLUME - Adjusts the 0E-A100 audio output level to the connected subwoofer.
RANGE: MIN (MUTE) to MAX.
