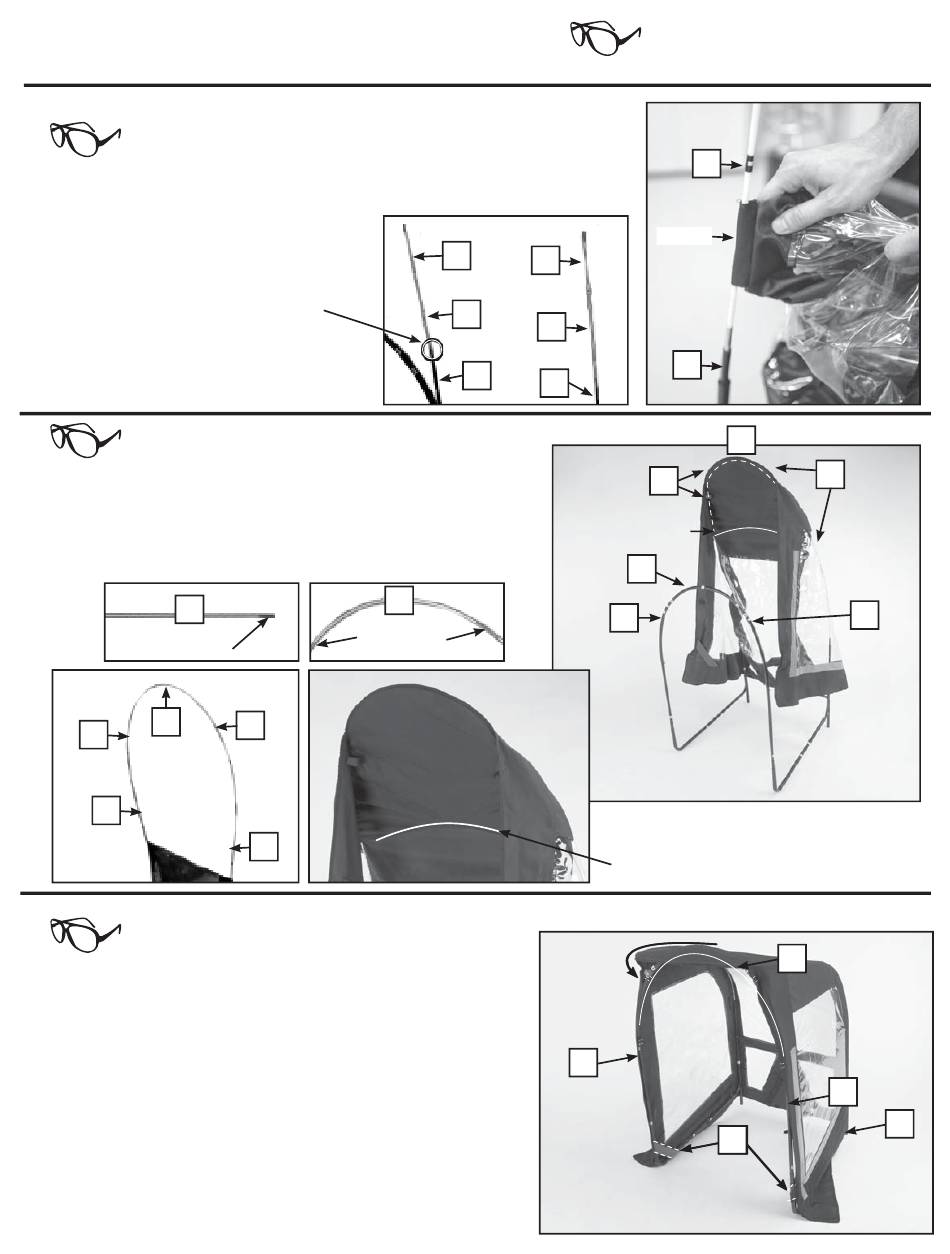

NOTE: For steps 8, 9 & 10, please be sure you wear safety glasses.
NOTE: You should have four H rods and one I rod.
8. Pull the cover out of box and locate the inside sleeves. Insert
the steel collar ends of these H rods into the tops of poles F. The cover will
be hanging loosely on the rod/pole assembly. Feed one H rod through one
sleeve of the cover, then repeat with
another H rod on the other side.
NOTE: Flexible H rods will feel loose
when inserted. This is correct.
Do not attempt to force fl exible
H rods further into poles F.
9. Slide the two remaining H rods over the previously
inserted H rods. Take rod I and insert the ends of the H rods into
the steel collar ends of rod I.
Pull the cover up over the rod assembly and slide the top of the
rod assembly into the large fabric pocket inside the cover. This
will require some bending of the rods.
H
Steel Collar
I
H
H
10. Pull the cab material down and back towards the
arch assembly, D/C/D. Fasten hook-and-loop straps on both
sides of the D/C/D assembly. Slide elastic loops over the rear
corner of bar A on both sides. Fasten hook-and-loop straps
around all bars at various locations. (For your convenience
you may want to wait until the cab is mounted on your snow
thrower to finish fastening these straps.) After the material is
secured over the frame assembly, remove bar J.
