D 9821/ QH-9821A

Technical Specifications

A. Transmitter
Power Requirements
PIR Sensor Viewing Area
PIR Sensor Range
Transmission Range
B. Receiver
Power Requirements
Chime Volume

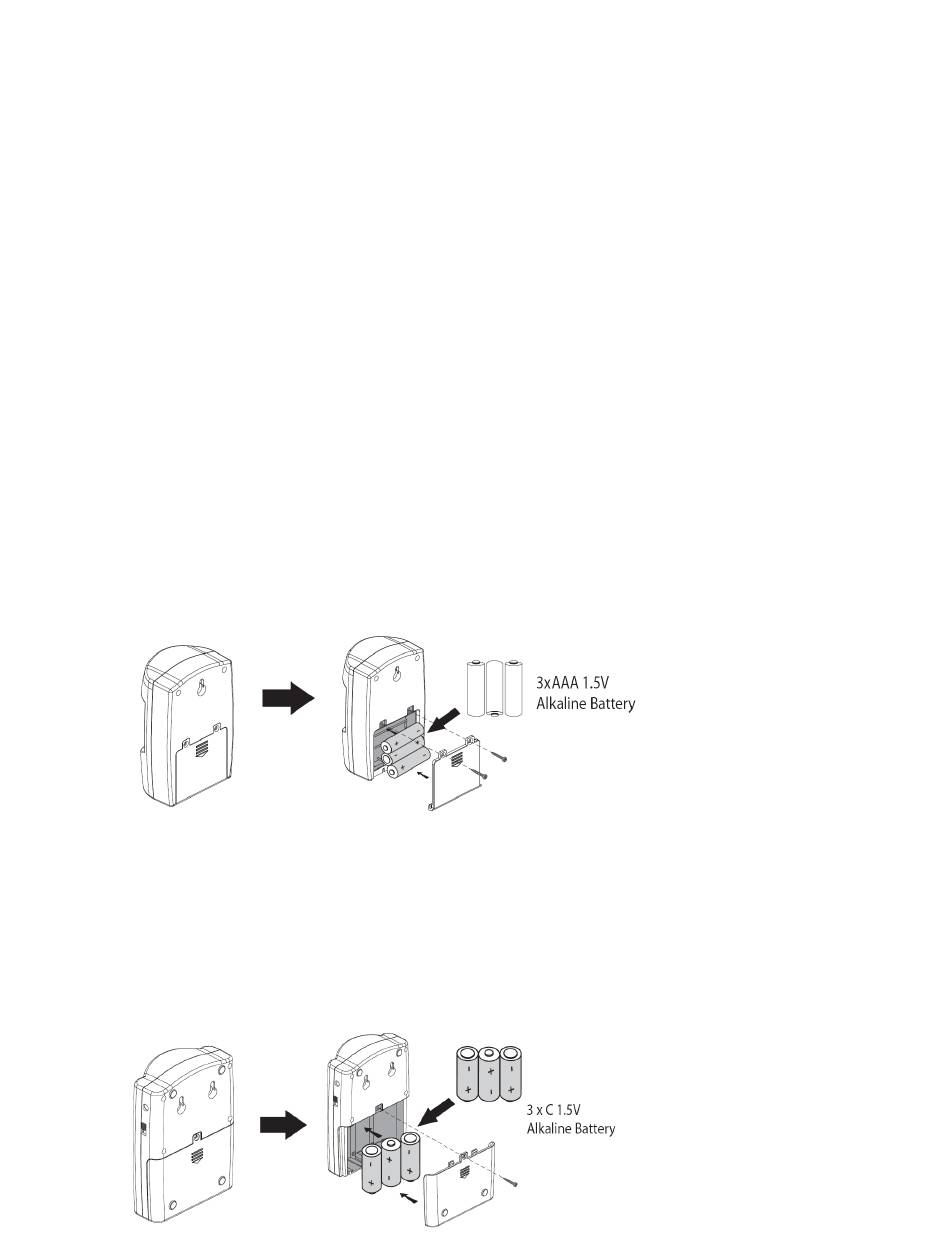

Installing/Replacing Batteries and Code Matching
A. Transmitter
The transmitter requires 3×AAA 1.5V batteries.
Remove the transmitter from its mounted position
Remove the two screws on the rear of the Outdoor Unit, which secure the battery
compartment cover in place.
Safely and responsibly dispose of the old batteries (if applicable).
Connect three new AAA 1.5V batteries.
Replace the battery compartment cover, securing screws and re-mount the transmitter. When
replacing the battery cover, ensure that it makes complete contact with the sponge seal lining
the battery compartment. If moisture is able to enter the transmitter, it will adversely affect
performance dramatically.
B. Receiver
The receiver requires 3 x C 1.5V batteries.
Remove the receiver from its mounted position.
Remove the screw on the rear of the unit.
Safely and responsibly, dispose of any old batteries.
Insert three fresh C batteries. Don't mix old and new batteries.
3×AAA 1.5V battery-not included
Approx.100 Degrees Horizontal
24ft/8m approx.(varies by local conditions)
368ft/120m approx.(varies by local condition)
3×C 1.5V battery -not included
Approx.90dB
