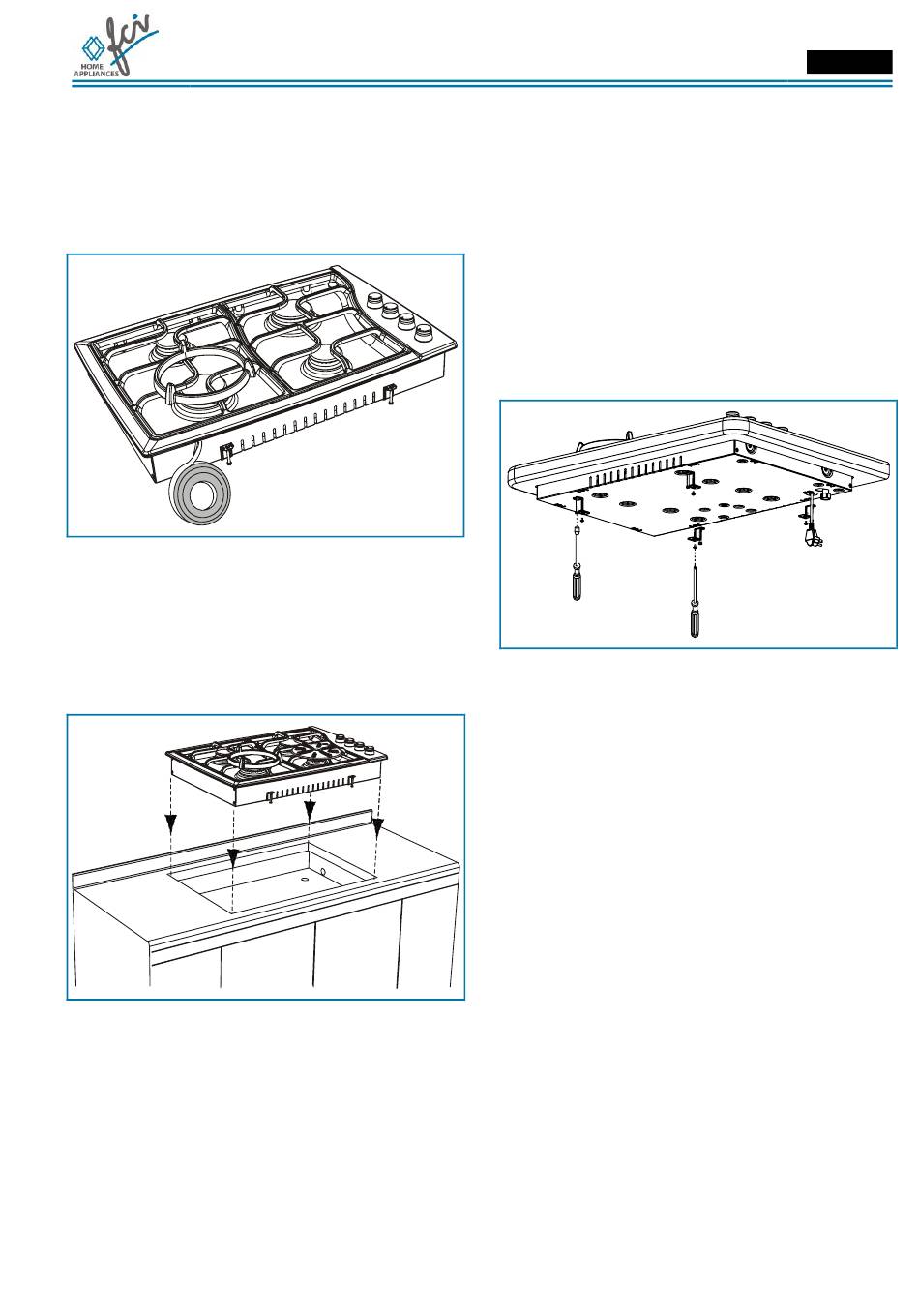

FCI Home Appliances COGB 33060/BL Manuel D'installation page 9

Step 2
Before installing apply the foam tape.
A tape is provided to seal the cooktop edges to the
countertop. Apply tape near inner underside cooktop
edge.
Use tape around the entire cooktop perimeter.
Cut off excess where tape butt ends.
Figure 8.
Step 3
Insert the cooktop centered into the cutout opening.
Make sure the front edge of the counter top is parallel
to the cooktop. Make final check that all required
clearances are met.
Figure 9.
Step 4
Four clamp brackets are provided with your unit.
After cooktop has been installed into the countertop,
install the brackets on the burner box as shown in
figure 10.
Install the clamp brackets on the front and back of the
burner box bottom (if the cabinet construction does
not provide clearance for installing brackets at the
All manuals and user guides at all-guides.com
008
009
Cooktop & Installation Manual
burner box front back install the clamp brackets on the
lateral position of burner box).
step A place the clamping screws into brackets
step B attach brackets by using the attachment
screws on the selected location of burner box, tighten
screws just enough to hold brackets in place
step C positioning brackets so that they are with the
clamp screw in contact with the counter top bottom
step D tighten attachment screws securely.
step E check that the front edge of the cooktop is
parallel to the front edge of the countertop tighten the
screw clamping against the countertop.
DO NOT OVER TIGHTEN
Figure 10.
