Attaching The Strap - Swarovski Optik NL Pure Mode D'emploi

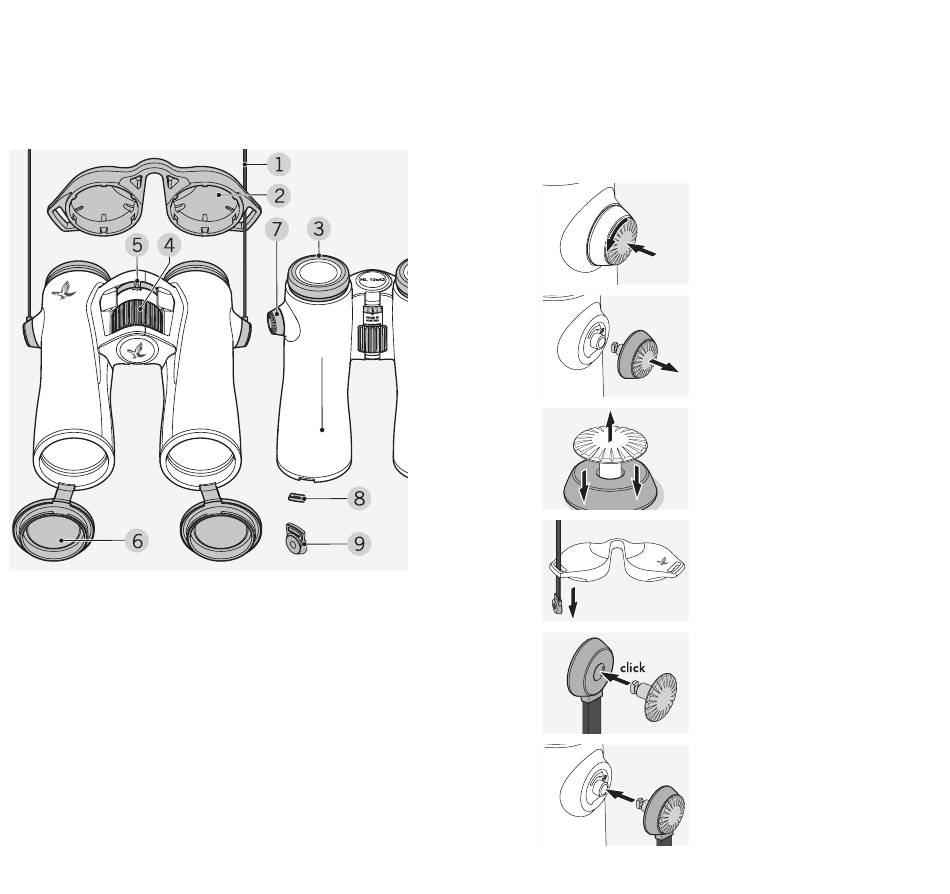

1. OVERVIEW
1 Carrying strap
2 Eyepiece cover
3 Twist-in eyecup
4 Focusing wheel
5 Diopter adjustment
Supplied with:
Functional side bag, cleaning cloth, soap, brush
16
NL PURE / EN NL PURE / DE
6 Objective lens cover
7 Strap connector cover
8 Objective lens cover
filler piece
9 Strap loop connector
The NL Pure is not supplied with the strap attached. The strap
and other accessories are quick and easy to attach when
required.

2. ATTACHING THE STRAP

Press on the knob and rotate it coun-
terclockwise (90°).
Pull the knob out.
Remove the pin from the ring.
If you want to fit a rainguard or other
accessory, pull the strap through the
eyelet of the cover.
Then press the pin into the strap until
it clicks.
Insert the knob in the designated
place on the binoculars.
NL PURE / EN NL PURE / DE
17
