HurriClean Automatic Above Ground Pool Cleaner
I.
Preparation of Your Pool
Before assembling and installing your cleaner, your pool should be clean and algae-free so as not to inhibit the
cleaner's traction. If necessary, make the following preparations before proceeding:
1.
Chemically balance the pool water.
2. Brush pool and let the debris settle.
3.
Hand vacuum thoroughly.
4.
Clean filter
II. Assembly
Remove the body and all of its parts from the box and check sure that all components were included.

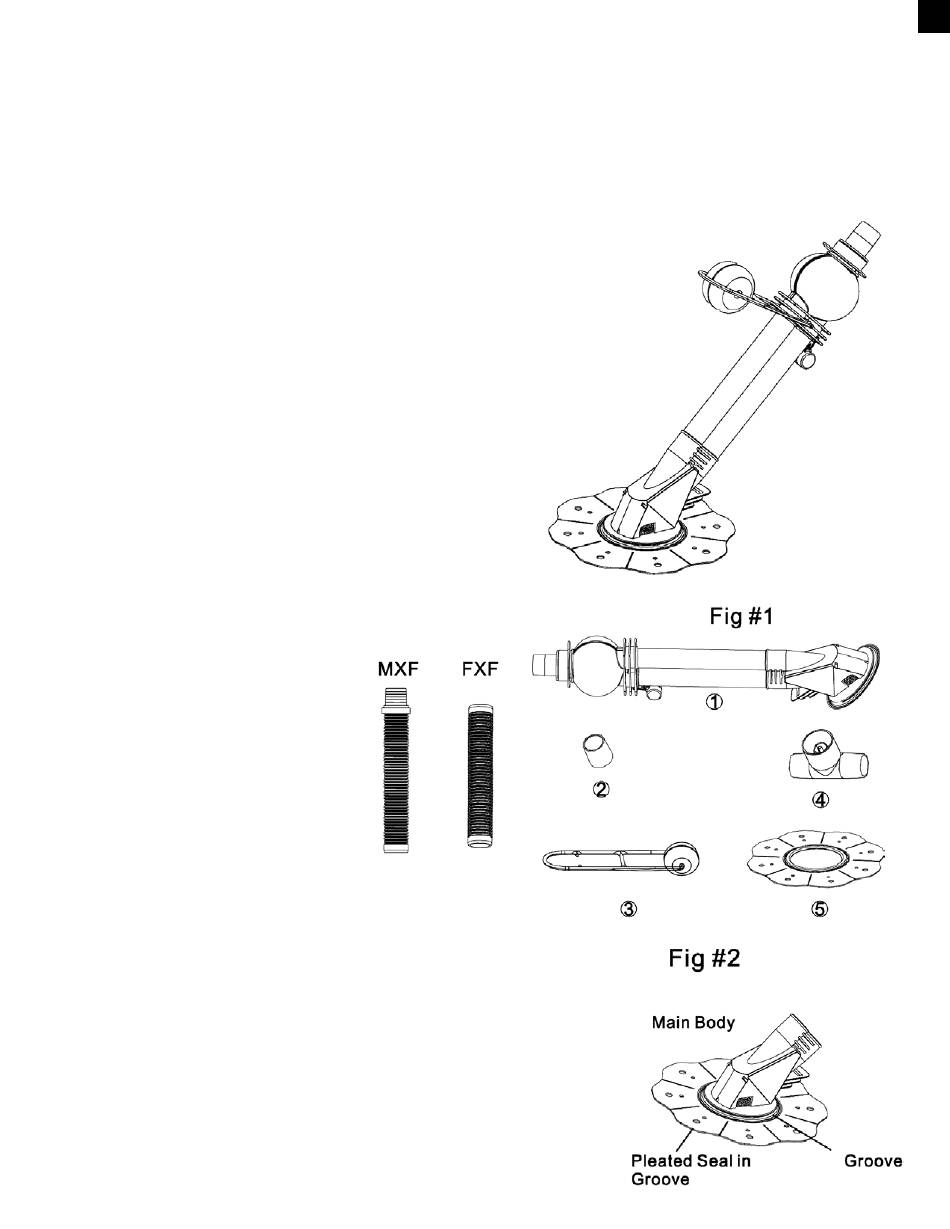

Refer to Figure 1.
Components Check List
1.
Body
2.
Cone
3.
Float Assembly
4.
Automatic regulator valve
5.
Pleated seal
6.
Hose (11PCS MX F)
(1 pcs FX F)
Step 1.
Attach The Seal
To install seal, slip the seal over the foot pad and pull gently until it
seats itself on the other side in its groove as illustrated in Figure 2.
Seal must be installed flat side down, pleated side up. Once in place,
the seal should rotate and turn freely.
Step 2.
Attach Float
Step 3.
Attach Cone To Reg Valve And Insert Reg
Valve To Female Hose Section.
Step 4.
Attach the remaining hoses
Assembly Instruction
EN
NE4375
