Fellowes AeraMax Pro AM II Instructions page 7

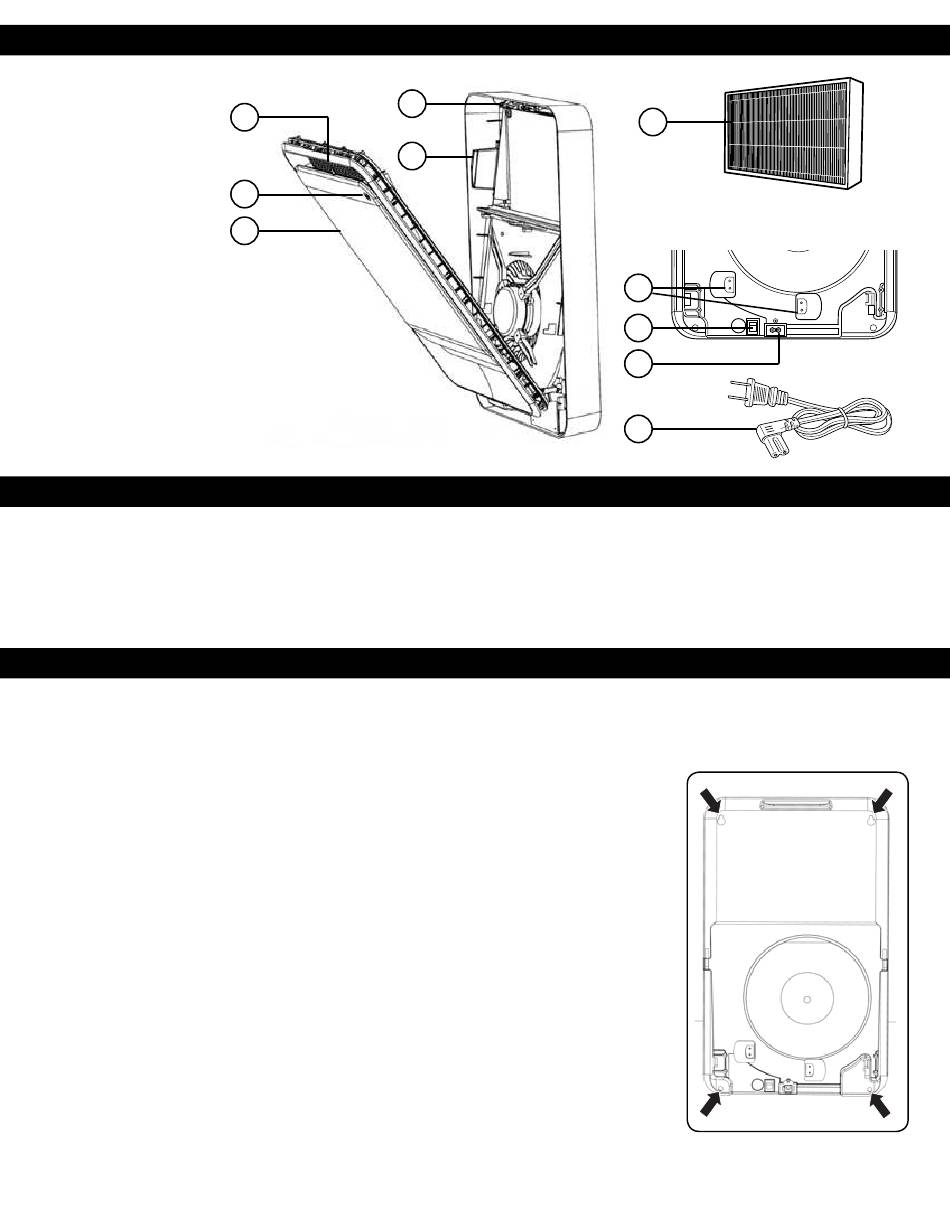

KEY
1. Control Panel
2. Motion Sensor
3. Front Access Panel
4. Access Panel Latch
5. Certified Filter Sticker
6. Hybrid Filter
7. Cord Management
8. Power Switch
9. Power Cord Socket
10. IEC Plug
SET UP - Reference KEY section
1. Open unit by pressing the access panel latch (4) down while pulling the front access panel towards you.
2. Remove bag from filter and place back in unit.
3. Plug the IEC plug (10) into the power cord socket (9) on the back of the unit.
MOUNTING MAIN ASSEMBLY
1. Choose an area to mount the unit near a standard outlet receptacle (Cord length approximately 1.6 meters).
2. Mark the wall with the two top mounting locations. If mounting location is over an existing stud, no preparation
needed. If mounting location is over drywall only or other surface requiring additional support, use anchors.
3. [Anchor use only] To use anchors, drill a 9.5mm hole in the mounting hole location(s) and install anchors into wall.
4. Install screws leaving approximately 1/4" (6mm) from the head of the screw to the wall. Do not install screws
all the way.
5. Hang the unit on the screws installed in previous step using the top key-hole mounting holes.
6. Open the front door of the unit and mark the locations of the mounting holes at the bottom of the unit on
the wall.
7. [Anchor use only] Remove the unit from the wall and install anchors in marked location(s)
8. Hang the unit back on the wall, and tighten the two screws in the top mounting locations.
9. Place the (2) provided stickers over the top mounting hole locations to maximize performance.
10. Install screws into the bottom mounting locations.
11. Remove the filter(s) from their packaging and install them in the unit Note: The "AeraMax Pro Certified Filter
Sticker" on the filter must align with the identical sticker found on the unit. If the filter is not installed properly,
the unit will not power on.
12. Plug the power cord into standard outlet receptacle.
13. Reach behind the unit on the back bottom right to access the power switch and turn unit on.
Note: Manual mode will not be available for 1 minute upon initial power-up.
6
4
1
5
2
3
6
Back of Unit
7
8
9
10
4 Mounting Locations
