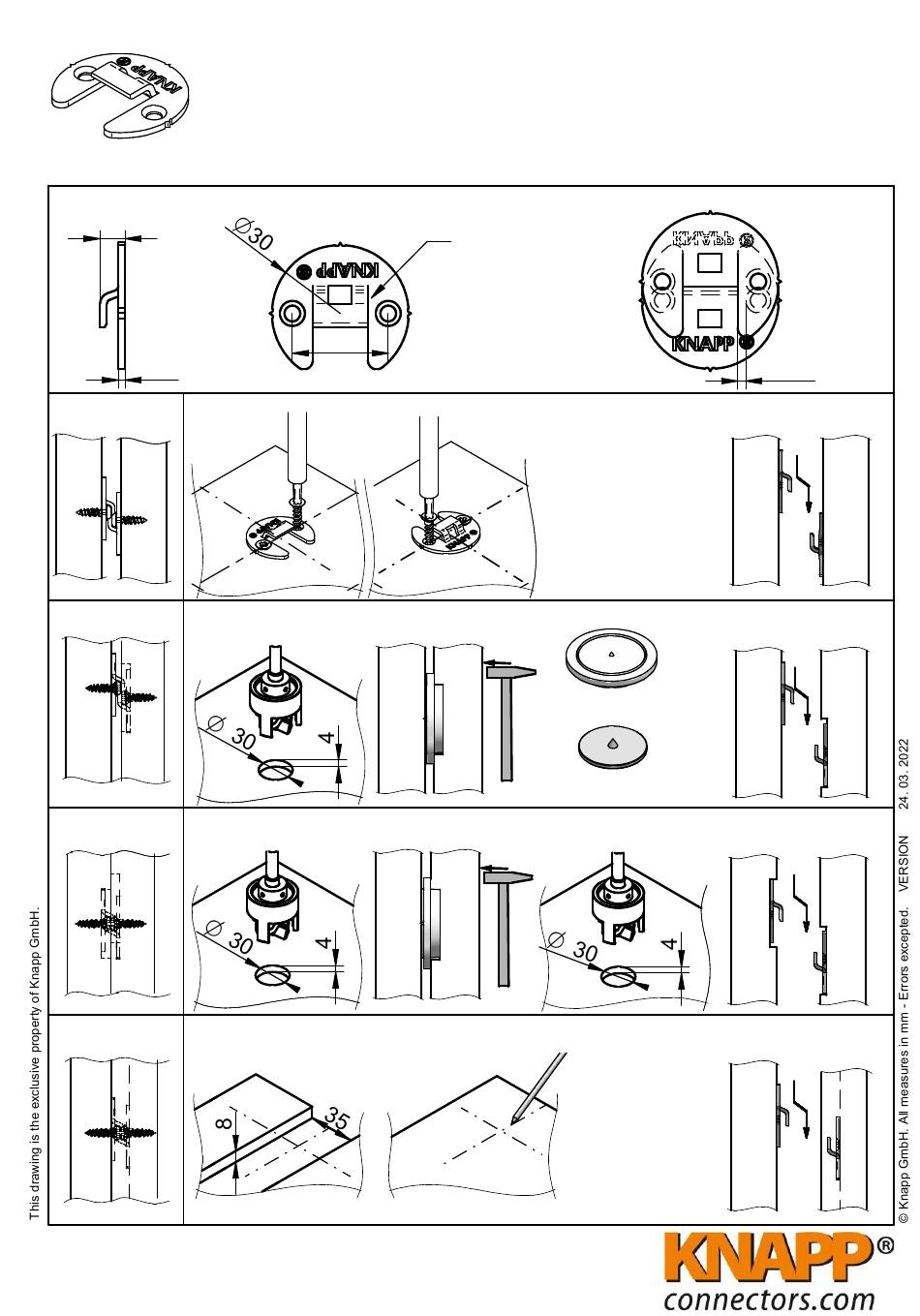

knapp DUO 30 mL Notice De Montage page 7

Art.-No. K350
DUO 30 Stainless steel A5
5,5
1,5
screw on both 1. Screwing
sides
A
B
A
drill on one side
1. Drilling
B
B
A
1. Drilling
drill on both sides
B
B
A
1. Grooving
groove on one
side
B
A B
Page 2/4
DUO 30 Stainless steel A5
with tolerances
21
B
2. Copy with center
punch
B
2. Copy
B
2. Copy
Construction Manual
Hook connector
2. To connect
3. Screwing and connect
center punch K071
center punch K075
3. Drilling 4. Screwing and connect
A
3. Screwing and connect
1,7
