3 3 . . M M a a i i n n t t e e n n a a n n c c e e

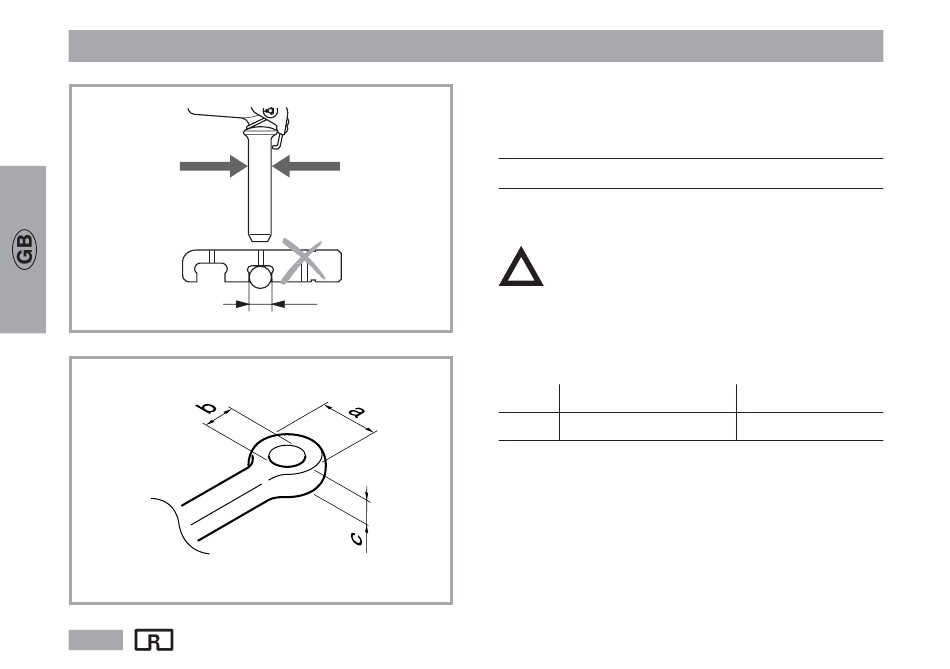

Fig. 5
Fig. 6
ROCKINGER
16
Member of JOST-World
29
One-handed pin
x
– Diameter
Nominal dimension Minimum wear limit
(mm) (mm)
30 – 31.0 29
x To reduce the wear and tear, lubricate the locking pin with
multipurpose grease at regular intervals.
Note:
Only use an original spare part for the locking pin
!
(with model approval).
x Locking pin diameter nominal value 30(+1) mm (max.)
x The diameter of the locking pin may not be less than 29 mm

Towing eye

x
DIN Nominal dimensions
a (mm) b (mm)
74054 100 40
R R O O 8 8 0 0 5 5 B B
i i
Swivel angle (s. Abb.)
c (mm) horizontal vertical
30,5 min. 76h min. 20h
