Rackmount LCD Console KVM Switch • User Manual
INTRODUCTION
Thank you for purchasing the INTELLINET NETWORK SOLUTIONS
For a full list of specifications, refer to the datasheet available at www.intellinet-network.com.
With the industry-standard 19" 1U-height rack drawer, this switch can be easily pulled out and accessed in the extended position, and
the display can be folded down, locked and secured when stored. With the ability to manage and control up to eight PS/2 or USB
computers, you'll also be able to enjoy these convenient features:
• Easy-to-use OSD interface
• Model 506540: flip-open 17-inch LCD panel (2048 x 1536 highest resolution; 1280 x 1024 optimal resolution);
model 506601: flip-open 15-inch LCD panel (1280 x 1024 highest resolution; 1024 x 768 optimal resolution)
• Model 506540: adjustable for rack cabinets with depths from 600 mm to 1200 mm (23.6 to 47 in.)
model 506601: adjustable for rack cabinets with depths from 600 mm to 900 mm (23.6 to 35 in.)
• Full 105-key, low-profile, sturdy keyboard
• Ergonomic handrest design
• Ultra-sturdy rear bracket and extension design
• Auto Scan
• Plug and Play system configuration
Package Contents
• 8-Port Rackmount LCD Console KVM Switch
• Rear bracket and extension kit
• KVM switch module

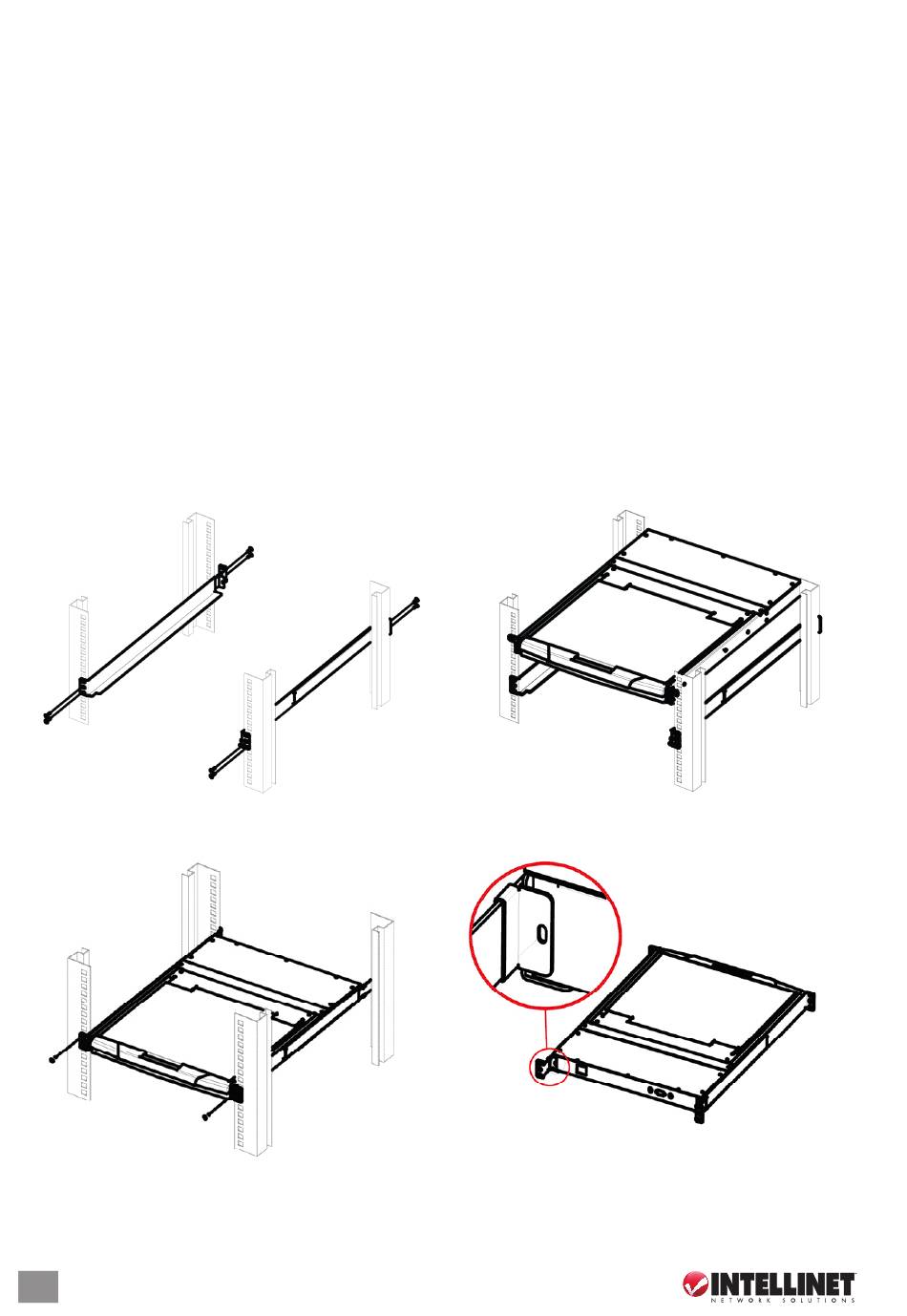

INSTALLATION
To install the Rackmount LCD Console KVM Switch in a rack unit, begin by removing the brackets if the device is already assembled.
1. For both the left and right bracket assemblies, screw the front
of the bracket to the rack, then extend the bracket and attach
it to the back of the rack.
3. Move the rear attachment brackets along the slide bars until
they contact the back of the switch.
2 2
ENGLISH
™ 8-Port Rackmount LCD Console KVM Switch, Model 506540 or 506601.
• Power adapter
• Eight 1.8 m (6 ft.) PS/2 and USB combo cables
• User manual
2. Carefully place the switch on the mounted brackets and
loosely attach the front of the switch to the front of the rack
using the included screws.
4. Attach the bars to the back of the switch.
