2. Hardware Installation

2.1 Connect the Adapter to your Laptop / Desktop

The WCM-110 designed to be powered by the USB interface of your
laptop/desktop. When the laptop/desktop is turned on, the USB interface is able to
provide 5V DC power output except data transmission. This is enough to drive the
WCM-110.

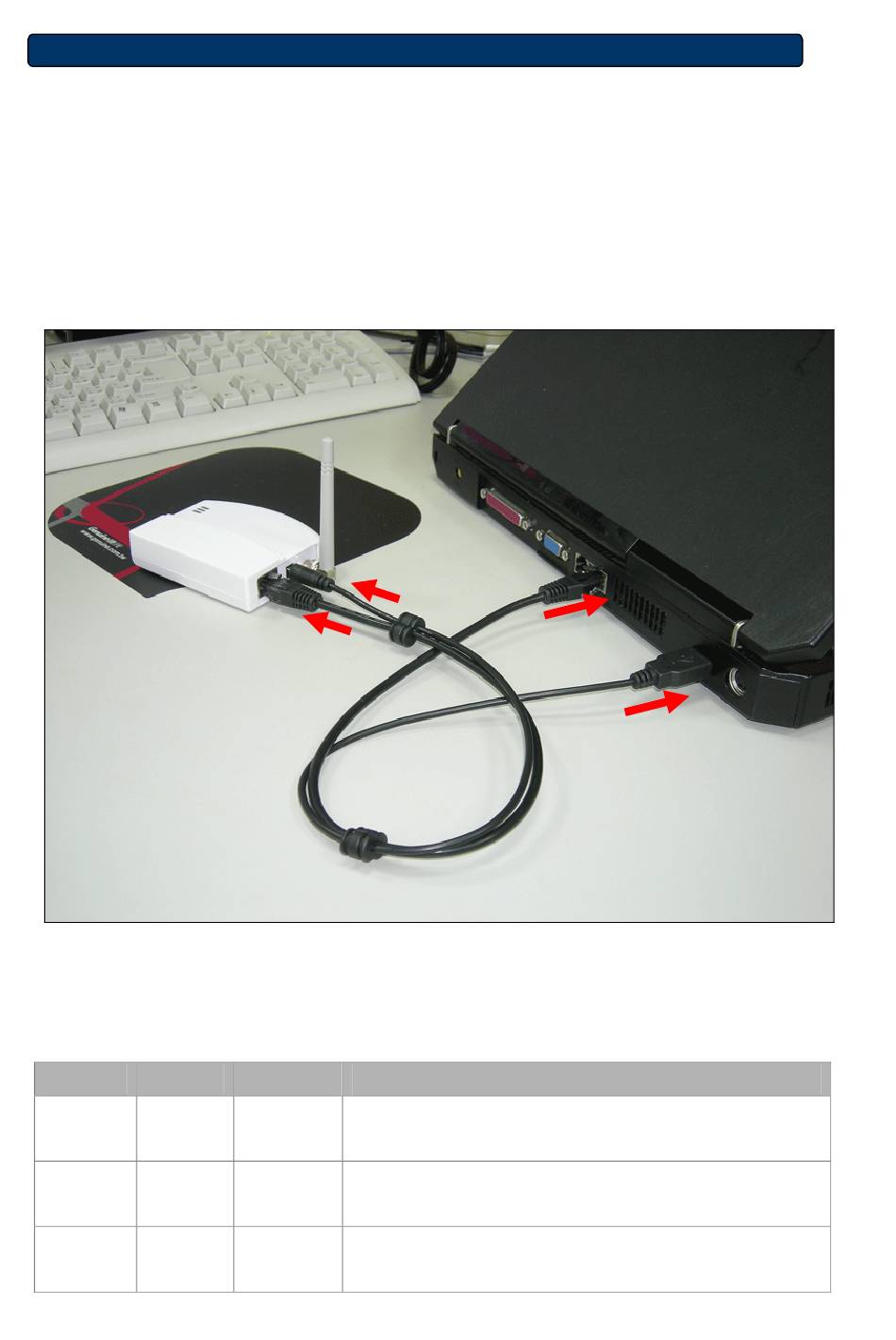

Please refer to the following figure for hardware installation.

2.2 LED Indicators

The WCM-110 comes with Link, Activity, and Power LED indicators. Refer to the
table below for LED definitions:
LED Color
Link Red
Activity Blue
Power Orange
Power
RJ-45
Status Definition
On The device is connected to an Ethernet network.
Off The device is off or there is no Ethernet connection.
On The device is on and ready.
Off The device is off.
On The device is on and ready.
Off The device is off or performing boot sequence.
RJ-45
USB
