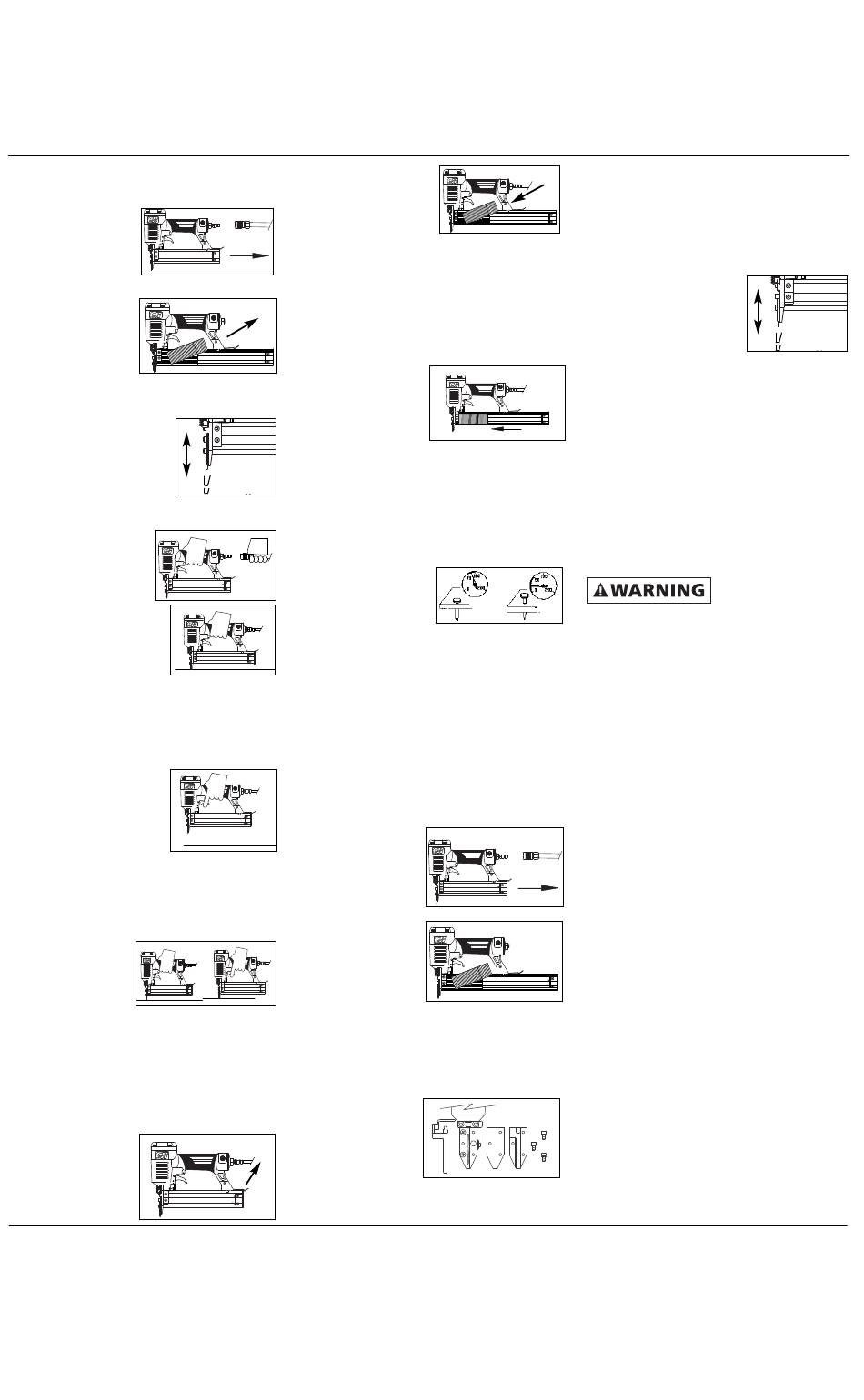

Operating Instructions
CHECKING THE WORK CONTACT
ELEMENT (WCE) (Continued)
1. Disconnect the
air supply from
the nailer.
2. Remove all
nails from the
magazine. (See
"Loading/
Unloading the
Nailer" section.)
3. Make sure the trig-
ger and Work
Contact Element
(WCE) move freely
up and down with-
out sticking or binding.
4. Reconnect air
supply to the
nailer.
5. Depress the Work
Contact Element
(WCE) against the
work surface with-
out pulling the trigger. The nailer
MUST NOT OPERATE. Do not use
the nailer if it operates without
pulling the trigger. Personal injury
may result.
6. Remove nailer from
the work surface.
The Work Contact
Element (WCE) must
return to its original down position.
Pull the trigger. The nailer MUST
NOT OPERATE. Do not use the tool
if it operates. Personal injury may
result.
7. Depress the
Work Contact
Element (WCE)
against the work surface. Pull the
trigger. The nailer MUST
OPERATE.
LOADING/UNLOADING THE NAILER
1. Always connect the tool to the air
supply before loading fasteners.
2. Lift up on the
latch. Pull back
on the maga-
zine cover.
3. Insert a stick of
Campbell
Hausfeld nails or
equivalent (see
"Fasteners" section) into the maga-
zine. Make sure the pointed ends
of the nails are resting on the bot-
tom ledge of the magazine when
loading. Make sure the nails are
not dirty or damaged.
4. Push the maga-
zine cover for-
ward until the
latch catches.
5. Always unload all fasteners before
removing tool from service.
movement
Unloading is the reverse of loading,
except always disconnect the air
supply before unloading.
ADJUSTING THE NAIL PENETRATION
1. Regulate the air
pressure to 50
psi at the nailer.
2. Connect the air supply and test for
penetration by driving nails into a
sample piece of wood. If the nails
do not achieve the desired penetra-
tion, adjust the air pressure to a
higher setting until the desired pen-
etration is achieved. Do not exceed
100 psi at the nailer or durability of
the nailer will be reduced.
CLEARING A JAM FROM THE NAILER
1. Disconnect the
air supply from
the nailer.
2. Remove all
nails from the
magazine (see
"Loading/
Unloading The
Nailer"). Failure to do so will cause
the nails to eject from the front of
the nailer when the nose assembly is
removed.
3. Remove (3)
cap screws
from the nose
Latch
of the tool.
4. Reinstall nose assembly in reverse
5. Make sure the trig-
TECHNICAL SUPPORT
Please call our Nailer hotline at 1-800-
543-6400 with any questions regarding
the operation or repair of this nailer.
If calling from Ohio or outside of the
continental United States, please call,
1-513-367-1182.
Fasteners and Replacement
Parts
18 gauge fasteners (or equivalent - See
"Fastener Interchage Information"). Use
only genuine Campbell Hausfeld replace-
ment parts. Never substitute parts. Do
not use modified parts or parts which will
not provide equivalent performance to
the original equipment. Tool perfor-
mance, safety, and durability could be
reduced. When ordering parts or fasten-
ers, specify by part number.
Nailer Repair
Nailer repairs must be performed by
qualified and experienced service
people ONLY.
Assembly Procedure For
Seals
When repairing a nailer, the internal
parts must be cleaned and lubricated.
Parker O-lube or equivalent must be
used on all o-rings. Each o-ring must be
coated with O-lube before assembling.
A small amount of oil must be used on
all moving surfaces and pivots. After
reassembling, a few drops of 30W non-
detergent oil or equivalent, must be
added through the air line before
testing.
4
Model NB0030
Remove nose plate, spacer and
Work Contact Element (WCE) to
expose jammed fastener.
order in step #3.
ger and Work
Contact Element
(WCE) move freely
up and down with-
out sticking or binding.
Use only genuine
Campbell Hausfeld
movement
