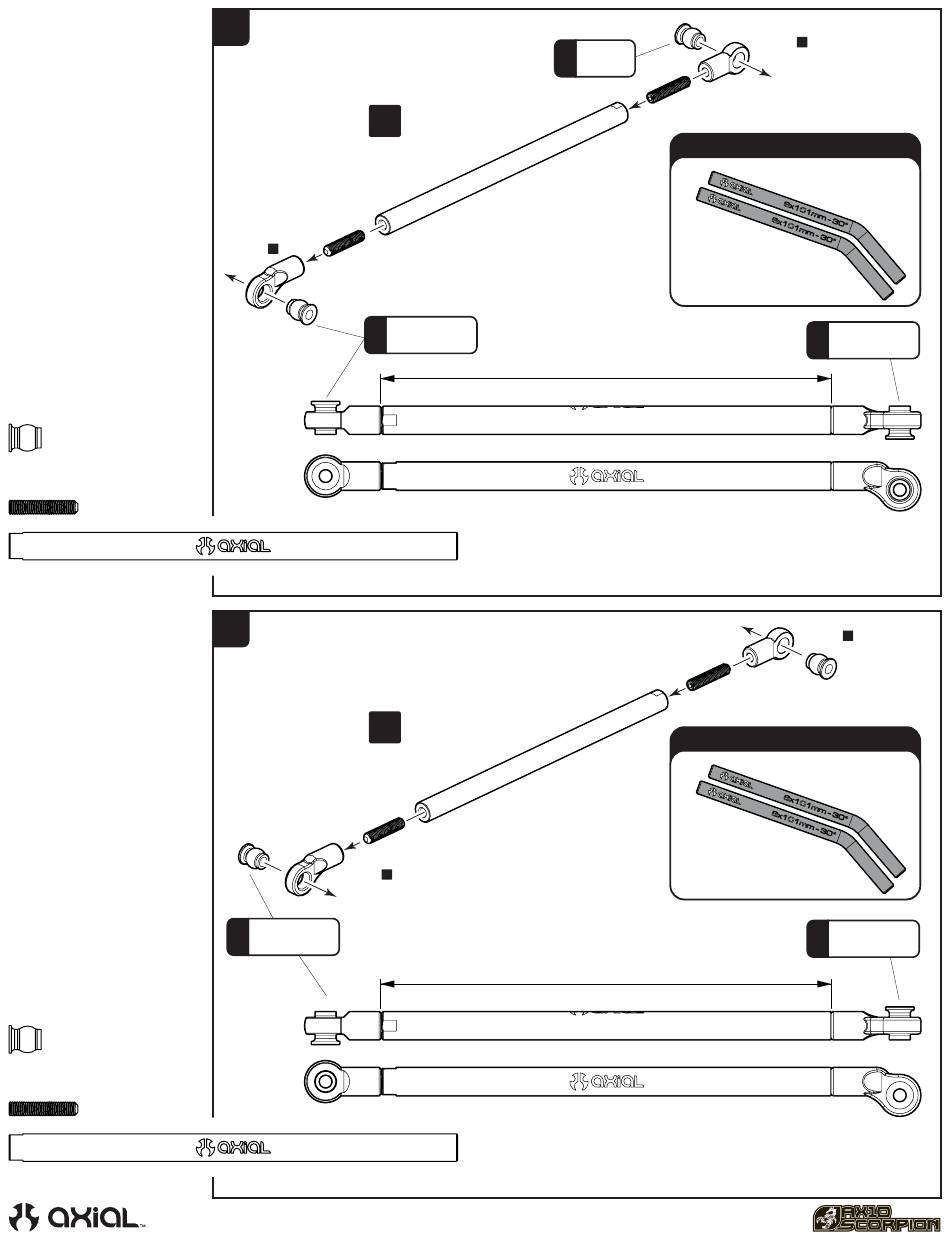

Axial AX10 SCORPION Mode D'emploi page 11

AXA1331
x4
Flanged Ball 3x5.8x7mm
AXA186
x4
M3x16mm Set Screw
AX30443
x2
6x98mm
AXA1331
x4
Flanged Ball 3x5.8x7mm
AXA186
x4
M3x16mm Set Screw
AX30443
x2
6x98mm
6
x2
AX80005 2
AXA186
AXA1331
!
Note Direction
Richtung beachten
7
x2
AXA186
AXA1331
AX80005 2
!
Note Direction
Richtung beachten
!
Note
Direction
AX30443
98.5mm
AX30443
98.5mm
10
AXA1331
AX80005 1
AXA186
Option Parts
AX30445
Threaded Aluminum Pipe
6x101mm - 30° Angle
AX80005
AXA1331
AXA186
Option Parts
AX30445
Threaded Aluminum Pipe
6x101mm - 30° Angle
!
Note Direction
Richtung beachten
1
!
Note Direction
Richtung beachten
