Lindy 38134 Guide Rapide

Quick Guide ENGLISH
HDMI Video Wall Controller Scaler
Introduction
Thank you for purchasing the LINDY HDMI Video Wall Controller Scaler. The HDMI Video Wall Controller Scaler allows
an HDMI input source to be freely arranged on 4 displays (TV or monitor) and or cascaded using multiple units to extend
the HDMI signal to even larger arrays. The Scaler can be controlled via RS-232/Telnet commands or using a software
application available from www.lindy.com.
Package Contents

HDMI 1:4 Video Wall Controller Scaler

Includes Multi-Country (UK/EU/US/AUS) PSU 12V 3A

2 x 19" mounting brackets & screws
Basic Installation
This Quick guide refers to the basic installation of this Scaler, for more detailed instructions please refer to the full user
manual or visit www.lindy.com.
Important! It is strongly recommended that you use 4 identical (Brand and Model) displays for optimum performance.

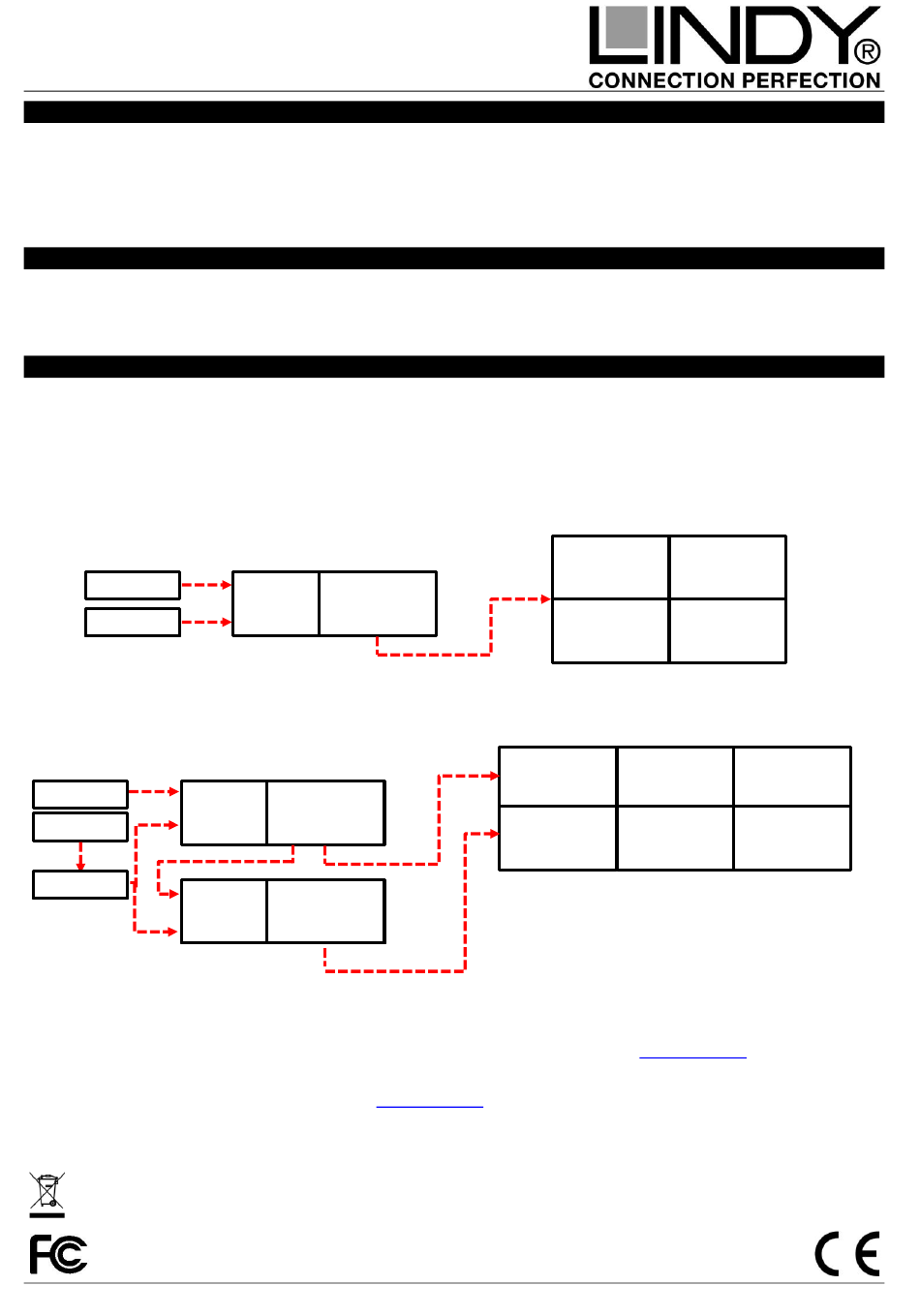

To begin connect your HDMI source to the HDMI IN port, and 4 HDMI displays to the HDMI OUT ports A-D. Connect a
PC or Control device to the Scaler using either a direct RS-232 connection, or a connection via a LAN. By default the
Scaler is set to output a 2 x 2 video wall as shown below.
DVD
PC
To add expand upon the basic 2 x 2 video wall it is possible to cascade further Scalers by connecting Output D to the
HDMI Input of the next Scaler, as shown below. In this set up the PC or Control device should be connected via a LAN
for the most straight forward configuration.
DVD HDMI IN
PC
Control
Router
HDMI IN
Control
This cascading can be repeated up to 75 layers allowing a maximum of 225 displays to be connected.
For instructions on controlling the Scaler beyond its default setting to use a different video wall configuration, adjust
picture properties and add bezel correction please refer to the full user manual or visit
LINDY Contact Address: LINDY Electronics Ltd, Thornaby, Stockton-on-Tees, TS17 9JY, United Kingdom
T: +44 (0) 1642 754000 postmaster@lindy.co.uk
WEEE (Waste of Electrical and Electronic Equipment), Recycling of Products
Electrical and electronic equipment must enter the recycling process instead . Each individual EU member state has
implemented the WEEE regulations into national law in slightly different ways. Please follow your national law when you want
to dispose of any electrical or electronic products. More details can be obtained from your national WEEE recycling agency.
For Home and Office Use.
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH – 1st EDITION (October 2015)
No.38134
HDMI IN HDMI OUT
Control D C B A
HDMI OUT
D C B A
HDMI OUT
D C B A
www.lindy.com
A
C D
A1 B1
A2 B2
www.lindy.com.
B
C1
C2
