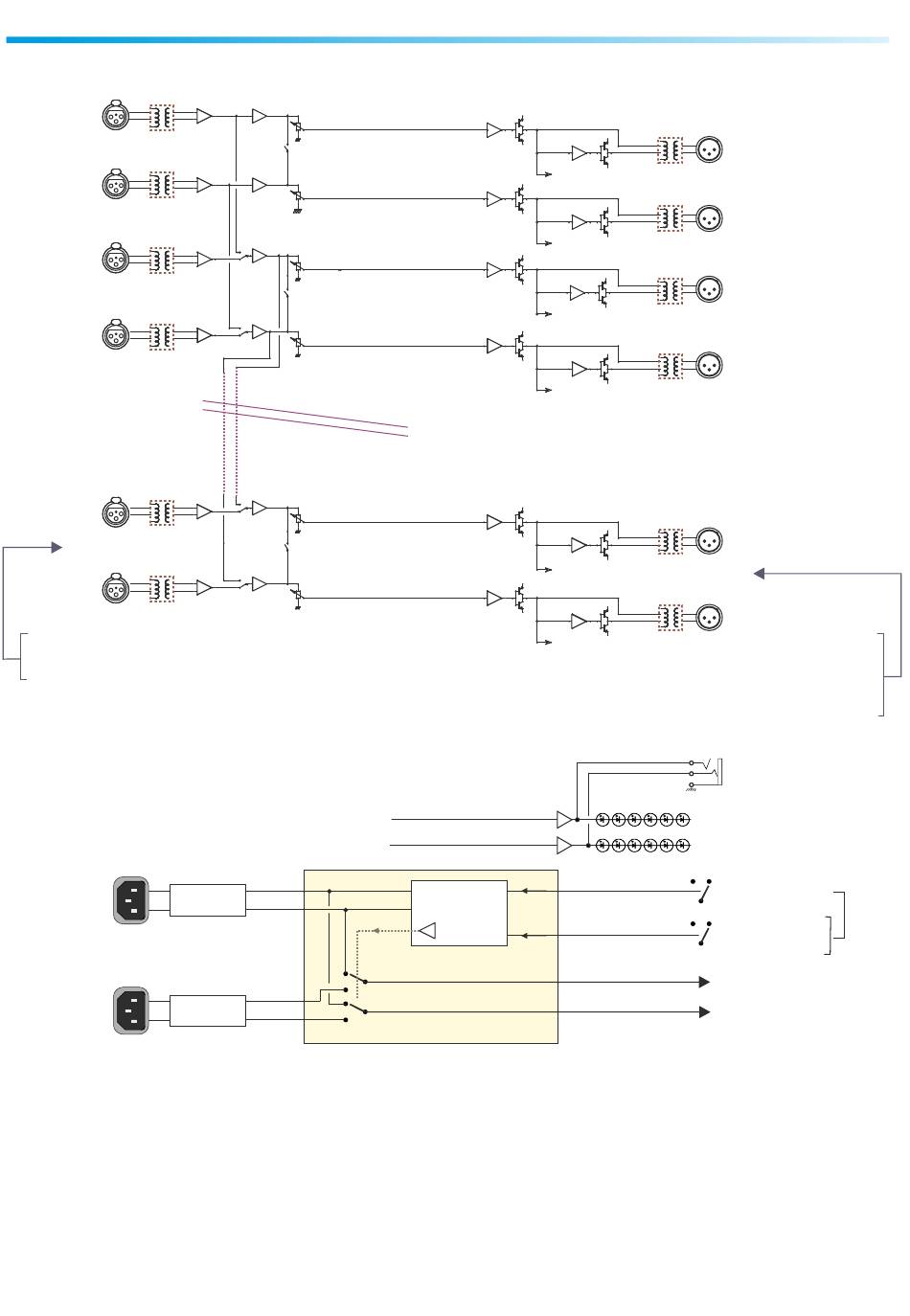

BLOCK DIAGRAM

OPTION
LEFT
BALANCED INPUT 1
RIGHT
OPTION
OPTION
LEFT
BALANCED INPUT 2
RIGHT
OPTION
OPTION
LEFT
OPTION
RIGHT
BALANCED INPUT 8 (version 2 power supplies)
BALANCED INPUT 10 (version 1 power supply)
Main Power
MAIN
30VA
POWER
90 to 260 VAC
SAFE
30VA
POWER
Safe Power
Rami - EXT 220-2
+
MONO
STEREO
+
LINK
+
MONO
STEREO
LINK
+
LINK
+
MONO
STEREO
LINK
+
LEFT CUE
RIGHT CUE
Supply
+V
-V
+V
-V
POWER SUPPLY SUPERVISOR
Supply
LEFT CUE
RIGHT CUE
LEFT CUE
RIGHT CUE
LEFT CUE
RIGHT CUE
only on 8 IN / OUT
13
OPTION
LEFT
BALANCED OUTPUT 1
OPTION
RIGHT
OPTION
LEFT
BALANCED OUTPUT 2
OPTION
RIGHT
OPTION
LEFT
OPTION
RIGHT
BALANCED OUTPUT 8
(version 2 power supplies)
BALANCED OUTPUT 10
(version 1 power supply)
PHONES
PEAK LEVEL
Auto/Manual
Safe Power
Main Power
+V
- V
