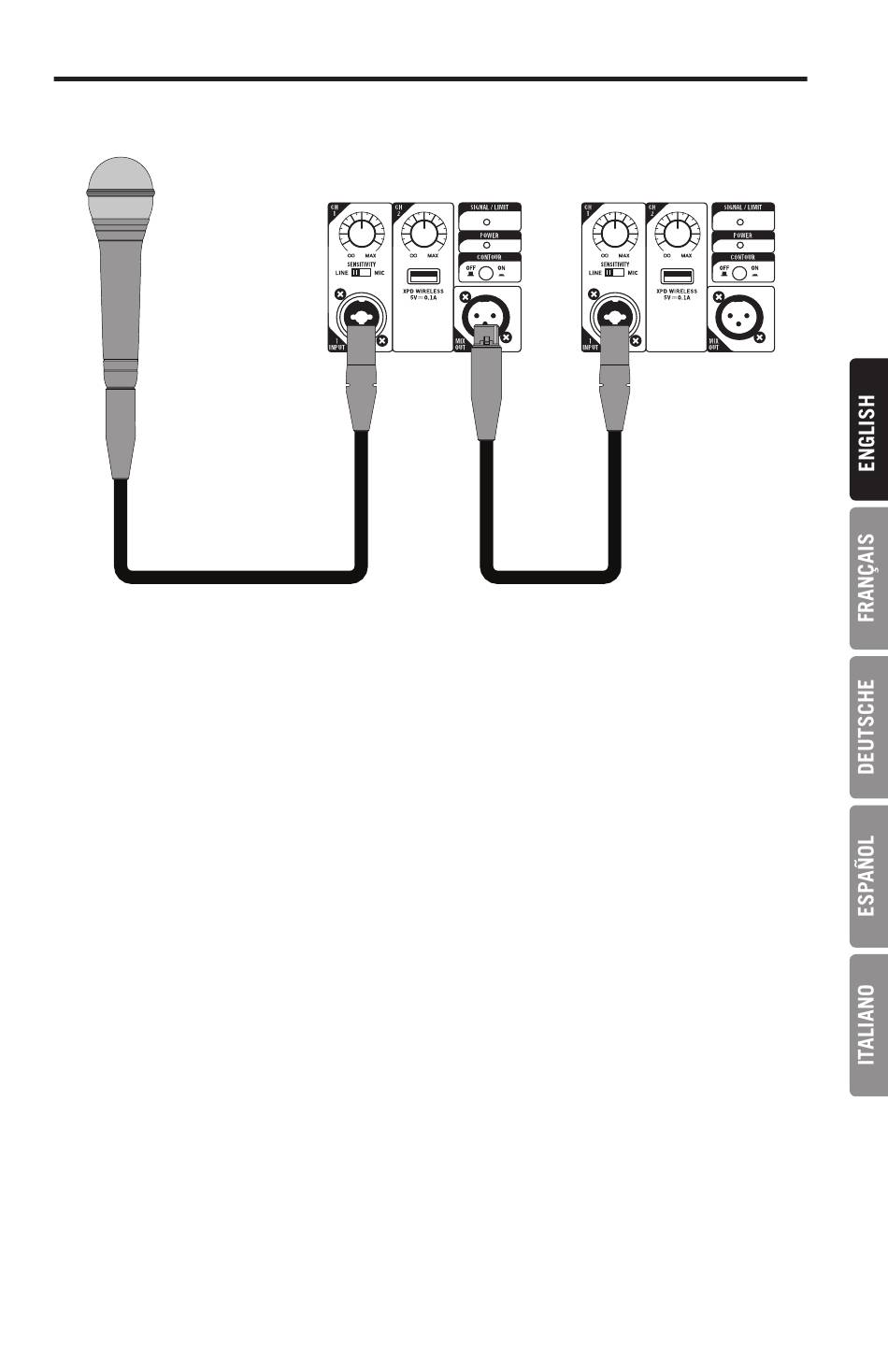

Connecting a Wired Microphone
Follow these steps to connect a microphone level signal to your RL Loudspeaker and daisy-chain
the signal to a second RL Loudspeaker:
•
Set the both RL Loudspeaker's POWER switch to the OFF position.
•
Turn the VOLUME control fully down (counterclockwise).
•
Connect the power cables for each cabinet to an AC socket.
•
Connect a standard XLR cable from the main RL Loudspeaker's MIX OUT to the second RL
Loudspeaker's INPUT 1 XLR input.
•
On the second RL Loudspeaker, set the SENSITIVITY switch to the LINE position.
•
Using a standard XLR cable, plug a dynamic microphone into the RL Loudspeaker's XLR
INPUT.
•
Set the SENSITIVITY switch to the MIC position.
•
Switch the Power switch to the ON position.
•
While speaking or singing into the microphone, slowly raise the VOLUME control until you
have reached the desired level.
•
For larger sound reinforcement you can run several monitors using the Link Output to
daisy-chain one RL Loudspeaker to another. Set the input Sensitivity on the additional
cabinets to the LINE level position.
RL112A/RL115A
7
