NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS

SAFETY PRECAUTIONS

- Always disconnect the power supply before installing or making modifications to the devices.
- The fitting and handling of these devices must be carried out by authorised personnel
- The wiring must run at least 40 cm away from any other wiring.
- On the power supply unit:
Do not overtighten the screws on the connector.
w
Install the power supply unit in a dry protected location free from the risk of dripping or splashing water.
w
wAvoid locations that are humid, dusty or near heat sources.
wEnsure that the air vents are free from obstruction so that air can circulate freely.
wTo avoid damage, the power supply unit must be firmly secured in place.
wTo prevent electric shock, do not remove the cover or handle the wiring connected to the terminals.
( ) CHARACTERISTICS
*
- Video door entry system with simplified wiring (non-polarised 2-wire bus).
- Up to 4 access panels (DP-GB2A distributor required for more than one access panel) per installation.
- Up to 2 apartments (N5110 Vesta7 "1-apartment" kit and N5220 Vesta7 "2-apartments" kit) per
installation.
- Maximum 18 Vesta7 monitors per installation.
- Maximum 16 Vesta7 monitors in one apartment.
- Maximum 4 Vesta7 monitors in parallel (without distributors) per installation.
- Call confirmation tone.
- Visual signals on the door panel for people with impaired hearing (indicating call process,
communication, door open and channel busy).
- Audible signals on the door panel for people with impaired vision (indicating call in progress, missed
call, door open, call finished and engaged).

SYSTEM OPERATION

- To make a call, the visitor must press the button of the apartment; an audible sound indicates that
the call is being made and LED will turn on. If vocal synthesis is enabled, a 'Call is in progress'
message appears indicating that a call is being made. At this moment, the apartment's monitors
receive the call. If another apartment is called by mistake, press the button for the correct
apartment and the first call will be cancelled.
- In systems with several access doors, the other door panel(s) will be automatically disconnected.
If another visitor tries to call, a number of telephone tones will be heard to indicate that the system
is busy and LED will illuminate. If vocal synthesis is activated, the message 'System is busy, try
later' will be indicated on the door panel.
- The call lasts for 40 seconds. The image appears on the monitor (with code 0 'apartment 1' or
code 16 if the call is in 'apartment 2') when receiving the call without the visitor knowing.
If the call is not answered within 40 seconds, LED
- To establish communication, press button
LED will turn on. If the monitor is a VESTA7 GB2/H with icon
hearing aid is between 15 and 25 cm away from the monitor to ensure maximum audio quality
during communication with the door panel.
- Communication will last for one and a half minutes or until button
communication has finished, LEDs and
synthesis is activated, a 'Communication is finished' message will indicate that the call is over.
- To open door 1 or 2, press the corresponding button
processes: one press will activate the lock release for five seconds and LED
for five seconds. If vocal synthesis is enabled, a 'Door Opened!' message will be indicated on the
door panel.
- For a description of the functioning and setup of the monitor, see the monitor's user manual.
( )
For more information, see the TKIT632A VESTA7 user manual (code 50122080).
*
https://doc.golmar.es/search/manual/50122080
.
will turn off and the channel will be freed.
on any monitor in the apartment. Door panel
on the front, make sure that the
is pressed again. When
will turn off and the channel will be freed. If vocal
/ during the call or communication
will also turn on
2
NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS

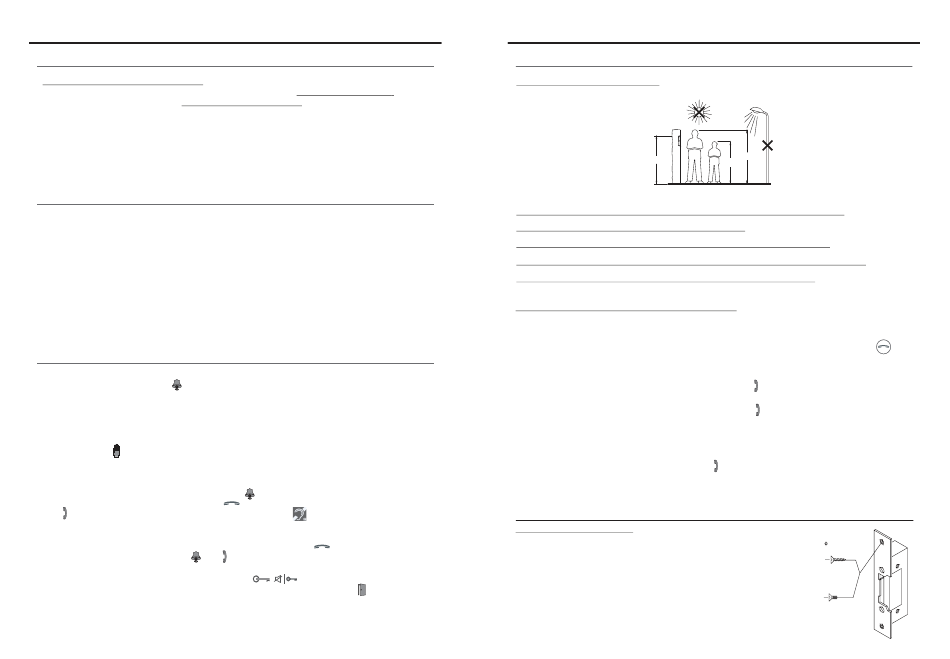

INSTALLATION OF THE DOOR PANEL
( )
*
Positioning the embedding box:
.
Make a hole in the wall to position the top of the door panel at a height of 1.65m.
Hole dimensions: NCEV-90CS embedding box, 99(W) x 132.5(H) x 56.5(D) mm.
( )
*
Description of the door panel illumination LEDs (for low light conditions):
( )
*
Description of the visual signals on the door panel:
( )
* Description of the vocal synthesis (audible signals on the door panel).
( )
*
Selecting the vocal synthesis language and adjusting vocal synthesis volume.
( )
*
Configuring the contact type for Relay 1 and Relay 2 (lock release).
Adjusting the door panel communication volume.
If after starting the system the door panel audio volume seems inadequate, follow these steps:
- Call an apartment.
-When the call is received in the apartment, establish communication by pressing button
the monitor.
- Then press the button used to call the apartment for 3 seconds until a number of confirmation
tones are heard and the door panel communication LED starts to blink.
- Each press on the call button will increase the door panel volume and blink speed of the LED.
.
There are 5 volume settings and the blink speed of LED
blink - low to high volume. After reaching setting 5, maximum blink speed and volume, the next
setting is 1, minimum blink speed and volume (carousel mode).
-
To save the volume setting keep the button pressed until a number of confirmation tones are
heard and the door panel communication LED turns off.
INSTALLATION OF THE LOCK RELEASE
( )
*
Installing the lock release:
If the lock release is to be fitted to a metal door, use a Ø3.5mm drill bit and
thread the hole made. For wooden doors, use a Ø3mm drill bit.
IMPORTANT: The lock release must be Golmar 12V AC or DC.
the AC lock release (TF-104 power supply required), fit the varistor
supplied with the kit directly to the lock release terminals to ensure the
device functions correctly.
( ) For more information, see the TKIT632A VESTA7 user manual (code 50122080).
*
https://doc.golmar.es/search/manual/50122080
1850
1650
1450
will increase for each. Slow to fast
DIN-7972
( ) With
*
M 4 x 8
DIN-963
3
on
3,5 x 25
