AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
You can link up to 9 Ovation P-56FC products at 120 V, 16 products at 208 V, or 17 products at 230 V. Never exceed this
number. Power linking cords can be purchased separately.
AC Plug
Connection
AC Live
AC Neutral
AC Ground
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
Replacing the Fuse
1. Disconnect this product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Ovation P-56FC will work with a DMX controller using a 3- or 5-pin DMX data connection. A DMX Primer is available
from www.chauvetprofessional.com.
DMX Connection
The Ovation P-56FC uses a 3- or 5-pin DMX data connection for its 9 DMX personalities: 1Ch, 3Ch, 5Ch, 7Ch, 10Ch,
12Ch, 13Ch, 15Ch, and HSV. See the User Manual for information about connecting and configuring the product for
DMX operation.
Master/Slave Connection
The Ovation P-56FC uses the DMX data connection for its Master/Slave mode. See the User Manual for information
about connect and configure the product for master/slave operation.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally
along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers
have this capability. The Ovation P-56FC supports RDM protocol that allows feedback to make changes to menu map
options. Download the User Manual from

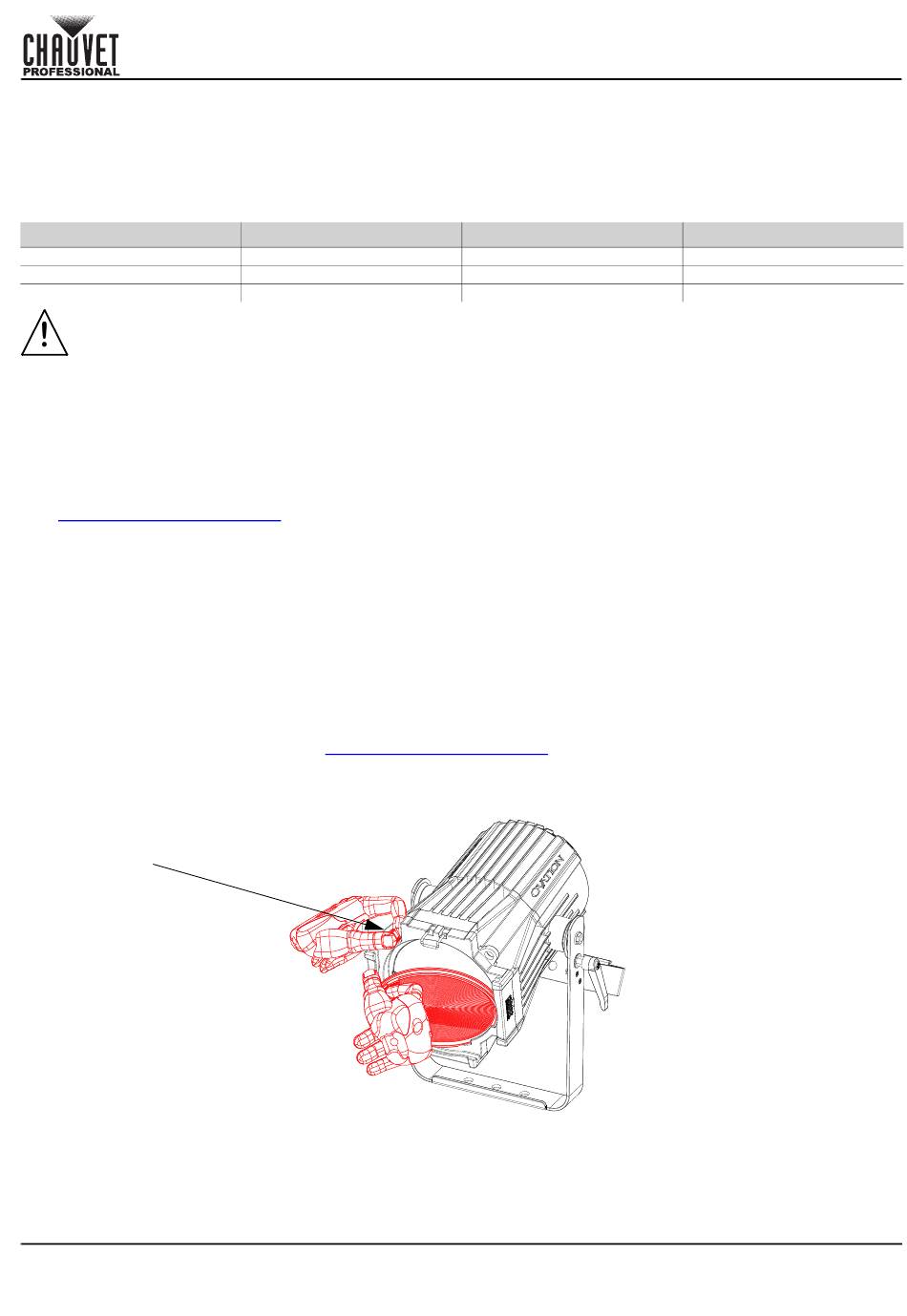

Alternate Lenses
The interchangeable Medium and Wide lenses allow the product to have alternate beam angles.
Pull knob up to
release and
change the lens
Ovation P-56FC QRG Rev. 6
QUICK REFERENCE GUIDE
Wire (U.S.)
Black
White
Green/Yellow
www.chauvetprofessional.com
Wire (Europe)
Brown
Blue
Green/Yellow
for more details.
EN
Screw Color
Yellow/Brass
Silver
Green
