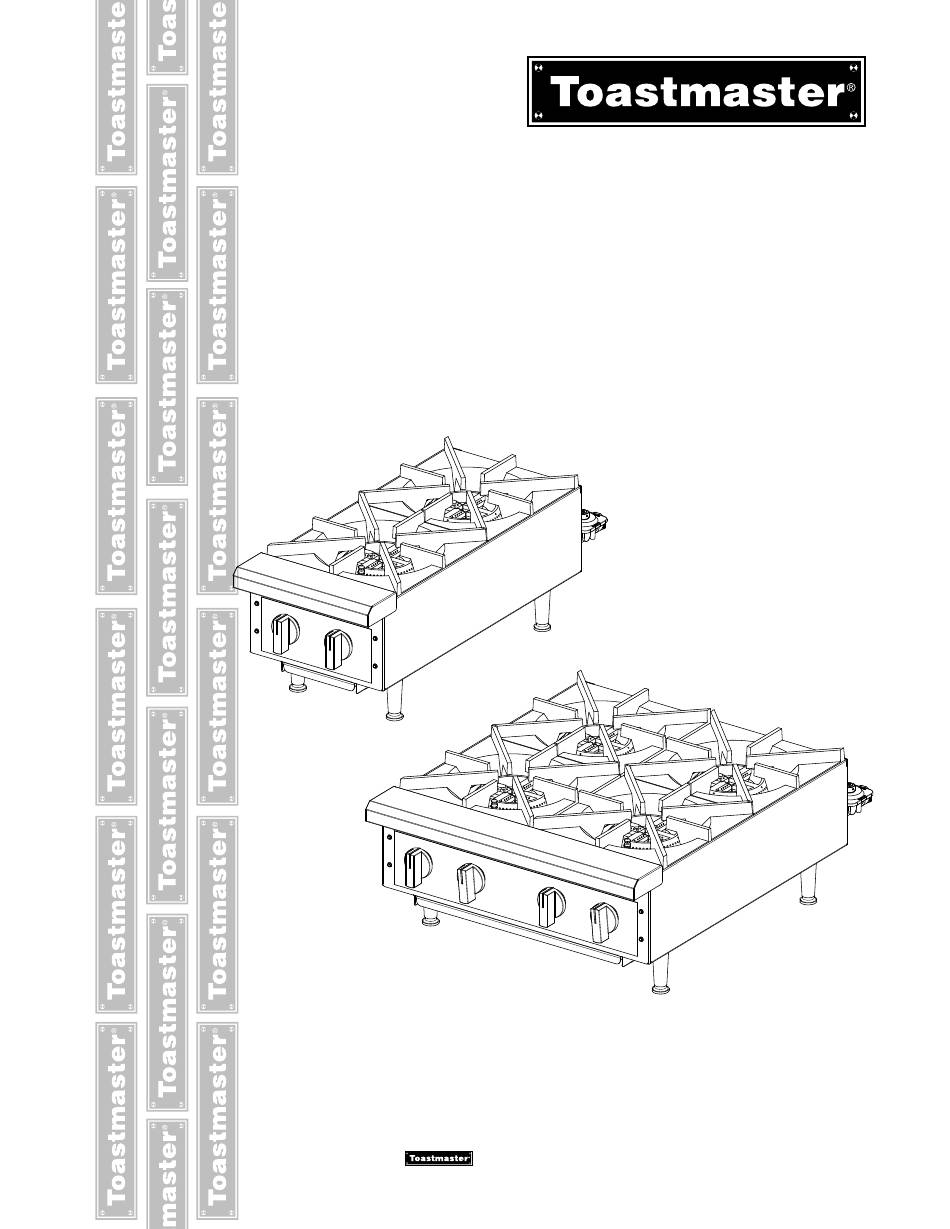

- Page 1 GAS HOT PLATES Models TMHP2, TMHP4, TMHP6 Installation and Operation Instructions 2M-Z12969 Rev. - March 13, 2013 TMHP2 TMHP4 is a registerd trademark of Toastmaster, A Middleby Company. All rights reserved.
-
Page 3: For Your Safety
GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. For equipment to be used by the general public, please CAUTION contact the factory. -
Page 4: Pressure Regulator
CLEARANCE Minimum wall clearances for the sides and back of the models contained in this manual shall be as follows: Combustible Non-Combustible Wall Wall Hotplates 9" 0" PRESSURE REGULATOR A convertible pressure regulator set at 6" water column for use on natural gas is furnished. (For LP models the regulator is set for 10"... -
Page 5: Lighting Instructions
LIGHTING INSTRUCTIONS The appliance is equipped with standing pilots; each pilot is located in front of the burner on Models TMHP2, TMHP6. Pilots should be lighted immediately after the gas is turned on by the manual shutoff valve. 1. Turn control knobs to "OFF" position. - Page 6 MODEL: TMHP2, TMHP4, TMHP6 Gas Hotplates SK2431 REV - 8/26/09...
-
Page 7: Parts List
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. is a registerd trademark of Toastmaster, A Middleby Company. All rights reserved. - Page 8 IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. is a registerd trademark of Toastmaster, A Middleby Company. All rights reserved.
