16.2 Position sensor signal check

This function can check position sensor and principal axis and main board circuit whether damage.
Slowly turn principal axis, right side LED display number appear change, clockwise turn, and value increases. Turn
counterclockwise, value diminishes, correct value change is between 0 to 63.
Press ALU key, enter distance sensor check.
Press C key to exit.

16.3 Distance sensor signal check

This function can check distance sensor and main board signal circuit whether damage.
From 16.2 press ALU key enter, ect figure 16-2, move measure scale, value will be change, value follow move more increase.
Press ALU key, enter diameter sensor signal check.
Press C key exit.

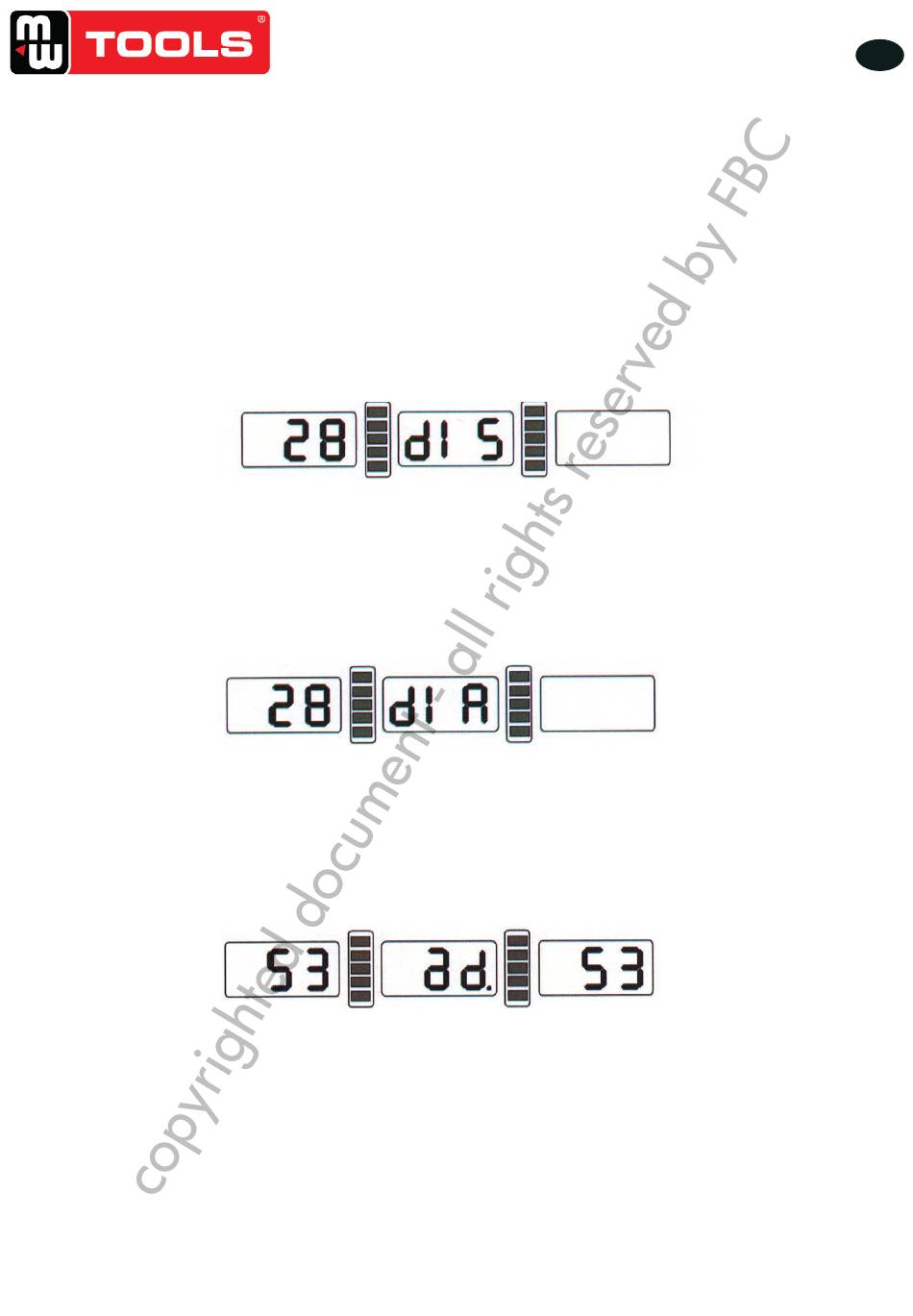

Fig. 16-2

16.4 Diameter sensor signal check

This function can check diameter sensor and main board signal circuit whether damage.
From 16.3 press ALU key enter, ect figure 16-3.
Turn measure scale, value will be change, turn counterclockwise, value increases, turn clockwise, value diminishes.
Press ALU key, enter press sensor signal check.
Press C key exit.
Fig. 16-3

16.5 Press sensor signal check

This function can check press sensor and main board signal circuit and power supply whether damage.
From 16.4 press ALU key enter, ect figure 16-4.
Gently press principal axis, right and left LED display value will be change.
Press ALU key to enter press sensor signal check.
Fig. 16-4
