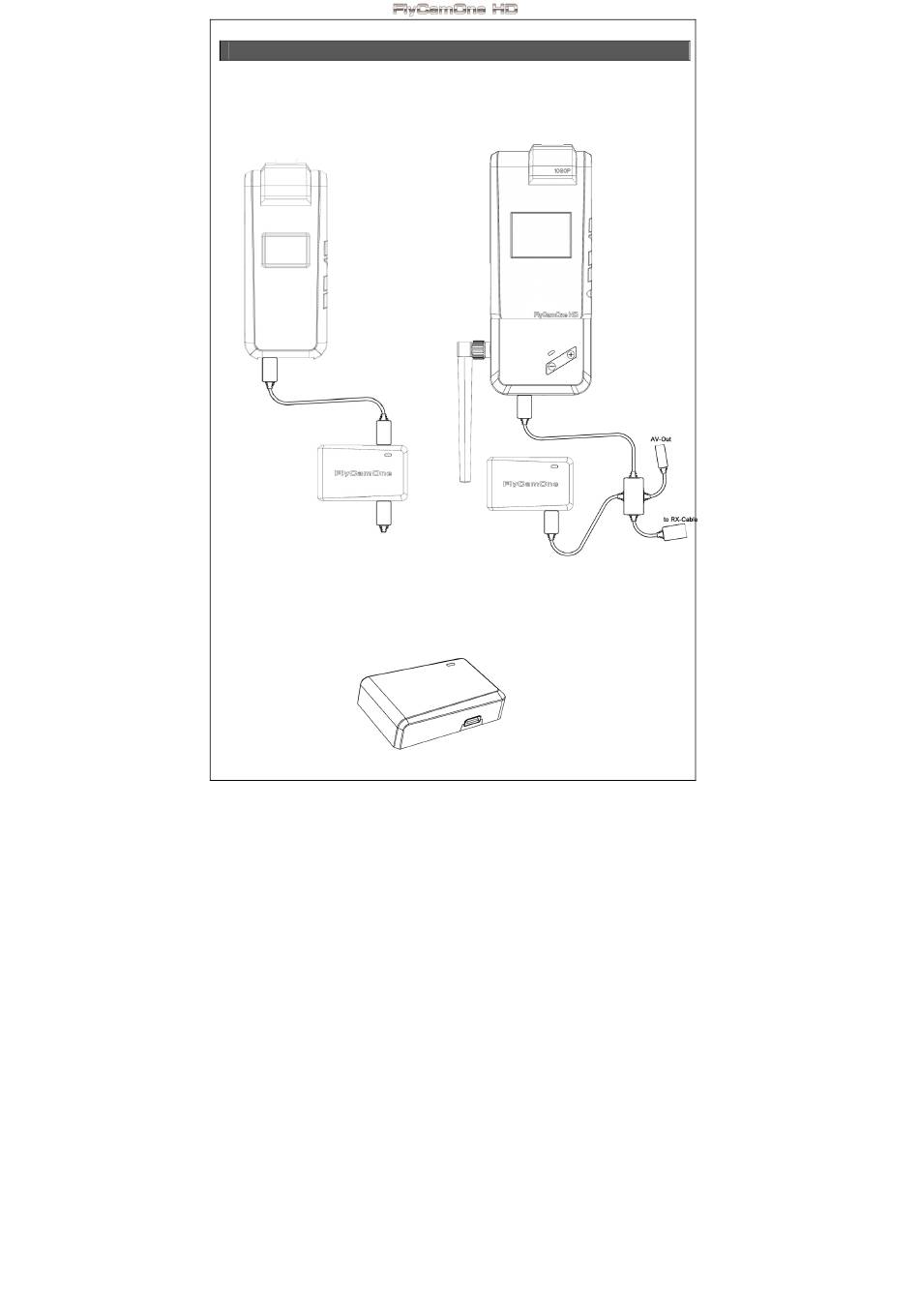

Installation of the GPS-Module
The supplied cables offer various setups of the GPS- Module – parallel or in circuit at the
10Pin-bus-system of the cam. Be sure that the „FlyCamOne"- logo on the module itself points
to the sky and is not hidden through other items.
100mm Cable
RX or CarCamOne Cable
The recording of the GPS Data starts automatically as soon as the module gets plugged –
activation is not necessary.
In order to receive correct data, the module has to be connected before the recording
starts – otherwise the height and the distance to the starting point cannot be detected
correctly! Make sure to fix the module for right G-Data and right direction!
Front side
pointing to
Driving /Flying Direction
X- Cable
