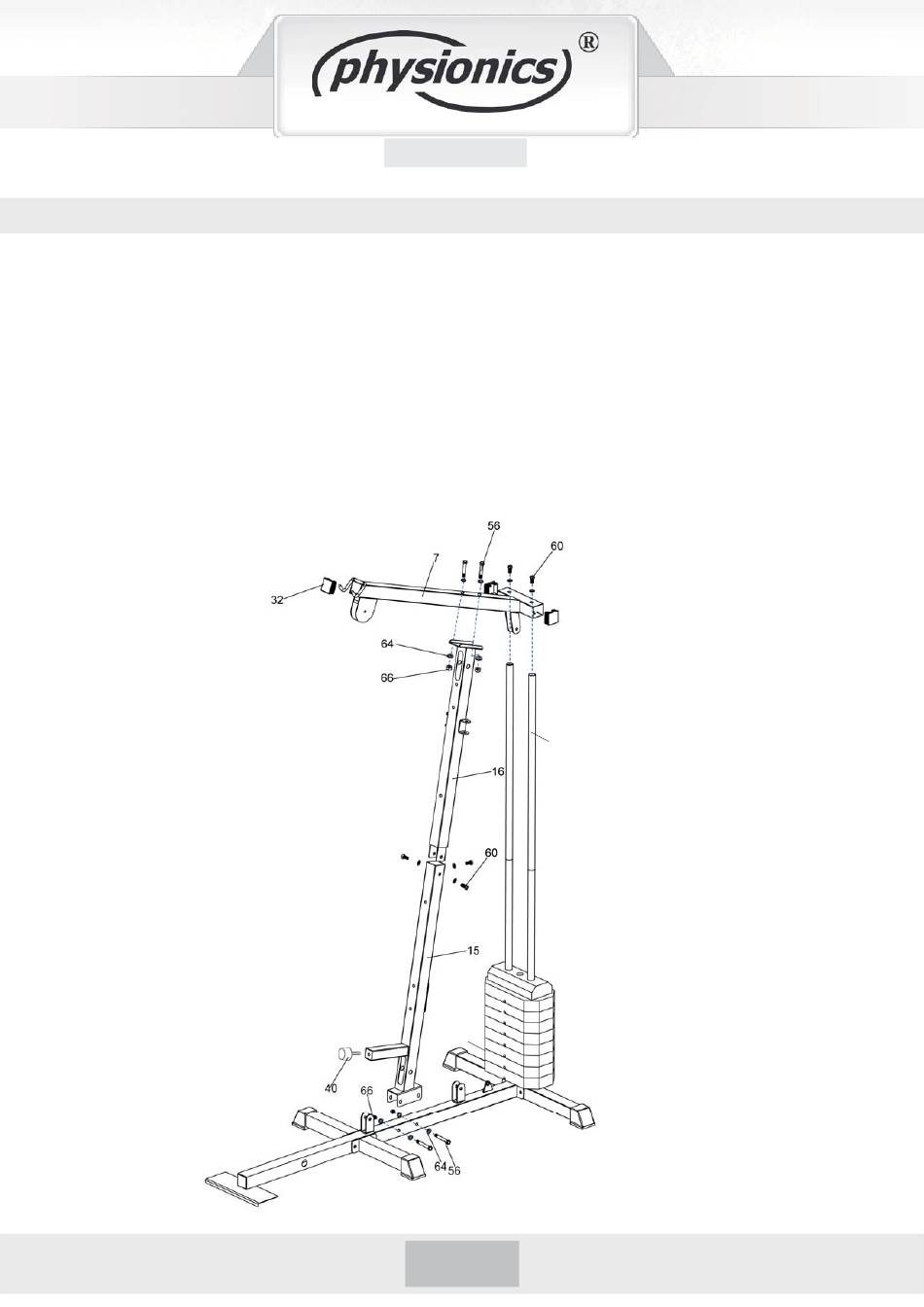

Assembly of the main frame
1. Screw together the main frame(down) (15) with middle base tube (2), secured with parts hex bolt
(56-2pcs), washer (64-4pcs) and nylon nut (66-2pcs).
2. Insert the main frame(up) (16) into the main frame(down) (15), secured with parts hex bolt (60-
3pcs) and washer (64-3pcs).
3. Put the ridge tube (7) onto top of the main frame (up) (16), secured with parts hex bolt
(56-2pcs),washer (64-4pcs) and nylon nut (66-2pcs).
4. Firmly connect the ridge tube (7) and the guiding tubes (5-2pcs), secured with hex bolt (60-2pcs)
and washer (64-2pcs).
5. Attach the rubber cushion(40) to the main frame(down) (15).
