 Full electronic protection (Reverse Polarity, Over-Current, Short-Circuit, Over-
Temperature, etc.)
 High efficiency.
 DIN rail compatible (A DIN rail or top-hat rail is a standardized 35 mm wide metal rail with
hat-shaped cross section.)
 Negative ground.
Power Output: 450 Watt @ 12V (Max 450W) / 500 Watt @ 24V (Max 600W)
Charge Voltage: 12V / 24V (auto detect)
Input Voltage: 5~75 Vrms
Efficiency: >97-99%
Battery Type: 12V/24Volt
Dimensions: 9" X 5" X 3" or 22.9 X 12.7 X 7.6 cm
Weight: 3lbs
Preparation:

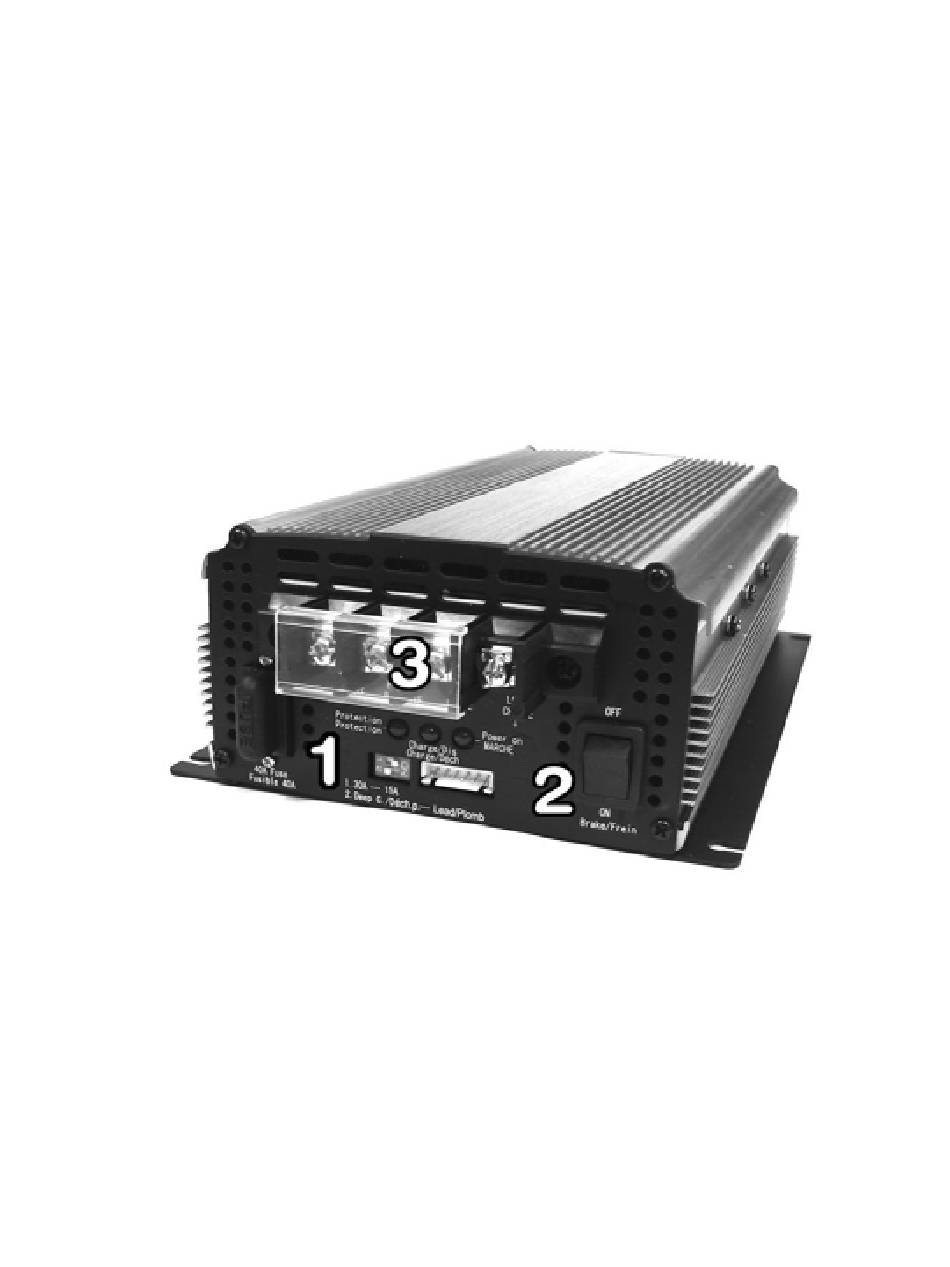

Fig 1: #1Switch, #2Manual brake, #3LED's
1. The control can be set to maximum charge current, however the setting depends on the
battery capacity (our suggestion would be 30A for 100AH high capacity chargeable
battery).
2. ON/OFF Rocker Switch
battery and deep cycle battery (A deep cycle battery requires a higher charging voltage).
3. LED Indicator Light. (Green = Power On, Red = Overload)
can also set the battery type for normal chargeable lead acid
