Flash Patterns:
The units can be configured to flash the following patterns (in the order below) by momentarily making contact with the blue wire
and the negative as described in the wiring section. The LED head must be powered through the black and red wires to allow
pattern selection.
Mode
Pattern
P1
ECE R65 Single Flash A.
P2
ECE R65 Single Flash B.
P3
ECE R65 Single Flash ALT.
P4
ECE R65 Double Flash A.
P5
ECE R65 Double Flash B.
P6
ECE R65 Double Flash ALT.
Key
SFPM
Single Flashes Per Minute
DFPM
Double Flashes Per Minute
OPERATE VOLTAGE
DC 9~32V
OPERATE CURRENT
Max. 1.8A
LED COLOUR
Amber
Blue
Red
White
OPERATE TEMPERATURE
-30°C~+ 55°C
MAX. HUMIDITY
95%
PATTERNS
7 FLASH PATTERNS (Including Cruise)
Wire function
Red wire= +VDC: Black wire= -VE: Blue (to
-VE)=Pattern change, Blue (to +VE) = Dim
function : Yellow=Synchronize & cruise
Tapping timing
Function
0 ~ 1 sec
NEXT PATTERN
1 ~ 3 sec
PREVIOUS PATTERN
3 ~ 5 sec
FACTORY DEFAULT(P4)
OVER 5 sec
LAST PATTERN
ECE Regulation 10 (Electromagnetic Compatibility)
This product is marked to show approval to the ECE 'R10'. To maintain compliance with this Regulation it is necessary that good installation practice
is followed and the installation should be carried out by a qualified electrician. The supply cable should be kept away from other sensitive cables
(e.g. radio antenna, ABS system etc.). If this is not possible, cross the cables at right angles to minimise coupling.
To mount the lamp, drill four M5 clearance holes in the required position in the vehicle, to match the four fixing holes on the SecuriLED. A further
hole will be required to allow the cable to enter the vehicle (See diagrams 1 & 2 for measurements). Fit the SecuriLED using the four M5 screws and
nuts as shown in the diagram below, with the gasket provided between the SecuriLED and the vehicle. Recommended tightening torque - 1.5Nm.
Diagram 1.
Page 2 of 3
P/N 920-5110-00 (Rev E) 2018-11-06
Description
Sync
123 SFPM Phase A
YES
123 SFPM Phase B
YES
123 SFPM Alternating
YES
123 DFPM Phase A
YES
123 DFPM Phase B
YES
123 DFPM Alternating
YES

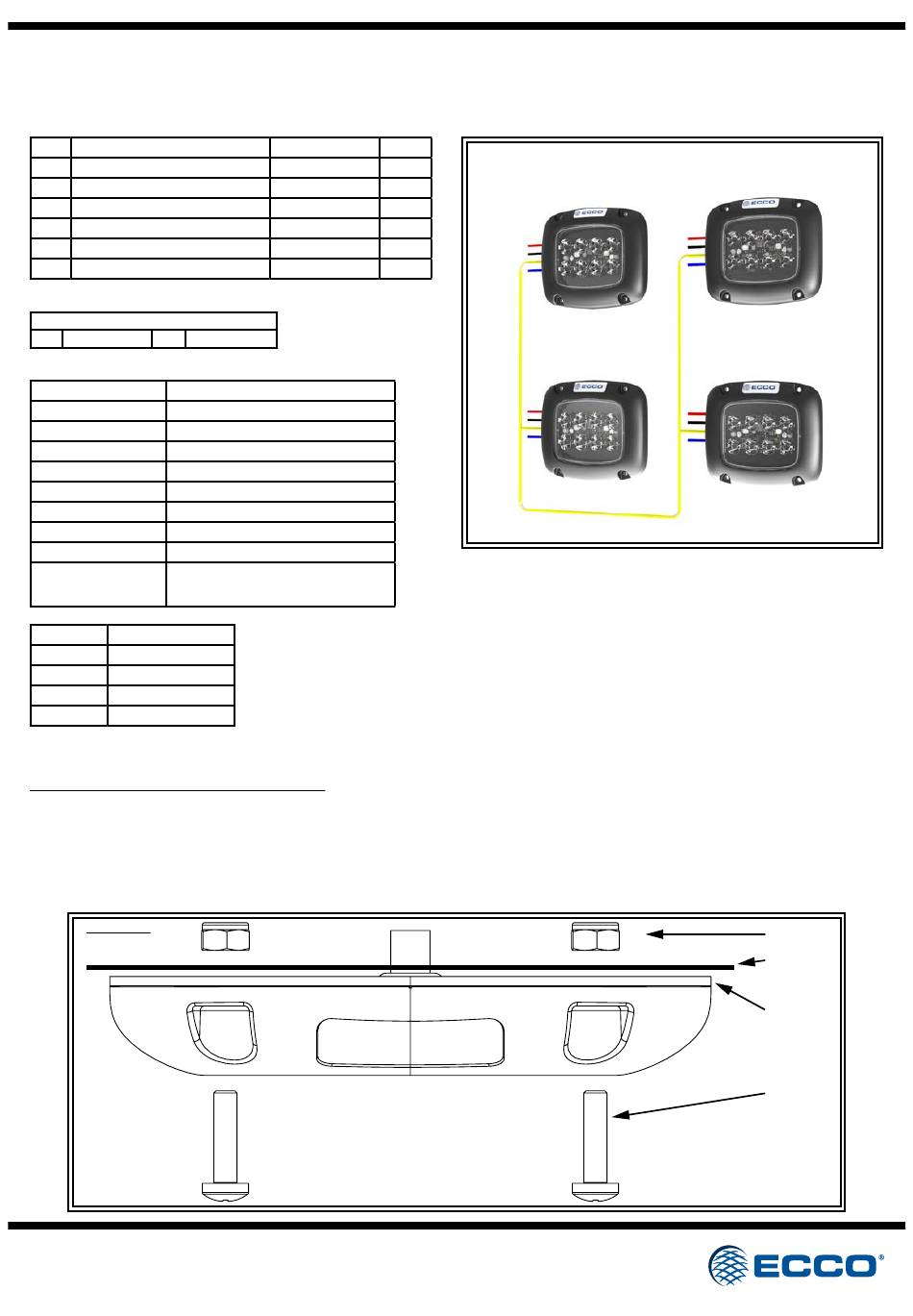

SecuriLED Synchronisation Wiring Diagram
M5 Nut
Panel
Gasket
M5 Screw
