Overview
The Alert can be used to monitor motion in up to
8 locations up to 1000' from the Base Station. The
Passive Infra-Red sensor detects movement of
people and vehicles, while allowing small animals to
pass through undetected. When the PIR Motion
Sensor detects movement a signal is sent to the Base
Station which alerts the user with sounds and lights.
The PIR Motion Sensor has a built-in microphone that
lets you hear what is going on outside and speak with
a person on the other end. The Alert can also
remotely control a low voltage electrical device near
the PIR Motion Sensor like a light or a camera. The
Alert system is compatible ONLY with the Models
PIRV400R and AOSV Motion Sensors.

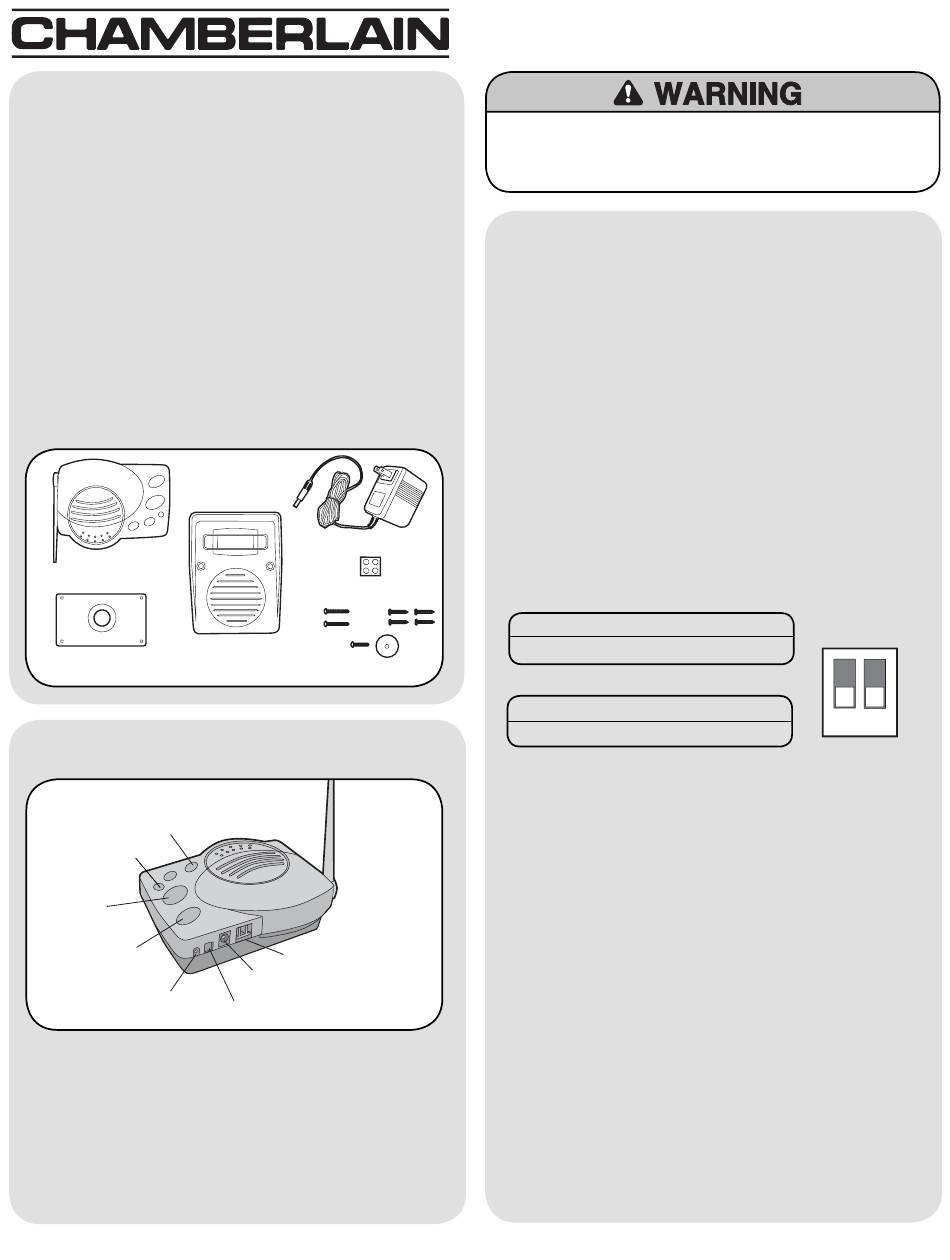

Carton Inventory
Base Station
Passive Infra-Red (PIR)
Mounting Plate
Motion Sensor
Operation & Features
Volume Button
Microphone
Talk
(Power - On)
Remote Activation
Button
Learn Button
Intercom Feature: When PIR Motion Sensor has
detected motion, the Base Station will allow you to
listen through the PIR Motion Sensor for 10 seconds.
If you wish to talk to the person on the other end,
hold down the Talk button and speak, releasing it to
hear.
AC Adapter
Rubber Pads
Swivel Bushing
Relay Output Contacts
AC Adapter
Switch #1: Mute
Switch #2: Tone
Models RWV400R & CWV1000
®
To prevent possible SERIOUS INJURY or DEATH from
electrocution, outputs are suitable ONLY for controlling low
voltage devices, 24V max, ac or dc.
Volume: Pressing the Volume button repeatedly will
cycle through volume levels.
Mute: To temporarily mute Base Station, hold the
Volume and Talk buttons down for three seconds.
The Base Station will reactivate after one hour, or by
pressing the Talk button.
Remote Button: If there is an accessory device
connected to the relay on the PIR Motion Sensor, it
can be activated by pressing the Remote button
within 30 seconds of the signal from the alert buzzer.
On/Off: To turn Base Station OFF hold down the
Volume button until a beep is heard and light goes
out. To turn Base Station ON press the Talk button.
Switch #1:
OFF Speaker Muted
ON Speaker On (Default)
Switch #2:
OFF Long Beep
ON Short Beep (Default)
Battery: The AA Alkaline batteries (not provided) will
last up to 2 years depending on use (Lithium batteries
recommended for colder environments). If PIR Motion
Sensor batteries are low Base Station will emit three
high-pitch beeps every ten minutes. If Base Station
batteries are low it will emit two high-pitch beeps.
Clear Memory: Press and hold the Learn button on
the Base Station until 3 beeps are heard. If PIR
Motion Sensor signals while Learn button is pressed,
repeat the procedure.
Programming Additional PIR Motion Sensors:
Each Base Station can learn the code of up to 8 PIR
Motion Sensors, responding with multiple buzzes. To
program additional PIR Motion Sensors see Step 6.
1
Wireless Alert
OFF
1 2 ON
