1.2 Mounting Brackets

The chassis includes mounting brackets that allow it to be mounted in any convenient space.
They may be installed in either of two orientations.

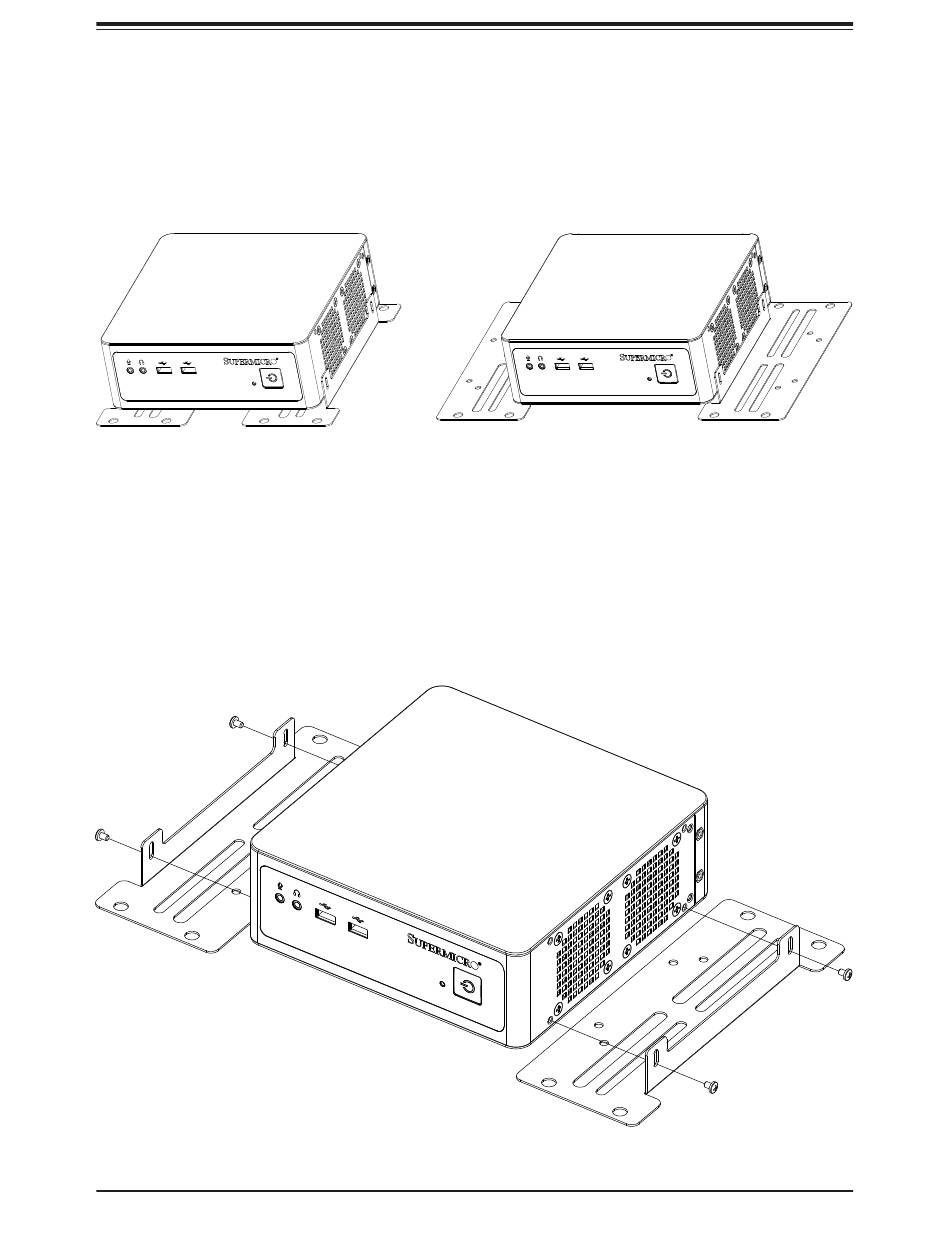

Figure 1-3. Brackets Under Chassis

Installing Mounting Brackets

Install the brackets, using two screws through the holes in each bracket to secure the
1.
bracket to the chassis.
Secure the brackets to the surface where you want the server to be mounted.
2.
Figure 1-4. Installing Mounting Brackets (Brackets under the chassis)
Figure 1-4. Brackets Extending from Chassis
9
Chapter 1: Introduction
