SkyRack SR-KR-301 Manuel D'instructions

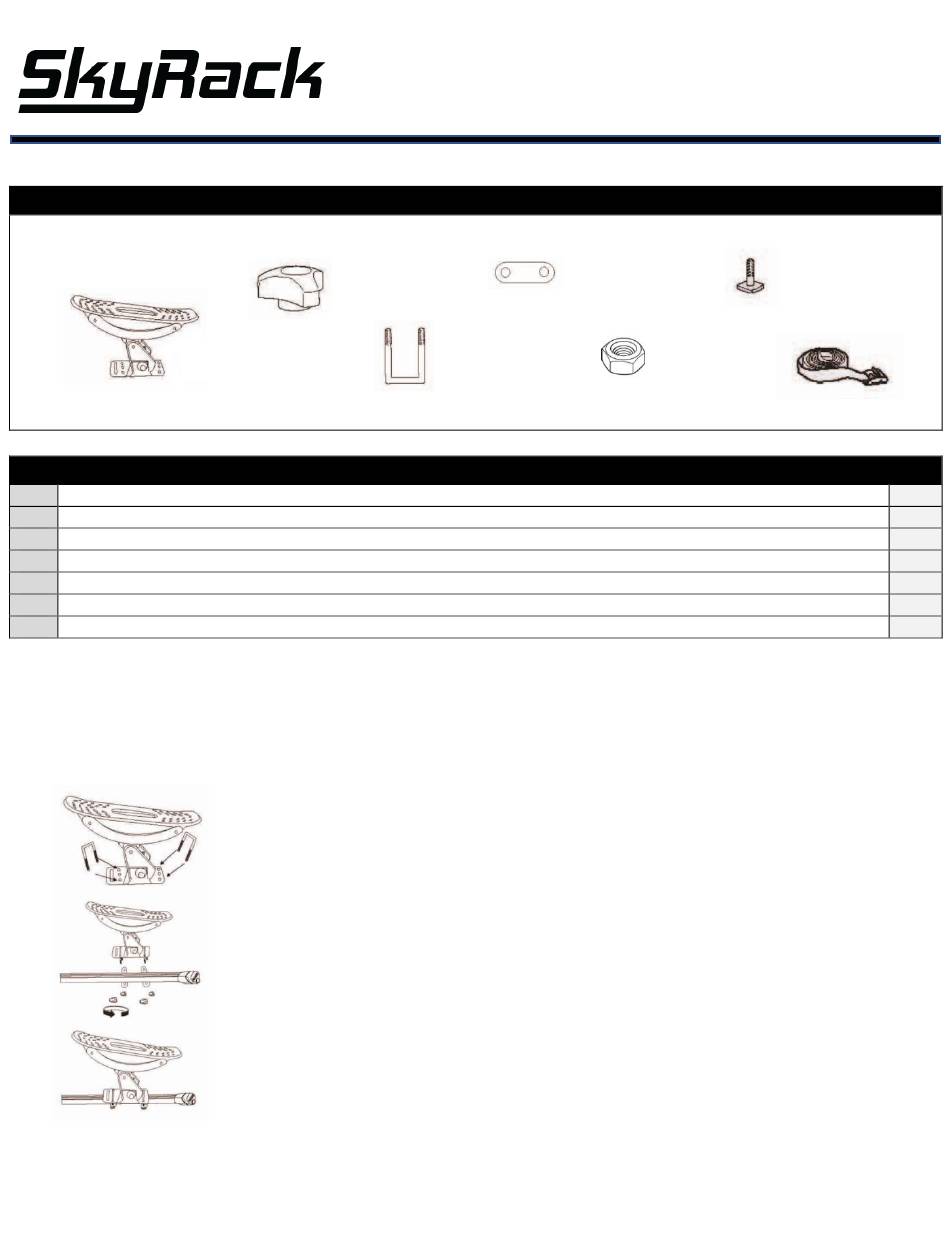

PARTS INCLUDED
➊
PARTS LIST • DESCRIPTION • QTY.
1 Skyrack Kayak Saddle Carrier
2 Knob Nut
3 U Bolt
4 U Bolt Washer
5 Regular Nut
6 T Bolt
7 Tie Down Strap (5' x 1")
MOUNTING INSTRUCTIONS
SQUARE CROSSBARS
(Parts needed: 16x Knob Nut, 8x U Bolt and 8x U Bolt Washer)
➊
➋
➌
__________________________________________________________________________________________
Skyrack Canada • (514) 919-6134• info@skyrack.ca • www.skyrack.ca
SKYRACK KAYAK SADDLE CARRIER
MODEL # SR-KR-301
➋
➌
1- Take each Kayak Saddle Carrier and insert the U Bolt (#3) on the left and right side of the carrier
as shown.
2- Take the Kayak Saddle Carrier and install it on the square crossbar. Insert the U Bolt Washer (#4)
under the crossbar and loosely attach it with the Knob Nut (#2) as shown. Position the Kayak Saddle
Carrier for the approximate width of your kayak. It may be necessary to readjust the distance
between your Kayak Saddle Carrier. Ensure that there is clearance between crossbars and hull.
Position saddles so top edge contacts side of the kayak.
3- Securely tighten all the Knobs Nut (#2).
➍
➎
INSTRUCTON & ASSEMBLY SHEET
➏
➐
4
16
8
8
8
8
2
1
