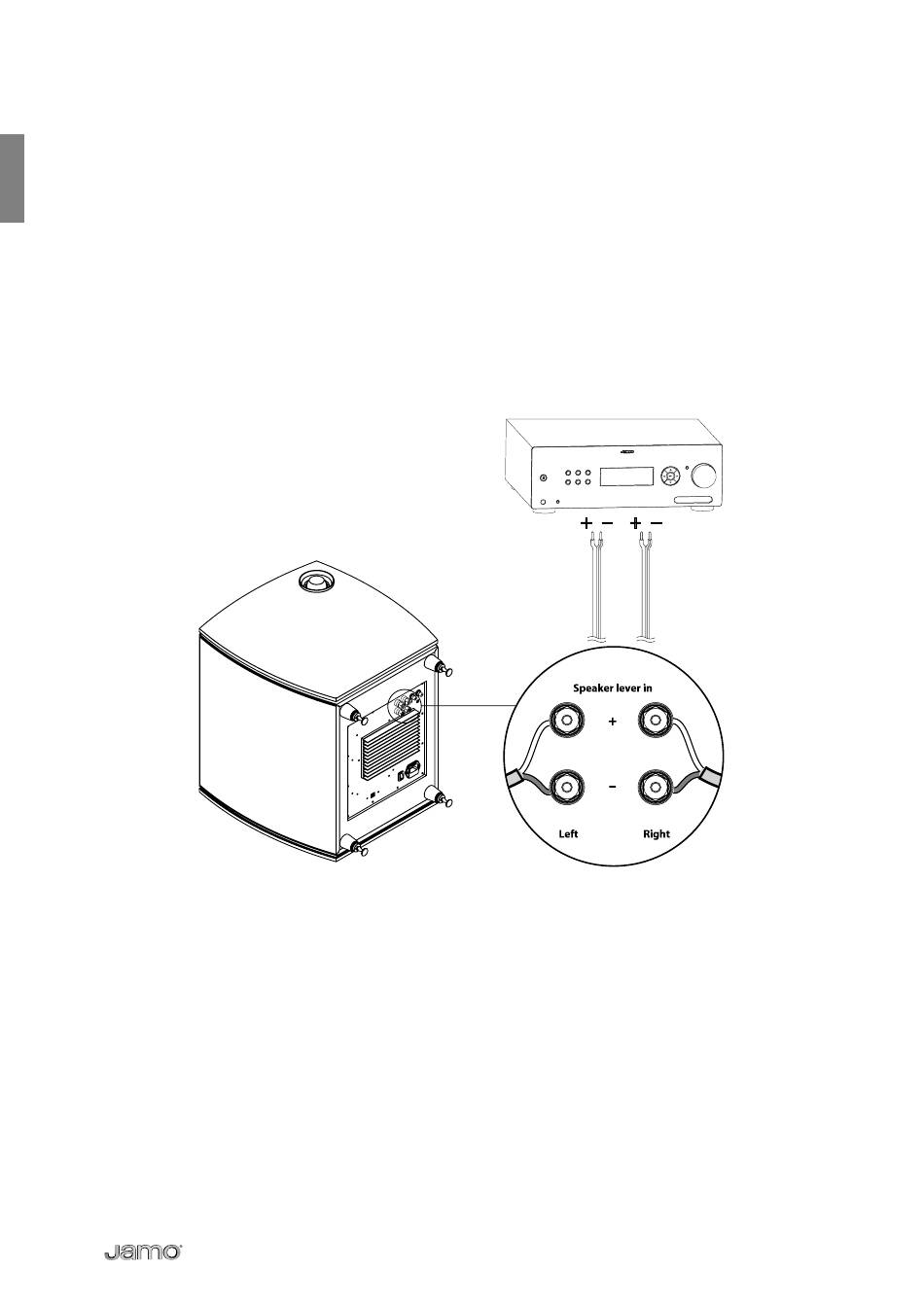

Speaker level input terminals

If you don't have a subwoofer out, you can connect the amplifi er's speaker output
directly to the speaker-level input terminals on the C 80 SUB.
Remember to connect both the left and right speaker outputs from the amplifi er
to the left and right input if you have just the one subwoofer connected. If only
one channel is hooked up, the C 80 SUB will only reproduce the low frequencies
contained in that channel.
Always remember to connect "+" and "-" from the amplifi er to the corresponding
"+" and "-" terminals on the subwoofer speaker level input.
