Vollrath Cayenne HPA1002 Instructions D'installation page 2

CONVERSION
WARNING
Fire, Injury, Death Hazard
Before beginning the conversion, you must turn OFF the gas
supply valve at the manual shutoff and disconnect the
equipment from the supply line.
Remove the orifice from each main burner
1. Lift to remove each burner grate.
2. Lift to remove the main burner. Slightly rotate the burner to make it
easier to remove. Take care not to damage the pilot burner.
3. The brass orifice, located on the end of the burner control valve, will
now be exposed. Use a 13mm wrench to remove the orifice.
Install the new orifice on each main burner
NOTICE: Derate at Altitudes Above 2000 ft (610m)
Ratings of gas utilization equipment are based upon
operation at sea level and shall not be changed for
operation at elevations up to 2000 ft (600m).
For operation at elevations above 2000 ft (600 m),
equipment ratings shall be reduced, at the rate of 4 percent
for each 1000 ft (300 m) above sea level, when calculating
how to select appropriately-sized orifices.
1. Apply a small amount of jointing paste to the thread on the end of
the control valve.
2. Install and tighten the new orifice.
3. Replace the main burner.
4. Replace the burner grate.
®
2 Cayenne Gas Hot Plate – Conversion to LP Gas Installation Instructions
Adjust the gas regulator
Follow the steps below to adjust the gas regulator to operate at 10" WC
for use with LP gas.
1. Use a 22mm wrench to remove the conversion cap from the top of
the regulator.

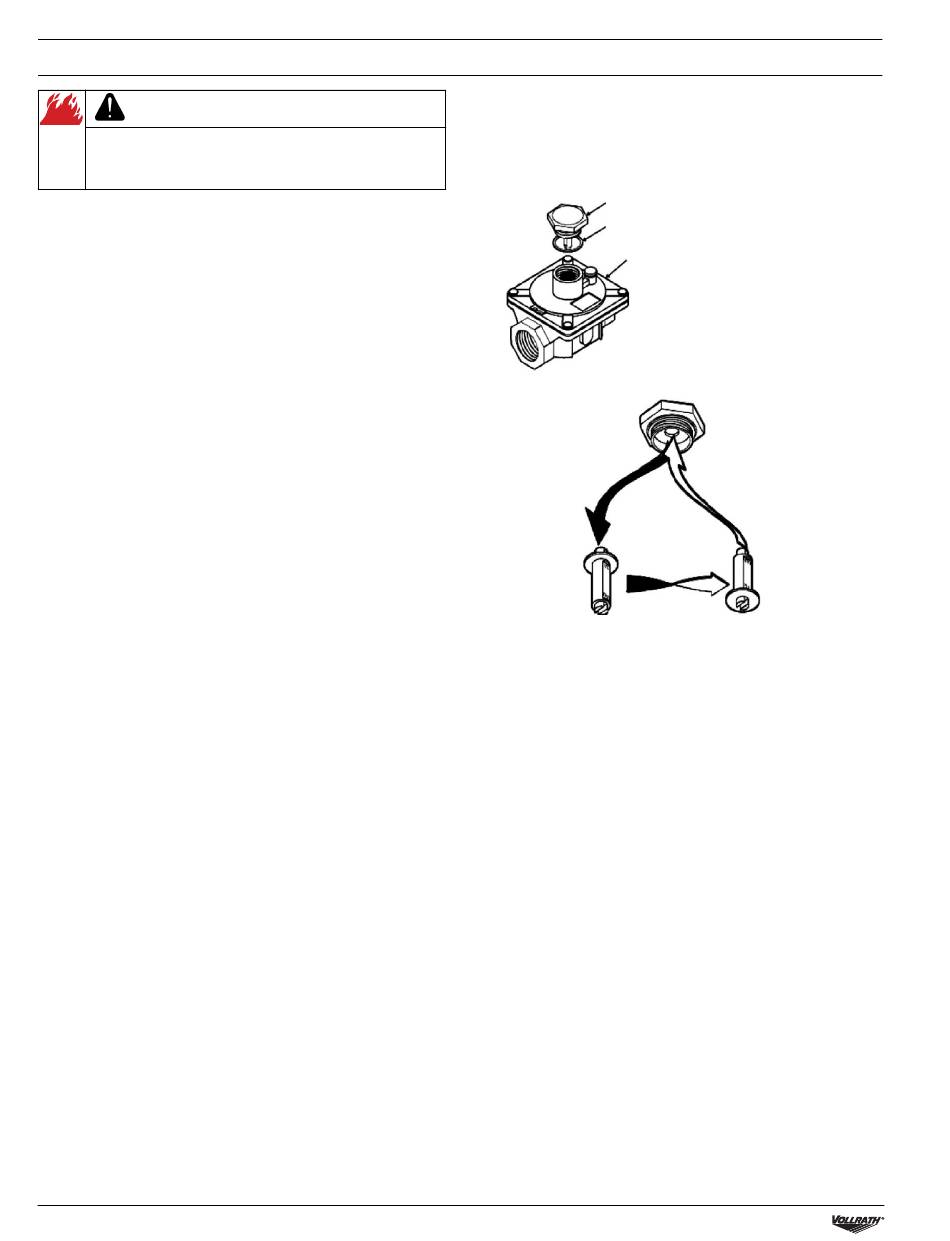

Conversion cap and regulator pin
Gasket
Regulator
2. Remove the regulator pin, invert, and reinsert.
Natural gas
3. Replace the conversion cap, taking care that the regulator pin and
the gasket are both properly seated.
L.P.
